ZEISS INSPECT App Python API documentation

Welcome to the ZEISS INSPECT Python API documentation. Here you can find a detailed documentation of a subset of the App programming specification. Please bear in mind, that recording commands with the script editor can be used to add new functions to your script.

Note

The module importing behavior changed with ZEISS INSPECT 2025. Previously, the API modules could be used without proper import statements due to their internal handling. Beginning with ZEISS INSPECT 2025, each module is a full featured native Python module and must be properly imported before use!

gom.api.addons

API for accessing the add-ons currently installed in the running software instance

This API enables access to the installed add-ons. Information about these add-ons can be queried, add-on files and resources can be read and if the calling instance is a member of one specific add-on, this specific add-on can be modified on-the-fly and during software update processes.

gom.api.addons.AddOn

Class representing a single add-on

This class represents a single add-on. Properties of that add-on can be queried from here.

gom.api.addons.AddOn.exists

gom.api.addons.AddOn.exists(path: str): bool

Check if the given file or directory exists in an add-on

API version:: 1
Parameters:: path (str) – File path as retrieved by ‘gom.api.addons.AddOn.get_file_list ()’
Returns:: ‘true’ if a file or directory with that name exists in the add-on
Return type:: bool

This function checks if the given file exists in the add-on

gom.api.addons.AddOn.get_content_list

gom.api.addons.AddOn.get_content_list(): list

Return the list of contents contained in the add-on

API version:: 1
Returns:: List of contents in that add-on (full path)
Return type:: list

gom.api.addons.AddOn.get_file

gom.api.addons.AddOn.get_file(): str

Return the installed add-on file

API version:: 1
Returns:: Add-on file path (path to the add-ons installed ZIP file) or add-on edit directory if the add-on is currently in edit mode.
Return type:: str

This function returns the installed ZIP file representing the add-on. The file might be empty if the add-on has never been ‘completed’. If the add-on is currently in edit mode, instead the edit directory containing the unpacked add-on sources is returned. In any way, this function returns the location the application uses, too, to access add-on content.

gom.api.addons.AddOn.get_file_list

gom.api.addons.AddOn.get_file_list(): list

Return the list of files contained in the add-on

API version:: 1
Returns:: List of files in that add-on (full path)
Return type:: list

This function returns the list of files and directories in an add-on. These path names can be used to read or write/modify add-on content.

Please note that the list of files can only be obtained for add-ons which are currently not in edit mode ! An add-on in edit mode is unzipped and the get_file () function will return the file system path to its directory in that case. That directory can then be browsed with the standard file tools instead.

Example

for addon in gom.api.addons.get_installed_addons():
  # Edited add-ons are file system based and must be accessed via file system functions
  if addon.is_edited():
    for root, dirs, files in os.walk(addon.get_file ()):
      for file in files:
        print(os.path.join(root, file))

  # Finished add-ons can be accessed via this function
  else:
    for file in addon.get_file_list():
      print (file)

gom.api.addons.AddOn.get_id

gom.api.addons.AddOn.get_id(): UUID

Return the unique id (uuid) of this add-on

API version:: 1
Returns:: Add-on uuid
Return type:: UUID

This function returns the uuid associated with this add-on. The id can be used to uniquely address the add-on.

gom.api.addons.AddOn.get_level

gom.api.addons.AddOn.get_level(): str

Return the level (system/shared/user) of the add-on

API version:: 1
Returns:: Level of the add-on
Return type:: str

This function returns the ‘configuration level’ of the add-on. This can be

‘system’ for pre installed add-on which are distributed together with the application
‘shared’ for add-ons in the public or shared folder configured in the application’s preferences or
‘user’ for user level add-ons installed for the current user only.

gom.api.addons.AddOn.get_name

gom.api.addons.AddOn.get_name(): str

Return the displayable name of the add-on

API version:: 1
Returns:: Add-on name
Return type:: str

This function returns the displayable name of the add-on. This is the human readable name which is displayed in the add-on manager and the add-on store.

gom.api.addons.AddOn.get_required_software_version

gom.api.addons.AddOn.get_required_software_version(): str

Return the minimum version of the ZEISS INSPECT software required to use this add-on

API version:: 1
Returns:: Addon version in string format
Return type:: str

By default, an add-on is compatible with the ZEISS INSPECT software version it was created in and all following software version. This is the case because it can be assumed that this add-on is tested with that specific software version, not with any prior version, leading to a minimum requirement. On the other hand, the software version where an add-on then later will break because of incompatibilities cannot be foreseen at add-on creation time. Thus, it is also assumed that a maintainer cares for an add-on and updates it to the latest software version if necessary. There cannot be a “works until” entry in the add-on itself, because this would require to modify already released version as soon as this specific version which breaks the add-on becomes known.

gom.api.addons.AddOn.get_script_list

gom.api.addons.AddOn.get_script_list(): list

Return the list of scripts contained in the add-on

API version:: 1
Returns:: List of scripts in that add-on (full path)
Return type:: list

gom.api.addons.AddOn.get_tags

gom.api.addons.AddOn.get_tags(): str

Return the list of tags with which the add-on has been tagged

API version:: 1
Returns:: List of tags
Return type:: str

This function returns the list of tags in the addons metainfo.json file.

gom.api.addons.AddOn.get_version

gom.api.addons.AddOn.get_version(): str

Return the version of the add-on

API version:: 1
Returns:: Add-on version in string format
Return type:: str

gom.api.addons.AddOn.has_license

gom.api.addons.AddOn.has_license(): bool

Return if the necessary licenses to use this add-on are present

API version:: 1

This function returns if the necessary licenses to use the add-on are currently present. Add-ons can either be free and commercial. Commercial add-ons require the presence of a matching license via a license dongle or a license server.

gom.api.addons.AddOn.is_edited

gom.api.addons.AddOn.is_edited(): bool

Return if the add-on is currently edited

API version:: 1
Returns:: ‘true’ if the add-on is currently in edit mode
Return type:: bool

Usually, an add-on is simply a ZIP file which is included into the applications file system. When an add-on is in edit mode, it will be temporarily unzipped and is then present on disk in a directory.

gom.api.addons.AddOn.is_protected

gom.api.addons.AddOn.is_protected(): bool

Return if the add-on is protected

API version:: 1
Returns:: Add-on protection state
Return type:: bool

The content of a protected add-on is encrypted. It can be listed, but not read. Protection includes both ‘IP protection’ (content cannot be read) and ‘copy protection’ (content cannot be copied, as far as possible)

gom.api.addons.AddOn.read

gom.api.addons.AddOn.read(path: str): bytes

Read file from add-on

API version:: 1
Parameters:: path (str) – File path as retrieved by ‘gom.api.addons.AddOn.get_file_list ()’
Returns:: Content of that file as a byte array
Return type:: bytes

This function reads the content of a file from the add-on. If the add-on is protected, the file can still be read but will be AES encrypted.

Example: Print all add-on ‘metainfo.json’ files

import gom
import json

for a in gom.api.addons.get_installed_addons ():
  text = json.loads (a.read ('metainfo.json'))
  print (json.dumps (text, indent=4))

gom.api.addons.AddOn.write

gom.api.addons.AddOn.write(path: str, data: bytes): None

Write data into add-on file

API version:

1

Parameters:

path (str) – File path as retrieved by ‘gom.api.addons.AddOn.get_file_list ()’
data (bytes) – Data to be written into that file

This function writes data into a file into an add-ons file system. It can be used to update, migrate or adapt the one add-on the API call originates from. Protected add-ons cannot be modified at all.

Important

An add-on can modify only its own content ! Access to other add-ons is not permitted. Use this function with care, as the result is permanent !

gom.api.addons.add_external_folder

gom.api.addons.add_external_folder(dir: str): bool

Register an external folder as a script source folder

API version:: 1
Parameters:: dir (str) – Absolute path to an existing directory to register as an external folder
Returns:: true if the directory was found and the symbolic link was created successfully; false if the path does not point to an existing directory or link creation failed
Return type:: bool

The folder is registered by creating a symbolic link in the user configuration directory. After registration, the content manager is updated and the folder’s App Contents are available to the application.

Example:

import gom

result = gom.api.addons.add_external_folder ('C:/my_scripts')
if result:
    print ('External folder registered successfully')
else:
    print ('Registration failed: directory may not exist')

gom.api.addons.get_addon

gom.api.addons.get_addon(id: UUID): gom.api.addons.AddOn

Return the add-on with the given id

API version:: 1
Parameters:: id (UUID) – Id of the add-on to get
Returns:: Add-on with the given id
Return type:: gom.api.addons.AddOn
Throws:: Exception if there is no add-on with that id

This function returns the add-on with the given id

Example:

addon = gom.api.addons.get_addon ('1127a8be-231f-44bf-b15e-56da4b510bf1')
print (addon.get_name ())
> 'AddOn #1'

gom.api.addons.get_current_addon

gom.api.addons.get_current_addon(): gom.api.addons.AddOn

Return the current add-on

API version:: 1
Returns:: Add-on the caller is a member of or None if there is no such add-on
Return type:: gom.api.addons.AddOn

This function returns the add-on the caller is a member of

Example:

addon = gom.api.addons.get_current_addon ()
print (addon.get_id ())
> d04a082c-093e-4bb3-8714-8c36c7252fa0

gom.api.addons.get_installed_addons

gom.api.addons.get_installed_addons(): list[gom.api.addons.AddOn]

Return a list of the installed add-ons

API version:: 1
Returns:: List of ‘AddOn’ objects. Each ‘AddOn’ object represents an add-on and can be used to query information about that specific add-on.
Return type:: list[gom.api.addons.AddOn]

This function can be used to query information of the add-ons which are currently installed in the running instance.

Example:

for a in gom.api.addons.get_installed_addons ():
  print (a.get_id (), a.get_name ())

gom.api.addons.remove_external_folder

gom.api.addons.remove_external_folder(dir: str): bool

Unregister a previously registered external folder

API version:: 1
Parameters:: dir (str) – Absolute path or base name of the external folder to unregister
Returns:: true if a matching symbolic link was found and removed successfully; false if no registered folder with that name exists
Return type:: bool

Removes the symbolic link for the given folder from the user configuration directory. After removal, the content manager is updated and the folder’s App Contents are no longer available to the application.

Example:

import gom

result = gom.api.addons.remove_external_folder ('C:/my_scripts')
if result:
    print ('External folder unregistered successfully')
else:
    print ('Unregistration failed: folder was not registered')

gom.api.contributions

API for accessing the registered contributions (semantic extensions)

This API enables access to the registered semantic extensions, called ‘contributions’. Each contribution is a service based feature which extends an aspect of ZEISS INSPECT. The ‘scripted inspection’ contribution, for example, extends the inspection elements, while the ‘scripted views’ contribution extends the view system of ZEISS INSPECT.

gom.api.contributions.Contribution

Class representing a single semantic contribution

This class represents a semantic contribution. The properties of that contribution can be read and the contribution can be administered via that handle.

gom.api.contributions.Contribution.get_category

gom.api.contributions.Contribution.get_category(): str

Return contribution category

API version:: 1
Returns:: Contribution category
Return type:: str

The contribution category determines the type of the contribution or to which semantic concept of ZEISS INSPECT the contribution belongs to. If, for example, the contribution extends the view system of ZEISS INSPECT, the category is ‘customviews’.

gom.api.contributions.Contribution.get_description

gom.api.contributions.Contribution.get_description(): str

Return human readable contribution name, as used in the UI

API version:: 1
Returns:: Human readable contribution name
Return type:: str

gom.api.contributions.Contribution.get_endpoint

gom.api.contributions.Contribution.get_endpoint(): str

Return service endpoint this contribution belongs to

API version:: 1
Returns:: Service endpoint
Return type:: str

As all contributions are service based, this function returns the service endpoint of the service the contribution belongs to.

gom.api.contributions.Contribution.get_id

gom.api.contributions.Contribution.get_id(): str

unique contribution id

API version:: 1
Returns:: Unique contribution id which can be used to identify the contribution, e.g. in script commands
Return type:: str

gom.api.contributions.get_contributions

gom.api.contributions.get_contributions(): [gom.api.contributions.Contribution]

Return the list of all registered contributions

API version:: 1
Returns:: The list of all registered contributions
Return type:: [gom.api.contributions.Contribution]

This function returns the list of registered contributions

Example:

import gom.api.contributions

for c in gom.api.contributions.get_contributions ():
  print (c.get_id (), c.get_description ())

gom.api.custom_checks_util

Tool functions for custom checks

gom.api.custom_checks_util.is_curve_checkable

gom.api.custom_checks_util.is_curve_checkable(element: gom.Object): bool

Checks if the referenced element is suitable for inspection with a curve check

API version:: 1
Parameters:: element (gom.Object) – Element reference to check
Returns:: ‘true’ if the element is checkable like a curve
Return type:: bool

This function checks if the given element can be inspected like a curve in the context of custom elements. Please see the custom element documentation for details about the underlying scheme.

gom.api.custom_checks_util.is_scalar_checkable

gom.api.custom_checks_util.is_scalar_checkable(element: gom.Object): bool

Checks if the referenced element is suitable for inspection with a scalar check

API version:: 1
Parameters:: element (gom.Object) – Element reference to check
Returns:: ‘true’ if the element is checkable like a scalar value
Return type:: bool

This function checks if the given element can be inspected like a scalar value in the context of custom elements. Please see the custom element documentation for details about the underlying scheme.

gom.api.custom_checks_util.is_surface_checkable

gom.api.custom_checks_util.is_surface_checkable(element: gom.Object): bool

Checks if the referenced element is suitable for inspection with a surface check

API version:: 1
Parameters:: element (gom.Object) – Element reference to check
Returns:: ‘true’ if the element is checkable like a surface
Return type:: bool

This function checks if the given element can be inspected like a surface in the context of custom elements. Please see the custom element documentation for details about the underlying scheme.

gom.api.customelements

API for handling custom elements

This API defines various functions for handling custom elements (actuals, inspections, nominal, diagrams, …) It is used mostly internally by the custom element framework.

gom.api.customelements.get_dimension_definition

gom.api.customelements.get_dimension_definition(typename: str): Any

Return information about the given dimension

Parameters:: name – Name of the dimension
Returns:: Dictionary with relevant dimension information or an empty dictionary if the name does not refer to a dimension
Return type:: Any

A physical dimension (or just “dimension”) refers to the fundamental nature of what is measured - like length, time, mass, temperature, angle, etc. These represent the qualitative aspect of measurement. This is different from a unit: Unit refers to the specific standard of measurement used to quantify that dimension - like meter, millimeter, inch for length; or degree, radian for angle.

gom.api.customelements.get_dimensions

gom.api.customelements.get_dimensions(): [str]

Return available dimensions

Returns:: List of known dimensions
Return type:: [str]

gom.api.customelements.get_element_from_id

gom.api.customelements.get_element_from_id(element_id: str): Any

Convert an internal id into a script element reference

Parameters:: element_id (str) – Internal id of the element to convert, usually a uuid
Returns:: Script element reference
Return type:: Any
Throws:: std::runtime_error if the element id is unknown

This function is used to convert ids which are representing elements into script element references which can be used in the scripting environment. It is used for internal purposes only and should be used with care. For example, in custom sequences, the child elements of a leading sequence element are stored by their internal ids, in principle uuids. So when the child elements of a leading element are requested, the internal framework can use this function to convert the stored ids into script element references.

gom.api.customelements.get_id_for_element

gom.api.customelements.get_id_for_element(element: Any): str

Return internal id of the given element

Parameters:: element (Any) – Element reference
Returns:: Id of this element
Return type:: str

gom.api.customelements.get_inspection_definition

gom.api.customelements.get_inspection_definition(typename: str): Any

Return information about the given custom element type

Parameters:: type_name – Type name of the inspection to query
Returns:: Dictionary with relevant type information or an empty dictionary if the type is unknown
Return type:: Any

This function queries in internal ‘scalar registry’ database for information about the inspection with the given type.

gom.api.customelements.get_instructions

gom.api.customelements.get_instructions(element: Any): Any

Return recalculation instructions/commands for the given element

Parameters:: element (Any) – Element to query
Returns:: Recalculation instructions
Return type:: Any

This function queries the recalculations instructions (commands) which are executed to recalc an element.

gom.api.diagram.get_element_data

gom.api.diagram.get_element_data(element_property: str): dict

Collect Element render data for a set of diagram views

Parameters:: element_properties – Optional element_property for identifying element data to be collected
Returns:: QVariantMap containing collected element and view data
Return type:: dict

gom.api.dialog

API for handling dialogs

This API is used to create and execute script based dialogs. The dialogs are defined in a JSON based description format and can be executed server side in the native UI style.

gom.api.dialog.create

gom.api.dialog.create(context: Any, url: str): Any

Create modal dialog, but do not execute it yet

Parameters:

context (Any) – Script execution context
url (str) – URL of the dialog definition (*.gdlg file)

Returns:

Dialog handle which can be used to set up the dialog before executing it

Return type:

Any

This function creates a dialog. The dialog is passed in an abstract JSON description defining its layout. The dialog is created but not executed yet. The dialog can be executed later by calling the ‘gom.api.dialog.show’ function. The purpose of this function is to create a dialog in advance and allow the user setting it up before

This function is part of the scripted contribution framework. It can be used in the scripts ‘dialog’ functions to pop up user input dialogs, e.g. for creation commands. Passing of the contributions script context is mandatory for the function to work.

\attention This function is not enabled outside of the custom elements scripted contribution framework.

gom.api.dialog.execute

gom.api.dialog.execute(context: Any, url: str): Any

Create and execute a modal dialog

Parameters:

context (Any) – Script execution context
url (str) – URL of the dialog definition (*.gdlg file)

Returns:

Dialog input field value map. The dictionary contains one entry per dialog widget with that widgets current value.

Return type:

Any

This function creates and executes a dialog. The dialog is passed in an abstract JSON description and will be executed modal. The script will pause until the dialog is either confirmed or cancelled.

This function is part of the scripted contribution framework. It can be used in the scripts ‘dialog’ functions to pop up user input dialogs, e.g. for creation commands. Passing of the contributions script context is mandatory for the function to work.

\attention This function is not enabled outside of the custom elements scripted contribution framework.

gom.api.dialog.show

gom.api.dialog.show(context: Any, dialog: Any): Any

Show previously created and configured dialog

Parameters:

context (Any) – Script execution context
dialog (Any) – Handle of the previously created dialog

Returns:

Dialog input field value map. The dictionary contains one entry per dialog widget with that widgets current value.

Return type:

Any

This function shows and executes previously created an configured dialog. The combination of ‘create’ and ‘show’ in effect is the same as calling ‘execute’ directly.

gom.api.experimental

API for experimental functionality

This API is experimental and can change at any time.

gom.api.experimental.create_dialog

gom.api.experimental.create_dialog(url: str): Any

Create a dialog, but do not execute it yet

Parameters:: url (str) – URL of the dialog definition (*.gdlg file)
Returns:: Dialog handle which can be used to set up the dialog before executing it
Return type:: Any

gom.api.expressions

General-purpose expression language metadata API

This module provides access to the ZEISS INSPECT expression language primitives — symbols, functions, element-level tokens, and cache management — independently of any specific UI component. It can be used from table editors, formula bars, dialog widgets, diagram views, or any other context that needs to enumerate what can be typed into an expression field.

Example:

import gom.api.expressions

# List symbols (GPS, Greek, Math, ...)
symbols = gom.api.expressions.get_symbols()

# List built-in functions (abs, sin, if, ...)
functions = gom.api.expressions.get_functions()

# List tokens available on a specific element
import gom.api.selection
selected = gom.api.selection.get_selected_elements()
tokens = gom.api.expressions.get_tokens(selected[0])

# Clear the expression evaluation cache (for debugging)
gom.api.expressions.clear_expression_cache()

gom.api.expressions.clear_expression_cache

gom.api.expressions.clear_expression_cache(): None

Clear the expression cache

API version:: 1

This function clears the expression cache maintained by the expression system. It is meant to be for debugging purposes. The expression cache is used to speed up repeated evaluations of the same expressions in labels, tables, auto names, … and should usually be left alone, as it handles itself autonomously. For debugging tasks it can be useful to clear the cache to force re-evaluation of expressions nevertheless.

gom.api.expressions.get_functions

gom.api.expressions.get_functions(): dict

Return all available global built-in expression functions grouped by category.

Returns:: Dictionary with key “categories” → list of category objects, each with “name” (str) and “functions” (list).
Return type:: dict

Returns a dictionary with a “categories” key containing an ordered list of function categories. Each category entry has a “name” (translated, human-readable) and a “functions” list. Each function entry contains:

name: the function identifier as used in expressions (e.g. “abs”)
description: a short human-readable description
template: a ready-to-insert call template (e.g. “abs (VALUE)”)

Internal, obsolete, and vendor-specific functions are excluded.

gom.api.expressions.get_symbols

gom.api.expressions.get_symbols(): dict

Return all expression symbols grouped by category.

Returns:: Dict with key “categories” → list of category objects, each with “name” (str) and “symbols” (list).
Return type:: dict

Returns symbols that can be inserted into any expression field, organized into four categories:

GPS (GD&T tolerance symbols)
Greek alphabet
Mathematical symbols
Other (currency, arrows, typographic characters, etc.)

Each symbol entry contains:

“token” (str) — the expression token string, e.g. “TOM_SYMBOL_GPS_STRAIGHTNESS”
“description” (str) — translated display name
“glyph” (str) — Unicode glyph character(s) for visual rendering (empty for GPS symbols that require a proprietary font)

gom.api.expressions.get_tokens

gom.api.expressions.get_tokens(element: Any): dict

Return all expression tokens available for the given element, grouped by category.

Parameters:: element (Any) – Any project element reference (e.g. from the return value of gom.api.selection.get_selected_elements() or gom.api.customelements.get_element_from_id()).
Returns:: Dict with keys “categories” and “data_array_categories”.
Return type:: dict

Accepts any project element reference and returns the tokens that can be inserted into expression fields (formula bars, table cells, diagram captions, etc.) for that element. Two token sources are provided:

Element-level tokens (e.g. name, measurement results, tolerances)
Data-array tokens (e.g. point cloud coordinates, normals) Internal and icon tokens are excluded in both cases.

The returned dict has two keys:

“categories” — ordered list of element-level token categories (shown as “Keywords” in expression editors).
“data_array_categories” — ordered list of data-array token categories (shown as “Data arrays” in expression editors).

Each category entry has:

“name” (str) — translated category label (e.g. “Element info”, “Results”)
“tokens” (list) — list of token entries, each with:
“token” (str) — raw token expression string (e.g. “result_worst_case”)
“label” (str) — human-readable display name
“has_index” (bool) — whether the token supports [n] index notation
“sub_tokens” (list) — optional; for tokens with dot-notation sub-attributes (e.g. “application_build_information.version”). Each sub-token entry has “token”, “label”, “has_index”.

Returns empty category lists when the element is invalid or has no available tokens.

Example usage in Python:

import gom.api.expressions
import gom.api.selection

selected = gom.api.selection.get_selected_elements()
if selected:
    tokens = gom.api.expressions.get_tokens(selected[0])
    for category in tokens['categories']:
        print(category['name'])
        for t in category['tokens']:
            print(' ', t['token'], '-', t['label'])

gom.api.extensions

API for script based functionality extensions

This API enables the user to define custom element types that extend the functionality of ZEISS INSPECT. Custom elements are fully user-defined: their configuration, computation, and visualization are implemented entirely in Python. They integrate seamlessly into the application’s element model, appearing in menus, the explorer, labels, reports, and the 3D view just like built-in elements.

Architecture overview

The custom element system is organized as a class hierarchy of base classes. Each category of custom element inherits from one of the base classes in this module:

CustomElement                           Base for all custom elements (dialog, event, visibility)
├── CustomCalculationElement            Adds computation lifecycle (compute, stages)
│   ├── actuals.CustomActual            Custom actual element types (Point, Surface, PointCloud, …)
│   ├── nominals.CustomNominal          Custom nominal element types (Point, Surface, …)
│   └── inspections.CustomInspection    Custom inspection/check types (Scalar, Surface, Curve)
└── sequence.CustomSequence             Groups multiple elements into one editable sequence

CustomDiagram                           Transforms element data for diagram rendering
├── diagrams.SVGDiagram                 SVG-based interactive diagram
└── diagrams.CustomDiagramView          Diagram integrated in the custom view framework

Each category has its own submodule (gom.api.extensions.actuals, gom.api.extensions.nominals, etc.) with concrete element classes that define the expected compute() return value format for each geometry type.

Lifecycle of a custom calculation element

The lifecycle of a custom calculation element (actual, nominal, or inspection) follows these steps:

Registration — The element class is registered as a contribution using the @apicontribution decorator and gom.run_api(). This makes it available in the ZEISS INSPECT menus.
Dialog — When the user creates or edits an element, dialog() is called. It displays a configuration dialog and returns the user’s input as a parameter dictionary.
Compute — After dialog confirmation (and during recalculation), compute_stage() is called for each stage. The function receives the dialog values and returns the computed result (e.g., a point coordinate, a surface mesh, or inspection deviations).
Event — While the dialog is open, event() is called on UI changes (widget value changed, dialog initialized). Returning True triggers a preview recomputation.
Storage — The returned result dictionary is stored in the project file. The keys are element-type specific (e.g., 'value' for a point, 'vertices'/'triangles' for a surface). An optional 'data' key stores arbitrary custom data alongside the element.

Minimal example

A simple custom actual point element can be defined as follows::

import gom
import gom.api.extensions.actuals
from gom import apicontribution

@apicontribution
class MyPoint(gom.api.extensions.actuals.Point):

    def __init__(self):
        super().__init__(id='example.my_point', description='My Custom Point')

    def dialog(self, context, args):
        return self.show_dialog(context, args, '/dialogs/my_point.gdlg')

    def compute_stage(self, context, values):
        return {
            'value': (
                float(values['x']),
                float(values['y']),
                float(values['z'])
            )
        }

gom.run_api()

The element class inherits from gom.api.extensions.actuals.Point, which sets the correct category and element type automatically. The dialog() method uses the built-in show_dialog() helper to display a .gdlg dialog file and return the values. The compute_stage() method computes a 3D point from the dialog values and returns it in the format expected by the Point type.

Element categories

The following categories are available for custom calculation elements:

Actuals (gom.api.extensions.actuals): Computed elements based on measurement data or algorithms (Point, Distance, Circle, Cone, Cylinder, Plane, ValueElement, Curve, SurfaceCurve, Section, ProbeMeasuredCurve, PointCloud, Surface, SurfaceDefects, Volume, VolumeDefects, VolumeDefects2d, …)
Nominals (gom.api.extensions.nominals): Reference/target geometry elements (Point, Distance, Circle, Cone, Cylinder, Plane, ValueElement, Curve, SurfaceCurve, Section, PointCloud, Surface)
Inspections (gom.api.extensions.inspections): Check elements that compare actual vs. nominal (Scalar, Surface, Curve). Inspections require a target_element and use physical dimensions and units.
Sequences (gom.api.extensions.sequence): Grouped element creation that bundles multiple elements into one editable unit.
Diagrams (gom.api.extensions.diagrams): Custom diagram renderers for visualizing element data (SVGDiagram, CustomDiagramView).

Each concrete element class documents the expected return value format of its compute() function.

gom.api.extensions.CustomCalculationElement

This class is used to define a custom calculation element which computes its own data. It is used as a base class for custom actuals, nominals, and checks.

Custom calculation elements extend CustomElement with a computation lifecycle: the element receives input values from the dialog and produces a result dictionary. The application stores this result in the project file and uses it for visualization, reporting, and further calculations.

Subclasses

Do not inherit from CustomCalculationElement directly. Instead, use one of the concrete subclasses:

actuals.CustomActual and its element classes (actuals.Point, actuals.Surface, …)
nominals.CustomNominal and its element classes (nominals.Point, nominals.Surface, …)
inspections.CustomInspection and its element classes (inspections.Scalar, inspections.Surface, inspections.Curve)

Each of these classes sets the correct category and element type automatically and documents the expected return value format.

Computation methods

This class provides three computation methods with different levels of control:

compute_stage(context, values): Recommended for new implementations. Computes the result for a single stage. Override this method in your element class. The default implementation delegates to compute() for backward compatibility.
compute(context, values): Legacy single-stage method. Kept for backward compatibility with older implementations. New code should override compute_stage() instead.
compute_stages(context, values): Computes results for all stages at once. The default implementation iterates over all stages and calls compute_stage() for each one. Override this method only if you need bulk computation across stages for performance reasons (e.g., vectorized NumPy operations).

Working with stages

Each custom element must be computed for one or more stages. In the case of a preview or for simple project setups, computation is usually done for a single stage only. In case of a recalc, computation for many stages is usually required. To support both cases and keep it simple for beginners, the custom elements are using two computation functions:

compute_stage(): Computes the result for one single stage only. If nothing else is implemented, this function will be called for each stage one by one and return the computed value for that stage only. The stage for which the computation is performed is passed via the function’s script context, but does usually not matter as all input values are already associated with that single stage.
compute_stages(): Computes the results for many (all) stages at once. The value parameters are always vectors of the same size, one entry per stage. This is the case even if there is just one stage in the project. The result is expected to be a result vector of the same size as these stage vectors. The script context passed to that function will contain a list of stages of equal size matching the value’s stage ordering.

So for a project with stages, it is usually sufficient to just implement compute_stage(). For increased performance or parallelization, compute_stages() can then be implemented as a second step.

Example for a simple single-stage computation:

def compute_stage (self, context, values):
    x = float(values['x'])
    y = float(values['y'])
    z = float(values['z'])
    return {'value': (x, y, z)}

Example for a bulk multi-stage computation (advanced):

def compute_stages (self, context, values):
    # 'values' contains one entry per stage for each widget.
    # Process all stages at once for performance.
    results = []
    states = []
    for stage in context.stages:
        context.stage = stage
        try:
            results.append({'value': (float(values['x']), float(values['y']), float(values['z']))})
            states.append(True)
        except Exception as e:
            results.append((str(e), traceback.format_exc()))
            states.append(False)
        finally:
            context.stage = None
    return {'results': results, 'states': states}

Stage indexing

Stages are represented by an integer index. No item reference or other resolvable types like gom.script.project[...].stages['Stage #1'] are used because it is assumed that reaching over stage borders into other stages’ data domain will lead to incorrect or missing dependencies. Instead, if vectorized data or data tensors are fetched, the stage sorting within that object will match that stages vector in the context. In the best case, the stage vector is just a consecutive range of numbers (0, 1, 2, 3, ...) which match the index in a staged tensor. Nevertheless, the vector can be numbered entirely different depending on active/inactive stages, stage sorting, …

Caution

Usually, it is not possible to access arbitrary stages of other elements due to recalc restrictions !

gom.api.extensions.CustomCalculationElement.init

gom.api.extensions.CustomCalculationElement.__init__(self: Any, id: str, category: str, description: str, element_type: str, callables: Any, properties: Any): None

Parameters:

id (str) – Unique contribution id, like special_point
category (str) – Custom element type id, like customelement.actual
description (str) – Human readable contribution description
element_type (str) – Type of the generated element (point, line, …)
category – Contribution category

Constructor

gom.api.extensions.CustomCalculationElement.compute

gom.api.extensions.CustomCalculationElement.compute(self: Any, context: Any, values: Any): None

Parameters:

context (Any) – Script context object containing execution related parameters. This includes the stage this computation call refers to.
values (Any) – Dialog widget values as a dictionary. The keys are the widget names as defined in the dialog definition.

Legacy single-stage computation function. Kept for backward compatibility.

New implementations should override compute_stage () instead. This function is called by the default implementation of compute_stage () if that method is not overridden.

gom.api.extensions.CustomCalculationElement.compute_stage

gom.api.extensions.CustomCalculationElement.compute_stage(self: Any, context: Any, values: Any): None

Parameters:

context (Any) – Script context object containing execution related parameters. This includes the stage this computation call refers to.
values (Any) – Dialog widget values as a dictionary. The keys are the widget names as defined in the dialog definition.

This function is called when a single stage value is to be computed. The input values from the associated dialog function are passed as kwargs parameters - one value as one specific parameter named as the associated input widget.

By default, this function delegates to compute () for backward compatibility with older implementations. Override this method in new implementations instead of compute ().

gom.api.extensions.CustomCalculationElement.compute_stages

gom.api.extensions.CustomCalculationElement.compute_stages(self: Any, context: Any, values: Any): None

Parameters:

context (Any) – Script context object containing execution related parameters. This includes the stage this computation call refers to.
values (Any) – Dialog widget values as a dictionary.

This function is called to compute multiple stages of the custom element. The expected result is a vector of the same length as the number of stages.

The function is calling the compute () function of the custom element for each stage by default. For a more efficient implementation, it can be overwritten and bulk compute many stages at once.

gom.api.extensions.CustomElement

Base class for all custom elements

This class is the base class for all custom element types. A custom element is a user-defined element type where configuration and computation are happening entirely in a Python script, so user-defined behavior and visualization can be implemented.

Custom elements are registered as contributions using the @apicontribution decorator. Each element is instantiated once at service startup. The ZEISS INSPECT application then calls the element’s methods as needed: dialog() for interactive configuration, compute_stage() for result computation, and event() for UI state changes during dialog interaction.

Class hierarchy

CustomElement is the root of the custom element hierarchy. It provides the dialog, event handling, and visibility infrastructure that all custom elements share. The following subclasses extend it for specific purposes:

CustomCalculationElement: Adds a computation lifecycle with stage support. This is the base for all elements that produce computed results (actuals, nominals, inspections).
sequence.CustomSequence: Groups multiple element creation commands into one editable sequence.

Concrete element types (e.g., actuals.Point, inspections.Scalar) further specialize these base classes and define the expected compute() return value format.

Element id

Every element must have a unique id. It is left to the implementer to avoid inter app conflicts here. The id can be hierarchical like company.topic.group.element_type. The id may only contain lower case characters, grouping dots and underscores.

Element category

The category of an element type is used to find the application side counterpart which cares for the functionality implementation. For example, customelement.actual links that element type the application counterpart which cares for custom actual elements and handles its creation, editing, administration, …

Storing custom element data

In principle, each custom element type consists of functions which will get input via function parameters and generate output by returning a value, usually a dictionary object with named entries. For example, if a custom nominal command creates a nominal point, the compute () function could return a dictionary like this:

{
    'position': (x, y, z),
    'normal':   (nx, ny, nz)
}

This is defined in details with the respective element type documentation. The returned values are then stored in the project file and belong to the element. The keys of the returned dictionary are the data keys which are fixed for each element type and element specific.

In addition to these fixed data keys, each custom element can also store custom data entries. These entries are not predefined by the element type, but can be freely defined by the custom element implementation. This is not a function result, it is more like an additional data storage which is associated with the element instance, for example for caching intermediate results, storing additional metadata, … Thus, custom element data is accessed via the context object passed to each function. The context custom data is staged, so each stage has its own custom data storage, and the current stage is always the one used for data access. Also, the type written into the context.data field has to be a dictionary. Each entry in that dictionary is then stored as a separate custom data entry for the element and can be accessed via “element tokens” in scripts afterwards.

Example:

def compute (self, context, values):
    # Access custom data for the current stage.
    if 'intermediate_result' in context.data:
        intermediate_result = context.data['intermediate_result']

    else:
        # Compute intermediate result and write it to custom data for later reuse.
        # The type is arbitrary, as long as it is serializable. Using a dictionary here
        # is usually a good choice.
        intermediate_result = ... # Compute intermediate result
        context.data = {'intermediate_result': intermediate_result,
                        'computed': True}

    # Compute final result
    result = ...
    return result

When a custom element has custom data set, these data entries can be accessed in scripts via element tokens.

Example:

element = gom.script.project['Parts']['Part 1'].elements['My custom element']
intermediate_result = element.intermediate_result # Token name matches custom data key

The size of the data storage is not limited, but it should be kept in mind that all data must be serialized and stored in the project file. Therefore, large data structures should be avoided here. Also, calls to context.data can be relatively expensive due to serialization and deserialization, so frequent access should be avoided. Also, extremely large data structures may not be storable at all due to internal limits.

The custom data can be cleared per stage by setting an empty dictionary to context.data = {}.

For a more structured way or returning custom data, the result of the compute () function can also contain a special data entry. This entry must be a dictionary and will be stored as custom data for that element and stage. This is a more explicit way of returning custom data compared to using the context.data field. Example:

def compute (self, context, values):
    # Compute final result
    result = ...

    # Return custom data as part of the result
    custom_data = {
        'intermediate_result': ... # Some computed intermediate result
    }

    result['data'] = custom_data

    return result

When a new custom data set is set, either via context.data or via the data entry in the result, all previous custom data entries for that stage are cleared and the whole new data set is stored instead.

gom.api.extensions.CustomElement.Attribute

Attributes used in the dialog definition

The attributes are used to define the dialog widgets and their behavior. A selected set of these attributes are listed here as a central reference and for unified constant value access.

gom.api.extensions.CustomElement.Event

Event types passed to the event () function

DIALOG_INITIALIZE: Sent when the dialog has been initialized and made visible
DIALOG_CHANGED: A dialog widget value changed

gom.api.extensions.CustomElement.WidgetType

(Selected) widget types used in the dialog definition

The widget types are used to define the dialog widgets and their behavior. A selected set of these widget types are listed here as a central reference and for unified constant value access.

gom.api.extensions.CustomElement.init

gom.api.extensions.CustomElement.__init__(self: Any, id: str, category: str, description: str, callables: Any, properties: Any): None

Parameters:

id (str) – Unique contribution id, like special_point
category (str) – Custom element category id, like customelement.actual
description (str) – Human readable contribution description

Constructor

gom.api.extensions.CustomElement._dialog_callable

gom.api.extensions.CustomElement._dialog_callable(self: Any, context: Any, args: Any): None

Parameters:

context (Any) – Script context object.
args (Any) – Dialog execution arguments (version, name, values, …).

Returns:

The result of dialog(), or args unchanged when dialog() returns None.

Return type:

None

Internal wrapper that calls the user-defined dialog() method and handles a None return value.

When a contribution overrides dialog() with pass (or otherwise returns None), it signals “no interactive dialog needed — proceed with the input arguments unchanged.” The C++ side requires a valid QVariantMap as the dialog result, so returning None would cause a type-conversion error. This wrapper converts None transparently into the unmodified input args, preserving the “no dialog” semantic without breaking the C++/Python contract.

gom.api.extensions.CustomElement.add_diagram_data

gom.api.extensions.CustomElement.add_diagram_data(self: Any, diagram_data: List, diagram_id: str, service_id: str, element_data: Dict[str, Any]): None

Parameters:

diagram_data (List) – List that the data entry is appended to
diagram_id (str) – Id of the diagram the data is passed to (i.e. SVGDiagram)
service_id (str) – Service id of the diagram contribution
element_data (Dict[str, Any]) – Data that is provided to the diagram

Adds a diagram data entry to a list provided as an input parameter

gom.api.extensions.CustomElement.add_log_message

gom.api.extensions.CustomElement.add_log_message(self: Any, context: Any, level: Any, message: Any): None

Parameters:

context (Any) – Script context object containing execution related parameters.
level (Any) – Log level
message (Any) – Log message to be added

Add a log message to the service log. The message will be logged with the given level and appear in the service log file. It is used to forward errors from the C++ side to the Python side.

gom.api.extensions.CustomElement.add_view_data

gom.api.extensions.CustomElement.add_view_data(self: Any, view_data: List, element_property: str, element_data: Dict[str, Any]): None

Parameters:

view_data (List) – List that the data entry is appended to
element_property (str) – String that corresponds to the properties accepted by diagram view(s)
element_data (Dict[str, Any]) – Data that is provided to the diagram view(s)

Adds a diagram view data entry to a list provided as an input parameter

gom.api.extensions.CustomElement.apply_dialog

gom.api.extensions.CustomElement.apply_dialog(self: Any, dlg: Any, result: Any): None

Parameters:

dlg (Any) – Dialog handle as created via the gom.api.dialog.create () function
result (Any) – Dialog result values as returned from the gom.api.dialog.show () function.

Returns:

Resulting dialog parameters

Return type:

None

Apply dialog values to the dialog arguments. This function is used to read the dialog values back into the dialog arguments. See function dialog () for a format description of the arguments.

In its default implementation, the function performs the following tasks:

The dialog result contains values for all dialog widgets, including spacers, labels and other displaying only widgets. These values are not directly relevant for the dialog arguments and are removed.
The name of the created element must be treated in a dedicated way. So the dialog results are scanned for an entry named name which originates from an element name widget. If this argument is present, it is assumed that it configured the dialog name, is removed from the general dialog result and passed as a special name result instead.
The tolerance values are also treated in a dedicated way. If a dialog tolerance widget with the name tolerance is present, its value is extracted and included in the final result.

So the dialog result parameters can look like this:

{'list': 'one', 'list_label': None, 'threshold': 1.0, 'threshold_label': None, 'name' :'Element 1', 'name_label': None}

This will be modified into a format which can be recorded as a script element creation command parameter set:

{'name': 'Element 1', 'values': {'list': 'one', 'threshold': 1.0}}

This function can be overloaded if necessary and if the parameters must be adapted before being applied:

def apply_dialog (self, dlg, result):
    params = super ().apply_dialog (dlg, result)
    # ... Adapt parameters...
    return params

For example, if a check should support tolerances, the dialogs tolerance widget value must be present in a parameter called ‘tolerance’. So the apply_dialog() function can be tailored like this for that purpose:

def apply_dialog (self, dlg, result):
    params = super ().apply_dialog (dlg, result)

    params['name'] = dlg.name.value            # Read result directly from dialog object
    params['tolerance'] = result['tolerance']  # Apply result from dialog result dictionary

    return params

This will result in a dictionary with the parameters which are then used in the elements creation command. When recorded, this could look like this:

gom.script.customelements.create_actual (name='Element 1', values={'mode': 23, 'threshold': 1.0}, tolerance={'lower': -0.5, 'upper': +0.5})

The values part will be directly forwarded to the elements custom compute () function, which the name and tolerance parameters are evaluated by the ZEISS INSPECT framework to apply the necessary settings automatically.

gom.api.extensions.CustomElement.check_list

gom.api.extensions.CustomElement.check_list(self: Any, values: Dict[str, Any], key: str, expected: type, length: int): None

Parameters:

values (Dict[str, Any]) – Dictionary of values
key (str) – Key of the value to check
value_type – Type each of the values is expected to have
length (int) – Number of values expected in the tuple or ‘None’ if any length is allowed

Check tuple result for expected properties

gom.api.extensions.CustomElement.check_target_element

gom.api.extensions.CustomElement.check_target_element(self: Any, values: Dict[str, Any]): None

Check if a base element (an element the custom element is constructed upon) is present in the values map

gom.api.extensions.CustomElement.check_value

gom.api.extensions.CustomElement.check_value(self: Any, values: Dict[str, Any], key: str, expected: type): None

Parameters:

values (Dict[str, Any]) – Dictionary of values
key (str) – Key of the value to check
value_type – Type the value is expected to have

Check a single value for expected properties

gom.api.extensions.CustomElement.dialog

gom.api.extensions.CustomElement.dialog(self: Any, context: Any, args: Any): None

Parameters:

context (Any) – Script context object containing execution related parameters.
args (Any) – Dialog execution arguments. This is a JSON like map structure, see above for the specific format.

Returns:

Modified arguments. The same args object is returned, but must be modified to reflect the actual dialog state.

Return type:

None

This function is called to create the dialog for the custom element. The dialog is used to configure the element and to provide input values for the computation.

The dialog arguments are passed as a JSON like map structure. The format is as follows:

{
    "version": 1,
    "name": "Element 1",
    "values": {
        "widget1": value1,
        "widget2": value2
        ...
    }
}

version: Version of the dialog structure. This is used to allow for future changes in the dialog structure without breaking existing scripts
name: Human readable name of the element which is created or edited. This entry is inserted automatically from the dialog widget if two conditions are met: The name of the dialog widget is ‘name’ and its type is ‘Element name’. So in principle, the dialog must be setup to contain an ‘Element name’ widget named ‘name’ in an appropriate layout location and the rest then happens automatically.
values: A map of widget names and their initial values. The widget names are the keys and the values are the initial or edited values for the widgets. This map is always present, but can be empty for newly created elements. The keys are matching the widget names in the user defined dialog, so the values can be set accordingly. As a default, use the function initialize_dialog (context, dlg, args) to setup all widgets from the args values.

The helper functions initialize_dialog () and apply_dialog () can be used to initialize the dialog directly and read back the generated values. So a typical dialog function will look like this:

def dialog (self, context, args):
    dlg = gom.api.dialog.create (context, '/dialogs/create_element.gdlg')
    self.initialize_dialog (context, dlg, args)
    args = self.apply_dialog (dlg, gom.api.dialog.show (context, dlg))
    return args

The dlg object is a handle to the dialog which can be used to access the dialog widgets and their values. For example, if a selection element with user defined filter function called element is member of the dialog, the filter can be applied like this:

def dialog (self, context, args):
    dlg = gom.api.dialog.create (context, '/dialogs/create_element.gdlg')
    dlg.element.filter = self.element_filter
    ...

def element_filter (self, element):
    return element.type == 'curve'

For default dialogs, this can be shortened to a call to show_dialog () which will handle the dialog creation, initialization and return the dialog values in the correct format in a single call:

def dialog (self, context, args):
    return self.show_dialog (context, args, '/dialogs/create_element.gdlg')

gom.api.extensions.CustomElement.event

gom.api.extensions.CustomElement.event(self: Any, context: Any, event_type: Any, parameters: Any): bool

Parameters:

context (Any) – Script context object containing execution related parameters. This includes the stage this computation call refers to.
event_type (Any) – Event type
parameters (Any) – Event arguments

Returns:

True if the event requires a recomputation of the elements preview. Upon return, the framework will then trigger a call to the compute () function and use its result for a preview update. In the case of False, no recomputation is triggered and the preview remains unchanged.

Return type:

bool

Contribution event handling function. This function is called when the contributions UI state changes. The function can then react to that event and update the UI state accordingly.

gom.api.extensions.CustomElement.event_handler

gom.api.extensions.CustomElement.event_handler(self: Any, context: Any, event_type: Any, parameters: Any): bool

Wrapper function for calls to event (). This function is called from the application side and will convert the event parameters accordingly

gom.api.extensions.CustomElement.finish

gom.api.extensions.CustomElement.finish(self: Any, context: Any, results_states_map: Any): None

Returns:: results_states_map
Return type:: None

This function is called to compile diagram data. It can then later be collected by custom diagrams and displayed.

The default option is to simply pass the results and states, so this function must be overwritten to utilize other diagrams.

Example:

diagram_data = []
self.add_diagram_data(diagram_data=diagram_data, diagram_id="SVGDiagram",
                      service_id="gom.api.endpoint.example.py", element_data=results_states_map["results"][0])
results_states_map["diagram_data"] = diagram_data

gom.api.extensions.CustomElement.initialize_dialog

gom.api.extensions.CustomElement.initialize_dialog(self: Any, context: Any, dlg: Any, args: Any): bool

Parameters:

context (Any) – Script context object containing execution related parameters.
dlg (Any) – Dialog handle as created via the gom.api.dialog.create () function
args (Any) – Dialog arguments as passed to the dialog () function with the same format as described there. Values which are not found in the dialog are ignored.

Returns:

True if the dialog was successfully initialized and all values could be applied. Otherwise, the service’s log will show a warning about the missing values.

Return type:

bool

Initializes the dialog from the given arguments. This function is used to setup the dialog widgets from the given arguments. The arguments are a map of widget names and their values.

gom.api.extensions.CustomElement.is_visible

gom.api.extensions.CustomElement.is_visible(self: Any, context: Any): bool

Returns:: True if the element is visible in the menus.
Return type:: bool

This function is called to check if the custom element is visible in the menus. This is usually the case if the selections and other preconditions are setup and the user then shall be enabled to create or edit the element.

The default state is True, so this function must be overwritten to add granularity to the elements visibility.

gom.api.extensions.CustomElement.show_dialog

gom.api.extensions.CustomElement.show_dialog(self: Any, context: Any, args: Any, url: Any): None

Parameters:

context (Any) – Script context object containing execution related parameters.
args (Any) – Dialog execution arguments. This is a JSON like map structure, see above.
url (Any) – Dialog URL of the dialog to show

Show dialog and return the values. This function is a helper function to simplify the dialog creation and execution. It will create the dialog, initialize it with the given arguments and show it. The resulting values are then returned in the expected return format.

This function is a shortcut for the following code:

dlg = gom.api.dialog.create(context, url)   # Create dialog and return a handle to it
self.initialize_dialog(context, dlg, args)  # Initialize the dialog with the given arguments
result = gom.api.dialog.show(context, dlg)  # Show dialog and enter the dialog loop
return self.apply_dialog(dlg, result)      # Apply the final dialog values

gom.api.extensions.ScriptedCalculationElement

Deprecated alias for CustomCalculationElement. Use CustomCalculationElement instead.

gom.api.extensions.ScriptedElement

Deprecated alias for CustomElement. Use CustomElement instead.

gom.api.extensions.actuals

Custom actual elements

The classes in this module are used to define custom actual elements. These elements are used to generate actuals in the ZEISS INSPECT software and will enable the user to create script defined element types.

gom.api.extensions.actuals.Circle

Custom actual circle element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "center"   : (x: float, y: float, z: float), // Centerpoint of the circle
    "direction": (x: float, y: float, z: float), // Direction/normal of the circle
    "radius"   : r: float,                       // Radius of the circle
    "data": {...}                                // Optional element data, stored with the element
}

gom.api.extensions.actuals.Cone

Custom actual cone element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "point1": (x: float, y: float, z: float), // First point of the cone (circle center)
    "radius1": r1: float,                     // Radius of the first circle
    "point2": (x: float, y: float, z: float), // Second point of the cone (circle center)
    "radius2": r2: float,                     // Radius of the second circle
    "data": {...}                             // Optional element data, stored with the element
}

gom.api.extensions.actuals.Curve

Custom actual curve element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "plane": p: Plane, // Plane of the curve (optional)
    "curves": [Curve], // List of curves
    "data": {...}      // Optional element data, stored with the element
}

The format of the Curve object is:

{
    "points": [(x: float, y: float, z: float), ...]
}

See the Plane element for the formats of the plane object.

gom.api.extensions.actuals.CustomActual

This class is the base class for all custom actuals

gom.api.extensions.actuals.CustomActual.init

gom.api.extensions.actuals.CustomActual.__init__(self: Any, id: str, description: str, element_type: str, help_id: str): None

Parameters:

id (str) – Custom actual id string
description (str) – Human readable name, will appear in menus
element_type (str) – Type of the generated element (point, line, …)

Constructor

gom.api.extensions.actuals.Cylinder

Custom actual cylinder element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "center": (x: float, y: float, z: float),    // Center point of the cylinder
    "direction": (x: float, y: float, z: float), // Direction of the cylinder
    "radius": r: float,                          // Radius of the cylinder
    "data": {...}                                // Optional element data, stored with the element
}

gom.api.extensions.actuals.Distance

Custom actual distance element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "point1": (x: float, y: float, z: float), // First point of the distance
    "point2": (x: float, y: float, z: float), // Second point of the distance
    "data": {...}                             // Optional element data, stored with the element
}

gom.api.extensions.actuals.Plane

Custom actual plane element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "normal": (x: float, y: float, z: float), // Normal direction of the plane
    "point": (x: float, y: float, z: float),  // One point of the plane
    "data": {...}                             // Optional element data, stored with the element
}

or

{
    "point1": (x: float, y: float, z: float), // Point 1 of the plane
    "point2": (x: float, y: float, z: float), // Point 2 of the plane
    "point3": (x: float, y: float, z: float), // Point 3 of the plane
    "data": {...}                             // Optional element data, stored with the element
}

or

{
    "plane": Reference, // Reference to another plane element
    "data": {...}       // Optional element data, stored with the element

}

gom.api.extensions.actuals.Point

Custom actual point element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "value": (x: float, y: float, z: float), // The point in 3D space.
    "data": {...}                            // Optional element data, stored with the element
}

gom.api.extensions.actuals.PointCloud

Custom actual point cloud element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "points":  [(x: float, y: float, z: float), ...], // List of points
    "normals": [(x: float, y: float, z: float), ...], // List of normals for each point
    "data": {...}                                     // Optional element data, stored with the element
}

The points and normals lists must have the same length — each normal corresponds to the point at the same index.

Example

import numpy as np

def compute (self, context, values):
    # Generate a point cloud on a hemisphere
    points = []
    normals = []

    for phi in np.linspace (0, 2 * np.pi, 36):
        for theta in np.linspace (0, np.pi / 2, 10):
            x = np.cos (phi) * np.sin (theta)
            y = np.sin (phi) * np.sin (theta)
            z = np.cos (theta)
            points.append ((x * 10.0, y * 10.0, z * 10.0))
            normals.append ((x, y, z))

    return {
        "points":  points,
        "normals": normals
    }

gom.api.extensions.actuals.ProbeMeasuredCurve

Custom actual probe measured curve element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "curves": [Curve], // List of curves
    "data": {...}      // Optional element data, stored with the element
}

The format of the Curve object is:

{
    "points": [(x: float, y: float, z: float), ...]
    "radii": [r: float, ...]
}

gom.api.extensions.actuals.ScriptedActual

Deprecated alias for CustomActual. Use CustomActual instead.

gom.api.extensions.actuals.ScriptedActual.compute_stage

gom.api.extensions.actuals.ScriptedActual.compute_stage(self: Any, context: Any, values: Any): None

Parameters:

context (Any) – Script context object for the current stage.
values (Any) – Dialog widget values dictionary.

Returns:

Result of compute(), forwarded unchanged.

Return type:

None

Delegate single-stage computation to the user-supplied compute() method.

Legacy add-ons that derive from ‘ScriptedActual’ are expected to implement compute() only (the pre-rename contract). This implementation satisfies the abstract compute_stage() requirement of CustomCalculationElement while keeping the user-visible API unchanged.

gom.api.extensions.actuals.Section

Custom actual section element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "curves": [Curve],
    "plane": Plane,        // Optional
    "cone": Cone,          // Optional
    "cylinder": Cylinder,  // Optional
    "data": {...}          // Optional element data, stored with the element
}

The format of the Curve object is:

{
    "points":  [(x: float, y: float, z: float), ...] // List of points
    "normals": [(x: float, y: float, z: float), ...] // List of normals for each point
}

See the Plane, Cone and Cylinder element for the formats of the plane, cone and cylinder object.

gom.api.extensions.actuals.Surface

Custom actual surface element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "vertices":  [(x: float, y: float, z: float), ...], // List of vertices
    "triangles": [(i1: int, i2: int, i3: int), ...],    // List of triangles (vertex indices, 0-based)
    "data": {...}                                       // Optional element data, stored with the element
}

The triangles list contains triplets of indices into the vertices list, defining the surface mesh.

Example

def compute (self, context, values):
    # A simple quad surface made of two triangles
    vertices = [
        (0.0, 0.0, 0.0),
        (10.0, 0.0, 0.0),
        (10.0, 10.0, 0.0),
        (0.0, 10.0, 0.0)
    ]
    triangles = [
        (0, 1, 2),
        (0, 2, 3)
    ]

    return {
        "vertices":  vertices,
        "triangles": triangles
    }

gom.api.extensions.actuals.SurfaceCurve

Custom actual surface curve element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "curves": [Curve], // Curve definition
    "data": {...}      // Optional element data, stored with the element
}

The format of the Curve object is:

{
    "points":  [(x: float, y: float, z: float), ...] // List of points
    "normals": [(x: float, y: float, z: float), ...] // List of normals for each point
}

gom.api.extensions.actuals.SurfaceDefects

Custom actual surface defects element

A surface defects element represents a set of defect regions on a surface mesh. The defects are described as triangle meshes, where each defect is a separate mesh consisting of vertices and triangles. An optional outer hull mesh can be provided as a reference surface for the defect computation.

The expected parameters from the element’s compute () function is a map with the following format:

{
    "vertices":  [                                              # List of vertex arrays, one per defect
        [(x: float, y: float, z: float), ...],                 # Vertices of defect 1
        [(x: float, y: float, z: float), ...],                 # Vertices of defect 2
        ...
    ],
    "triangles": [                                              # List of triangle arrays, one per defect
        [(i0: int, i1: int, i2: int), ...],                    # Triangles of defect 1 (vertex indices)
        [(i0: int, i1: int, i2: int), ...],                    # Triangles of defect 2 (vertex indices)
        ...
    ],
    "data": {...}                                               # Optional element data, stored with the element
}

The number of vertex arrays and triangle arrays must be equal — each pair defines one defect mesh. Triangle indices refer to the vertices within the same defect (0-based).

Outer hull

An optional outer hull can be provided in two ways:

As a reference to an existing element:

{
    "vertices": [...],
    "triangles": [...],
    "outer_hull": gom.app.project.actual_elements['My Surface'],  # Reference to an existing surface element
}

As explicit mesh data:

{
    "vertices": [...],
    "triangles": [...],
    "outer_hull_vertices":  [(x: float, y: float, z: float), ...],  # Outer hull vertices
    "outer_hull_triangles": [(i0: int, i1: int, i2: int), ...],     # Outer hull triangles (vertex indices)
}

If no outer hull is provided, the defects are treated as standalone defect meshes.

Example

import numpy as np

def compute (self, context, values):
    # A single triangular defect
    vertices = [
        [(10.0, 0.0, 0.0), (11.0, 0.0, 0.0), (10.5, 1.0, 0.0)]
    ]
    triangles = [
        [(0, 1, 2)]
    ]

    return {
        "vertices": vertices,
        "triangles": triangles
    }

gom.api.extensions.actuals.ValueElement

Custom actual value element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "value": v: float, // Value of the element
    "data": {...}      // Optional element data, stored with the element
}

gom.api.extensions.actuals.Volume

Custom actual volume element

A volume element represents a 3D voxel dataset. The voxels are provided as a 3D NumPy array, and the volume’s position and scale in 3D space is defined by a transformation — either as a simple voxel size vector or a full 4x4 transformation matrix.

The expected parameters from the element’s compute () function is a map with one of the following formats:

Format 1: Voxel size as a 3D vector

{
    'voxel_data':      np.array (shape=(z, y, x), dtype=...),  # 3D voxel data
    'transformation':  (sx: float, sy: float, sz: float),      # Voxel size per axis
    "data": {...}                                               # Optional element data, stored with the element
}

Format 2: Full transformation matrix

{
    'voxel_data':      np.array (shape=(z, y, x), dtype=...),  # 3D voxel data
    'transformation':  gom.Mat4x4,                              # 4x4 transformation matrix
    "data": {...}                                               # Optional element data, stored with the element
}

The transformation matrix format is:

[[ sx,  0,  0, tx],
 [  0, sy,  0, ty],
 [  0,  0, sz, tz],
 [  0,  0,  0,  1]]

Supported voxel data types

The voxel_data array can use the following NumPy dtypes: uint8, uint16, uint32, int8, int16, int32, float32, float64.

Array shape convention

The shape (z, y, x) follows NumPy convention where the z-axis (depth) is the slowest-varying dimension and the x-axis is the fastest-varying dimension.

Constraints

When using a voxel size vector, none of the axis values may be zero.
When using a transformation matrix, the determinant must not be zero (the matrix must not be singular).

Example

import numpy as np

def compute (self, context, values):
    # Create a 100x100x100 volume with 0.1 mm voxel size
    voxels = np.zeros ((100, 100, 100), dtype=np.float32)

    # Fill a sphere in the center
    center = np.array ([50, 50, 50])
    for z in range (100):
        for y in range (100):
            for x in range (100):
                dist = np.sqrt ((x - center[0])**2 + (y - center[1])**2 + (z - center[2])**2)
                if dist < 30:
                    voxels[z, y, x] = 1.0

    return {
        'voxel_data':     voxels,
        'transformation': (0.1, 0.1, 0.1)  # 0.1 mm voxel size in each direction
    }

gom.api.extensions.actuals.VolumeDefects

Custom actual volume defects element

A volume defects element represents a set of defect regions within a volumetric dataset. Like SurfaceDefects, the defects are described as triangle meshes — each defect is a separate mesh consisting of vertices and triangles. An optional outer hull provides the reference surface for the defect analysis.

The expected parameters from the element’s compute () function is a map with the following format:

{
    "vertices":  [                                              # List of vertex arrays, one per defect
        [(x: float, y: float, z: float), ...],                 # Vertices of defect 1
        [(x: float, y: float, z: float), ...],                 # Vertices of defect 2
        ...
    ],
    "triangles": [                                              # List of triangle arrays, one per defect
        [(i0: int, i1: int, i2: int), ...],                    # Triangles of defect 1 (vertex indices)
        [(i0: int, i1: int, i2: int), ...],                    # Triangles of defect 2 (vertex indices)
        ...
    ],
    "data": {...}                                               # Optional element data, stored with the element
}

The number of vertex arrays and triangle arrays must be equal — each pair defines one defect mesh. Triangle indices refer to the vertices within the same defect (0-based).

Outer hull

An optional outer hull can be provided in two ways:

As a reference to an existing element:

{
    "vertices": [...],
    "triangles": [...],
    "outer_hull": gom.app.project.actual_elements['My Volume Mesh'],  # Reference to an existing element
}

As explicit mesh data:

{
    "vertices": [...],
    "triangles": [...],
    "outer_hull_vertices":  [(x: float, y: float, z: float), ...],  # Outer hull vertices
    "outer_hull_triangles": [(i0: int, i1: int, i2: int), ...],     # Outer hull triangles (vertex indices)
}

If no outer hull is provided, the defects are treated as standalone defect meshes.

Example

import numpy as np

def compute (self, context, values):
    # A single tetrahedral defect inside a volume
    vertices = [
        [(5.0, 5.0, 5.0), (6.0, 5.0, 5.0), (5.5, 6.0, 5.0), (5.5, 5.5, 6.0)]
    ]
    triangles = [
        [(0, 1, 2), (0, 1, 3), (0, 2, 3), (1, 2, 3)]
    ]

    return {
        "vertices": vertices,
        "triangles": triangles
    }

gom.api.extensions.actuals.VolumeDefects2d

Custom actual 2d volume defects element

A 2D volume defects element represents defect contours that lie in a common plane. All contours must be coplanar. Optional outer hull contours and per-vertex normals can be provided for more precise defect characterization.

The expected parameters from the element’s compute () function is a map with the following format:

{
    "curves":                  [[(x: float, y: float, z: float), ...], ...],  # Defect contours (required)
    "outer_contours":          [[(x: float, y: float, z: float), ...], ...],  # Outer hull contours (required, use [] if none)
    "curves_normals":          [[(x: float, y: float, z: float), ...], ...],  # Optional normals for 'curves'
    "outer_contours_normals":  [[(x: float, y: float, z: float), ...], ...],  # Optional normals for 'outer_contours'
    "data": {...}                                                              # Optional element data, stored with the element
}

Important: Both curves and outer_contours must always be present in the returned dictionary. If no outer hull contours are needed, pass an empty list [] for outer_contours.

Normals

The curves_normals and outer_contours_normals fields are optional. If omitted, normals are derived automatically. When provided:

Each normals list must match the structure and vertex count of its corresponding contour list.
Normals must not contain zero-length vectors.
Normals must lie in the defect plane (perpendicular component within tolerance is rejected).

When no defect normals are provided, each curve is treated as an independent defect. When defect normals are provided, the first contour of a defect must point outward and following internal contours must alternate orientation, starting inward.

Constraints

All contour points (from both curves and outer_contours) must be coplanar.
At least one of curves or outer_contours must be non-empty.

Example

import numpy as np

def compute (self, context, values):
    # A rectangular defect contour in the XY plane at z=5
    defect = [
        (10.0, 10.0, 5.0), (20.0, 10.0, 5.0),
        (20.0, 20.0, 5.0), (10.0, 20.0, 5.0),
        (10.0, 10.0, 5.0)  # Closed contour
    ]

    return {
        "curves":          [defect],
        "outer_contours":  []       # No outer hull contours
    }

gom.api.extensions.actuals.VolumeRegion

Custom actual volume region element

A volume region element defines a sub-region within a linked volume. The region is specified as a 3D binary mask of type uint8, where non-zero voxels belong to the region. The mask does not need to cover the full volume — an offset specifies where the mask is placed within the parent volume’s voxel grid.

The expected parameters from the element’s compute () function is a map with the following format:

{
    "voxel_data":      np.array (dtype=np.uint8, shape=(z, y, x)),  # Region mask (non-zero = inside region)
    "offset":          (ox: float, oy: float, oz: float),           # Offset in voxel coordinates
    "volume_element":  gom.Item,                                    # Reference to the source volume element
    "data": {...}                                                   # Optional element data, stored with the element
}

Constraints

voxel_data must be a 3D array of dtype uint8. The shape (z, y, x) follows NumPy convention where z is the slowest-varying dimension.
offset specifies the position of the region within the parent volume in voxel coordinates. The offset values are rounded to the nearest integer internally and must be non-negative.
The region (offset + size) must not exceed the dimensions of the referenced volume.
volume_element must be a reference to a linked volume element in the project.

Example

import numpy as np

def compute (self, context, values):
    volume = values['volume']  # Reference to a linked volume element from a dialog widget

    # Define a 50x50x50 voxel region starting at offset (10, 20, 30)
    region = np.ones ((50, 50, 50), dtype=np.uint8)

    return {
        "voxel_data":     region,
        "offset":         (10.0, 20.0, 30.0),
        "volume_element": volume
    }

gom.api.extensions.actuals.VolumeSection

Custom actual volume section element

A volume section element represents a 2D cross-section through volumetric data. The section is defined as a 2D image of floating-point pixel values, optionally positioned in 3D space by a transformation matrix.

The expected parameters from the element’s compute () function is a map with the following format:

{
    "pixel_data":      np.array (dtype=np.float32, shape=(height, width)),  # 2D section pixel data
    "transformation":  gom.Mat4x4,                                          # Optional: 4x4 transformation matrix
    "data": {...}                                                           # Optional element data, stored with the element
}

Parameters

pixel_data (required): A 2D NumPy array of dtype float32 with shape (height, width). Each pixel value represents the reconstructed grey value at that position in the section plane.
transformation (optional): A 4x4 transformation matrix (gom.Mat4x4) that positions and orients the section plane in 3D space. If omitted, the section is placed at the origin. The matrix format is:
```
[[ sx,  0,  0, tx],
 [  0, sy,  0, ty],
 [  0,  0, sz, tz],
 [  0,  0,  0,  1]]
```

Example

import numpy as np

def compute (self, context, values):
    # Create a 256x256 section with a gradient pattern
    pixel_data = np.zeros ((256, 256), dtype=np.float32)
    for y in range (256):
        for x in range (256):
            pixel_data[y, x] = float (x + y) / 512.0

    return {
        "pixel_data": pixel_data
    }

gom.api.extensions.actuals.VolumeSegmentation

Custom actual volume segmentation element

A volume segmentation element partitions a linked volume into labeled segments. Each voxel is assigned a segment label (an integer from 0 to number_of_segments - 1). The segmentation labels are provided as a 3D NumPy array of type uint8 with the same dimensions as the referenced volume.

The expected parameters from the element’s compute () function is a map with the following format:

{
    "segmentation_labels": np.array (dtype=np.uint8, shape=(z, y, x)),  # Segment label per voxel
    "number_of_segments":  n: int,                                      # Number of distinct segments (2-8)
    "volume_element":      gom.Item,                                    # Reference to the source volume element
    "data": {...}                                                       # Optional element data, stored with the element
}

Constraints

segmentation_labels must be a 3D array of dtype uint8.
The array shape (z, y, x) must match the voxel dimensions of the referenced volume element. Note that the NumPy shape convention is (z, y, x) — the z-axis is the slowest-varying dimension.
number_of_segments must be between 2 and 8 (inclusive).
volume_element must be a reference to a linked volume element in the project.

Example

import numpy as np

def compute (self, context, values):
    volume = values['volume']  # Reference to a linked volume element from a dialog widget
    volume_data = np.array (volume.data.voxel_data)

    # Simple threshold segmentation into 2 segments
    labels = np.zeros (volume_data.shape, dtype=np.uint8)
    labels[volume_data > 128] = 1

    return {
        "segmentation_labels": labels,
        "number_of_segments":  2,
        "volume_element":      volume
    }

gom.api.extensions.diagrams

Custom diagrams

Custom diagrams allow apps to render arbitrary, interactive diagrams inside ZEISS INSPECT diagram views. A custom diagram is a Python service contribution that transforms element data into a format consumable by a JavaScript renderer running in the diagram view’s embedded web engine.

Architecture overview

The custom diagram system follows a three-layer pipeline:

        flowchart TD
    A["**Custom Element** (Python service)<br/>finish() attaches diagram payloads<br/>via add_diagram_data()"]
    --> B["**Custom Diagram** (Python service)<br/>CustomDiagram / SVGDiagram<br/>plot() transforms element data<br/>into renderer-specific output"]
    --> C["**JavaScript Renderer** (diagram view)<br/>Renders into the HTML canvas<br/>Handles hover, click and tooltip"]

Getting started

Create a custom element that produces diagram data in its finish() method:

def finish(self, context, results_states_map):
    diagram_data = []
    self.add_diagram_data(
        diagram_data=diagram_data,
        diagram_id='SVGDiagram',
        service_id='gom.api.endpoint.my_service',
        element_data=results_states_map['results'][0],
    )
    results_states_map['diagram_data'] = diagram_data

Create a custom diagram contribution that implements plot():

import gom
from gom import apicontribution
from gom.api.extensions.diagrams import SVGDiagram
from gom.api.extensions.diagrams.matplotlib_tools import setup_plot, create_svg
import matplotlib.pyplot as plt

@apicontribution
class MyDiagram(SVGDiagram):

    def __init__(self):
        super().__init__(
            id='my.app.diagram',
            description='My Custom Diagram',
        )

    def plot(self, view, element_data):
        fig = setup_plot(plt, view, adjust_dpi=True)
        ax = fig.add_subplot(111)

        for entry in element_data:
            data = entry['data']
            ax.plot(data['x_values'], data['y_values'])

        return create_svg(plt, view)

gom.run_api()

Register both as services in the app’s metainfo.json so they are started automatically.

Key classes

CustomDiagram Abstract base class for custom diagram contributions. Subclass this when you need full control over the renderer type and output format.

SVGDiagram Specialized base for diagrams rendered as SVG. Provides helper functions (finish_plot, add_element_to_overlay, get_overlay_tag) and automatic output sanitization. This is the recommended starting point for most diagrams.

CustomDiagramView Integration class bridging custom diagrams into the custom view framework. Used for advanced diagram views with dedicated JavaScript bundles.

Helper module

gom.api.extensions.diagrams.matplotlib_tools Provides setup_plot() and create_svg() for matplotlib-based SVG generation. Handles DPI scaling, figure sizing, and SVG export so the output fits cleanly into the diagram view canvas and report snapshots.

gom.api.extensions.diagrams.CustomDiagram

Abstract base class for custom diagram contributions.

A custom diagram is a Python service contribution that receives element data from one or more custom elements and transforms it into a format suitable for a JavaScript renderer in the diagram view. The typical data flow is:

A custom element’s finish() method calls add_diagram_data() to attach diagram payloads (including a diagram_id specifying the renderer type and a service_id identifying this diagram contribution).
The framework collects all diagram data entries for the active diagram view, groups them by contribution, and calls plot_all() on the matching CustomDiagram instance.
plot_all() determines partitions via partitions(), then calls plot() once per partition with the corresponding subset of element data.
The return value of plot() is forwarded to the JavaScript renderer for display.

Subclassing guide

Required: Override plot(view, element_data) to transform element data into renderer-specific output. The view dictionary provides canvas dimensions and font settings. The element_data list contains one dictionary per element with keys 'element' (the element reference), 'data' (the custom data dict), and 'type' (the element type string).
Optional: Override partitions(element_data) to split the element data into multiple subsets. Each subset is rendered as a separate diagram (subplot). The default implementation returns a single partition containing all elements.
Optional: Override event(element_name, element_uuid, event_data) to handle user interactions (clicks) on the diagram. Return finish_event(cmd_script, params) to trigger execution of a follow-up script command.

For SVG-based diagrams, prefer subclassing SVGDiagram instead — it provides additional helpers for SVG output, interactive overlays, and automatic output sanitization.

Example

import gom
from gom import apicontribution
from gom.api.extensions.diagrams import CustomDiagram

@apicontribution
class MyRawDiagram(CustomDiagram):

    def __init__(self):
        super().__init__(
            id='my.app.raw_diagram',
            description='Raw Data Diagram',
            diagram_type='MyCustomRenderer',
        )

    def plot(self, view, element_data):
        # Transform element data into renderer-specific format
        return {
            'labels': [e['element'].name for e in element_data],
            'values': [e['data']['value'] for e in element_data],
        }

gom.run_api()

gom.api.extensions.diagrams.CustomDiagram.Token

Token identifiers for the CustomDiagram data format

gom.api.extensions.diagrams.CustomDiagram.init

gom.api.extensions.diagrams.CustomDiagram.__init__(self: Any, id: str, description: str, diagram_type: str, properties: Dict[str, Any], callables: Dict[str, Any]): None

Parameters:

id (str) – Unique contribution id, like my.diagram.circles
description (str) – Human readable contribution description
diagram_type (str) – Javascript renderer to use (leave empty to use renderer set by element)
properties (Dict[str, Any]) – Additional properties for this contribution (optional)
callables (Dict[str, Any]) – Additional callables for this contribution (optional)

Constructor

gom.api.extensions.diagrams.CustomDiagram.check_and_filter_partitions

gom.api.extensions.diagrams.CustomDiagram.check_and_filter_partitions(self: Any, partitions_in: List[List[int]], cnt_elements: int): None

Parameters:

partitions_in (List[List[int]]) – List of partitions to check
cnt_elements (int) – Count of elements in full data set

Check a given set of partitions to ensure only valid partitions are included.

For internal use only.

gom.api.extensions.diagrams.CustomDiagram.event

gom.api.extensions.diagrams.CustomDiagram.event(self: Any, element_name: str, element_uuid: str, event_data: Any): None

Parameters:

element_name (str) – Human-readable element name (e.g., 'Point 1').
element_uuid (str) – Internal UUID string identifying the element.
event_data (Any) – Dictionary with mouse event details including coordinates and button state.

Returns:

None to ignore the event, or a dictionary produced by finish_event(cmd_script, params) to trigger a follow-up script command.

Return type:

None

Handle user interaction with the diagram (clicks, but not hover).

Override this method to react to click events on diagram elements. The method receives the name and UUID of the element that was interacted with, plus details about the mouse event. Use finish_event() to return a follow-up script command.

Example:

def event(self, element_name, element_uuid, event_data):
    return self.finish_event('my_click_handler', {'uuid': element_uuid})

gom.api.extensions.diagrams.CustomDiagram.finish_event

gom.api.extensions.diagrams.CustomDiagram.finish_event(self: Any, cmd_script: str, params: Any): None

Parameters:

cmd_script (str) – Identifier of the script command to execute as a follow-up to the diagram interaction event.
params (Any) – Optional parameters to pass to the script command. Can be any JSON-serializable value.

Returns:

Dictionary {'cmd_script': cmd_script, 'data_script': params}.

Return type:

None

Build the return dictionary for event() in the format expected by the framework.

Example:

def event(self, element_name, element_uuid, event_data):
    return self.finish_event('my_click_handler', {'uuid': element_uuid})

gom.api.extensions.diagrams.CustomDiagram.partitions

gom.api.extensions.diagrams.CustomDiagram.partitions(self: Any, element_data: List[Dict[str, Any]]): None

Parameters:: element_data (List[Dict[str, Any]]) – List of element data dictionaries (same format as in plot()).
Returns:: List of lists of int. Each inner list contains element indices for one partition. Partitions may share elements (i.e., the same index can appear in multiple partitions).
Return type:: None

Determine how to split element data into multiple subplots.

Override this method to render multiple separate diagrams from a single set of element data. Each partition is a list of indices into element_data. The framework calls plot() once per partition, passing only the elements at the specified indices. The partition’s zero-based index is available as view['subplot'] inside plot().

The default implementation returns a single partition containing all elements, resulting in one diagram.

Example — split elements by type into separate subplots:

def partitions(self, element_data):
    by_type = {}
    for i, entry in enumerate(element_data):
        by_type.setdefault(entry['type'], []).append(i)
    return list(by_type.values())

gom.api.extensions.diagrams.CustomDiagram.plot

gom.api.extensions.diagrams.CustomDiagram.plot(self: Any, view: Dict[str, Any], element_data: List[Dict[str, Any]]): None

Parameters:

view (Dict[str, Any]) – Dictionary with canvas dimensions and rendering context: - 'width' (int): Canvas width in pixels. - 'height' (int): Canvas height in pixels. - 'dpi' (float): Display resolution (dots per inch). - 'font' (dict): Font settings with at least 'size' (int). - 'subplot' (int): Zero-based index of the current partition, as determined by partitions(). Always 0 if partitions are not used.
element_data (List[Dict[str, Any]]) – List of element data dictionaries. Each dictionary contains: - 'element' (object): Reference to the ZEISS INSPECT element. Can be used to query element properties like element.name. - 'data' (dict): The custom data dictionary as returned by the element’s finish() method via add_diagram_data(). - 'type' (str): The element type identifier string.

Returns:

Data forwarded to the JavaScript renderer’s render2d() method. The expected format depends on the diagram_type. For SVGDiagram, return either a raw SVG string or a dictionary produced by finish_plot().

Return type:

None

Transform element data into renderer-specific output for one partition.

This is the main method to override. It is called once per partition (or once for all elements if partitions() is not overridden).

gom.api.extensions.diagrams.CustomDiagram.plot_all

gom.api.extensions.diagrams.CustomDiagram.plot_all(self: Any, view: Dict[str, Any], element_data: List[Dict[str, Any]]): None

Parameters:

view (Dict[str, Any]) – Dictionary with canvas dimensions and rendering context: - 'width' (int): Canvas width in pixels. - 'height' (int): Canvas height in pixels. - 'dpi' (float): Display resolution. - 'font' (dict): Font settings with at least 'size' (int).
element_data (List[Dict[str, Any]]) – List of element data dictionaries, each containing: - 'element' (object): Reference to the ZEISS INSPECT element. - 'data' (dict): Custom data from the element’s finish(). - 'type' (str): Element type identifier string.

Returns:

List of dictionaries, each with keys 'plot' (the plot data for one partition) and 'indices' (the element indices used for that partition).

Return type:

None

Internal coordination function for the overall plot process.

Calls partitions() to determine data subsets, then calls plot() once per partition to produce the final diagram output. Users should not call or override this method — override plot() and optionally partitions() instead.

gom.api.extensions.diagrams.CustomDiagram.sanitize_plot_data

gom.api.extensions.diagrams.CustomDiagram.sanitize_plot_data(self: Any, plot_data: Any): None

Sanitize the output of the user-defined plot() function.

The base implementation returns the data unchanged. SVGDiagram overrides this to normalize raw SVG strings into the full dictionary format expected by its JavaScript renderer.

gom.api.extensions.diagrams.CustomDiagramView

Integration class for custom diagrams in the custom view framework.

CustomDiagramView bridges the custom view system and the diagram pipeline. It exposes a plot() / event() interface similar to CustomDiagram, but operates within the custom view lifecycle instead of the standalone diagram contribution system.

@note This class currently duplicates parts of the CustomDiagram interface. Prefer CustomDiagram or SVGDiagram for new diagram contributions.

gom.api.extensions.diagrams.CustomDiagramView.init

gom.api.extensions.diagrams.CustomDiagramView.__init__(self: Any, id: str, description: str, bundle: str, stylesheet: str, supported_properties: List[str], functions: List[Any], signals: List[str], properties: Dict[str, Any]): None

Parameters:

id (str) – Unique contribution id, like my.diagram.circles
description (str) – Human readable contribution description
bundle (str) – Name of the bundle where the diagram view is defined (used for diagram type identification)
stylesheet (str) – Optional stylesheet for the diagram view
supported_properties (List[str]) – List of supported properties for this diagram view (optional, used for validation and documentation purposes)
functions (List[Any]) – List of additional functions for this diagram view (optional)
signals (List[str]) – List of additional signals for this diagram view (optional)
properties (Dict[str, Any]) – Additional properties for this contribution (optional)

Constructor

gom.api.extensions.diagrams.CustomDiagramView.event

gom.api.extensions.diagrams.CustomDiagramView.event(self: Any, element_name: str, element_uuid: str, event_data: Any): None

Parameters:

element_name (str) – Human-readable element name.
element_uuid (str) – Internal UUID string identifying the element.
event_data (Any) – Dictionary with mouse event details.

Returns:

None or a follow-up command dictionary.

Return type:

None

Handle user interaction with the diagram (clicks, but not hover).

See CustomDiagram.event() for a detailed description of the parameters.

gom.api.extensions.diagrams.CustomDiagramView.finish_event

gom.api.extensions.diagrams.CustomDiagramView.finish_event(self: Any, cmd_script: str, params: Any): None

Parameters:

cmd_script (str) – Identification of the script command to be executed as a follow-up to this event
data_script – Optional Parameters to be passed to said script

Returns:

Dictionary with {“cmd_script”: cmd_script, “data_script”: params}

Return type:

None

This function is called to help return event data in the correct format

gom.api.extensions.diagrams.CustomDiagramView.partitions

gom.api.extensions.diagrams.CustomDiagramView.partitions(self: Any, element_data: List[Dict[str, Any]]): None

Parameters:: element_data (List[Dict[str, Any]]) – List of dictionaries containing custom element references and context data (‘element’ (object), ‘data’ (dict), ‘type’ (str))
Returns:: List of Lists of int: each inner list represents one partition and contains the indices of the elements to be used for that partition
Return type:: None

This function is called to determine the partitions to create multiple plots based on one element data set. Each partition is defined by a list of indices of elements to be used. Each data subset will be passed separately to the plot() function and be rendered as a separate diagram. The index of each partition will be available through the ‘subplot’ key in the view parameters of the plot() function call.

@note Partitions may share elements

gom.api.extensions.diagrams.CustomDiagramView.plot

gom.api.extensions.diagrams.CustomDiagramView.plot(self: Any, view: Dict[str, Any], element_data: List[Dict[str, Any]]): None

Parameters:

view (Dict[str, Any]) – Dictionary with canvas dimensions and rendering context.
element_data (List[Dict[str, Any]]) – List of element data dictionaries.

Returns:

Data forwarded to the JavaScript renderer.

Return type:

None

Transform element data into renderer-specific output.

Override this method to generate the diagram. See CustomDiagram.plot() for a detailed description of the parameters and return value.

gom.api.extensions.diagrams.CustomDiagramView.plot_all

gom.api.extensions.diagrams.CustomDiagramView.plot_all(self: Any, view: Dict[str, Any], element_data: List[Dict[str, Any]]): None

Parameters:

view (Dict[str, Any]) – Dictionary with canvas dimensions ('width', 'height', 'dpi', 'font').
element_data (List[Dict[str, Any]]) – List of element data dictionaries.

Returns:

Single-entry list containing the plot data and element indices.

Return type:

None

Internal coordination function for the overall plot process.

Calls plot() with the full element data set and wraps the result into the list format expected by the diagram renderer.

gom.api.extensions.diagrams.SVGDiagram

Specialized base class for custom diagrams rendered as SVG images.

SVGDiagram extends CustomDiagram with helpers for the built-in SVGDiagram JavaScript renderer that ships with ZEISS INSPECT. It is the recommended base class when diagrams are generated as SVG (for example via matplotlib).

Features

Automatic output sanitization: plot() can return a raw SVG string or a dictionary produced by finish_plot(). Raw strings are wrapped into the expected dictionary format automatically.
Point overlay for interactivity: Use add_element_to_overlay() to register element positions (relative coordinates) so the renderer can highlight nearest elements and dispatch click events.
Auto-generated overlay: Set RenderConfigToken.AUTO_GENERATED_OVERLAY_USE to True and wrap each element’s SVG group with the tag returned by get_overlay_tag(element_uuid). The renderer will automatically extract bounding boxes from the tagged SVG groups.
Render configuration: Pass a render_config dictionary to finish_plot() to control debug overlays, marker styles, tooltips, and caching. See RenderConfigToken for the full list of options.

Getting Started

import gom
from gom import apicontribution
from gom.api.extensions.diagrams import SVGDiagram
from gom.api.extensions.diagrams.matplotlib_tools import setup_plot, create_svg
import matplotlib
matplotlib.use('agg')  # non-interactive backend
import matplotlib.pyplot as plt

@apicontribution
class MyBarChart(SVGDiagram):

    def __init__(self):
        super().__init__(
            id='my.app.bar_chart',
            description='Bar Chart',
        )

    def plot(self, view, element_data):
        fig, ax = setup_plot(plt, view)
        names  = [e['element'].name for e in element_data]
        values = [e['data']['value'] for e in element_data]
        ax.bar(names, values)
        return create_svg(plt, view)

gom.run_api()

gom.api.extensions.diagrams.SVGDiagram.RenderConfigToken

Token identifiers for the optional rendering configuration passed to the SVGDiagram renderer via Token.RENDER_CONFIG parameter

“debug_logging” - Enable general logging (default: False)

“debug_logging_trace” - Enable detailed result logging (default: False)

“debug_performance” - Enable performance measuring during the (overlay) rendering process (default: False)

“debug_always_show_overlay” - Always show the standard overlay with small black crosses (default: False)

“debug_auto_generated_overlay_show” - Show the hitboxes of the auto generated overlay if available (default: False)

“debug_nearest_point_show” - Show a small text with the uuid of the nearest element (default: False)

“debug_nearest_point_x” - X-coordinate of nearest element text if enabled (default: 50)

“debug_nearest_point_y” - Y-coordinate of nearest element text if enabled (default: 50)

“debug_mouse_position_show” - Show a marker on the element nearest to the mouse (if in range) (default: True)

“nearest_marker_shape” - Shape of the nearest element marker (default: “cross”) (options: “cross”, “square”, “circle”, “dot”)

“nearest_marker_color” - Color of the nearest element marker (default: automatic color from diagram view)

“nearest_marker_size” - Size of the nearest element marker (default: 5)

“disable_tooltips” - Disables all element tooltips of the diagram from being displayed (default: False)

“disable_mouse_events” - Disables mouse (click) events from being processed (default: False)

“custom_hash” - If defined, use this as a hash for the caching instead of a generated one (default: undefined)

“auto_generated_overlay_use” - Automatically generate a overlay to determine the hitboxes of elements based on tagged svg groups (default: False)

“overlay_tag_prefix” - Prefix of user defined tags to filter the svg by (default: “tag-” (Token.TAG_PREFIX))

“overlay_tag_suffix” - Suffix of user defined tags to filter the svg by (default: “-tag” (Token.TAG_SUFFIX))

“overlay_expand_hitboxes” - Expand every hitbox in the auto generated overlay by this number of pixels (default: 10)

“overlay_use_mouse_position” - If TRUE, always use the mouse position instead of a point from the element coords if interacting via the auto generated overlay (default: False)

“overlay_filter_method” - Select the SVG filtering method used to generated the overlay (default: “string-parser”) (options: “string-parser”, “dom-parser”)

“overlay_element_count” - Count of elements to be tracked by the overlay. (default: automatic)

gom.api.extensions.diagrams.SVGDiagram.Token

Token identifiers for the SVGDiagram renderer data format

gom.api.extensions.diagrams.SVGDiagram.add_element_to_overlay

gom.api.extensions.diagrams.SVGDiagram.add_element_to_overlay(self: Any, overlay: Dict[str, Dict[str, Any]], element_uuid: Any, interaction_point: Tuple[float, float], element_name: str, tooltip: Any, custom_interaction: Any): None

Parameters:

overlay (Dict[str, Dict[str, Any]]) – Overlay dictionary that is being built up. Pass an empty {} dict on first call.
element_uuid (Any) – UUID of the element to register. If falsy, the call is a no-op.
interaction_point (Tuple[float, float]) – (x, y) tuple in relative coordinates (0.0–1.0) with respect to the plot’s width and height. Use matplotlib_tools.get_display_coords() to convert data coordinates to relative coordinates.
element_name (str) – Human-readable element name shown in the tooltip.
tooltip (Any) – Tooltip text displayed when hovering the element.
custom_interaction (Any) – If set to any truthy value, the event() method is called when this element is clicked. Applied to the specific interaction point if one is given, or globally for this element otherwise.

Returns:

The same overlay dictionary, updated in-place.

Return type:

None

Register an element in the point-based interaction overlay.

Call this method once per element (or multiple times for different interaction points of the same element) to build the overlay dictionary that is passed to finish_plot(). The renderer uses the overlay to determine which element is closest to the mouse cursor and to dispatch click events.

Calling the function multiple times for the same element_uuid appends additional interaction points. Other properties (element_name, tooltip) are updated if new non-empty values are provided.

Example:

overlay = {}
for entry in element_data:
    uuid = entry['element'].get('uuid')
    self.add_element_to_overlay(
        overlay, uuid, (rel_x, rel_y),
        element_name=entry['element'].name,
        tooltip=f"{entry['element'].name}: {entry['data']['value']}",
    )
return self.finish_plot(svg, overlay)

gom.api.extensions.diagrams.SVGDiagram.finish_plot

gom.api.extensions.diagrams.SVGDiagram.finish_plot(self: Any, svg_string: str, overlay: List, render_config: Dict): None

Parameters:

svg_string (str) – SVG markup string representing the plot (e.g., the output of matplotlib_tools.create_svg()).
overlay (List) – Point overlay dictionary for interactivity, built via add_element_to_overlay(). Defaults to an empty list (no interactive overlay).
render_config (Dict) – Optional dictionary with renderer settings. See RenderConfigToken for available keys.

Returns:

Dictionary with keys 'svg_string', 'overlay', 'render_config', and 'diagram_id'.

Return type:

None

Build the plot result dictionary in the format expected by the SVGDiagram renderer.

Call this from plot() to produce a well-formed return value. If plot() returns a raw SVG string instead, sanitize_plot_data() calls this method internally.

Example:

def plot(self, view, element_data):
    fig, ax = setup_plot(plt, view)
    # ... draw plot ...
    svg = create_svg(plt, view)
    overlay = {}
    for e in element_data:
        self.add_element_to_overlay(
            overlay, e['element'].get('uuid'), (x, y),
            element_name=e['element'].name)
    return self.finish_plot(svg, overlay)

gom.api.extensions.diagrams.SVGDiagram.get_overlay_tag

gom.api.extensions.diagrams.SVGDiagram.get_overlay_tag(self: Any, element_uuid: str): str

Parameters:: element_uuid (str) – UUID of the element.
Returns:: Tag string in the format 'tag-<element_uuid>-tag'.
Return type:: str

Build the SVG group tag for the auto-generated overlay feature.

When RenderConfigToken.AUTO_GENERATED_OVERLAY_USE is enabled, the renderer scans the SVG markup for groups whose id attribute matches the pattern tag-<uuid>-tag. Wrap each element’s SVG content in a <g> tag with this id to let the renderer automatically compute hitboxes.

Example:

# Inside matplotlib drawing code
with plt.rc_context():
    group_id = self.get_overlay_tag(uuid)
    ax.bar(..., gid=group_id)

gom.api.extensions.diagrams.SVGDiagram.sanitize_plot_data

gom.api.extensions.diagrams.SVGDiagram.sanitize_plot_data(self: Any, plot_data: Any): None

Normalize the plot() return value into the dictionary format expected by the SVGDiagram JavaScript renderer.

If plot_data is a raw SVG string, it is wrapped via finish_plot().
If it is a dictionary without a 'svg_string' key, it is treated as raw data.
Otherwise, missing keys ('overlay', 'diagram_id') are filled in automatically.

Users do not need to call this method directly — it is invoked internally by plot_all() after each call to plot().

gom.api.extensions.diagrams.ScriptedDiagram

Deprecated alias for CustomDiagram. Use CustomDiagram instead.

gom.api.extensions.inspections

gom.api.extensions.inspections.Curve

Custom curve inspection

A curve inspection computes point-wise deviation values along a curve element. Each point on the target curve receives an individual actual value, and a corresponding nominal value is provided either per-point or as a single common reference. This inspection type is used for section curve analysis, profile checks, or any measurement where deviations are distributed along a 1D path.

The number of actual values must match the number of points in the target curve element. The framework maps each value in the "actual_values" list to the corresponding curve point by index. The point order is determined by the target element’s internal representation.

Please see the base class CustomInspection for a discussion of the properties all custom inspection types have in common, including target element handling, dimensions, tolerances, and the element lifecycle.

Return value

The compute() function must return a dictionary with the following keys. Two formats are supported for specifying nominal values — choose the one that fits your use case:

Format A: Per-point nominal values

Use this format when each curve point has an individual nominal value:

{
    "actual_values": [float, ...],    # Per-point actual values (one per curve point)
    "nominal_values": [float, ...],   # Per-point nominal values (same length as actual_values)
    "target_element": gom.Item,       # The curve element being inspected
    "data": {...}                     # Optional: custom data stored with the element
}

Format B: Common nominal value

Use this format when all curve points share the same nominal value:

{
    "actual_values": [float, ...],    # Per-point actual values (one per curve point)
    "nominal_value": float,           # Single nominal value applied to all points
    "target_element": gom.Item,       # The curve element being inspected
    "data": {...}                     # Optional: custom data stored with the element
}

Key descriptions:

"actual_values" — A list or tuple of float values, one per curve point. Each value represents the actual (measured) value at that point, in the base unit of the chosen dimension. The length must match the number of points in the target curve element.
"nominal_values" — (Format A) A list or tuple of float values of the same length as "actual_values". Each entry is the nominal reference value for the corresponding curve point.
"nominal_value" — (Format B) A single float used as the nominal reference for all curve points. This is a convenience shorthand for the common case where all points share the same nominal.
"target_element" — The curve element being inspected. Must be a gom.Item.
"data" — Optional dictionary for persisting custom metadata with the element.

The framework computes the per-point deviation as actual_values[i] - nominal_values[i] (or actual_values[i] - nominal_value in Format B) automatically.

Note: You must provide either "nominal_values" (list) or "nominal_value" (scalar), but not both. If "nominal_value" cannot be parsed as a single float, the framework falls back to expecting "nominal_values" as a list.

Minimal example

import gom
import gom.api.extensions.inspections
from gom import apicontribution

@apicontribution
class SectionDeviationCheck(gom.api.extensions.inspections.Curve):

    def __init__(self):
        super().__init__(
            id='examples.section_deviation',
            description='Section Deviation Check',
            dimension='length',
            abbreviation='SecDev'
        )

    def dialog(self, context, args):
        return self.show_dialog(context, args, '/dialogs/section_check.gdlg')

    def compute(self, context, values):
        target = values['slct_element']
        # Compute per-point actual values along the curve
        actuals = [compute_actual(point) for point in target.data.coordinate]
        return {
            "actual_values": actuals,
            "nominal_value": 0.0,  # All points share the same nominal (e.g. zero deviation)
            "target_element": target,
        }

gom.run_api()

Caveat: The actual values list must have exactly as many entries as the target curve has points. If per-point nominals are used, "nominal_values" must also have the same length. A length mismatch will cause a runtime error.

gom.api.extensions.inspections.Curve.init

gom.api.extensions.inspections.Curve.__init__(self: Any, id: str, description: str, dimension: str, abbreviation: str, help_id: str): None

Parameters:

id (str) – Unique inspection id string (e.g. "mycompany.section_deviation").
description (str) – Human readable name displayed in menus (e.g. "Section Deviation Check").
dimension (str) – Physical dimension of the inspection values (e.g. "length"). Use gom.api.customelements.get_dimensions() to query valid identifiers.
abbreviation (str) – Short abbreviation for element names and labels (e.g. "SecDev").
help_id (str) – Optional help page identifier. Defaults to None.

Constructor for a custom curve inspection

Creates a curve inspection element type that computes per-point actual values along a curve.

gom.api.extensions.inspections.CustomInspection

Base class for all custom inspections

Custom inspections are used to inspect elements in the 3D view. They compute deviation values between nominal and actual measurements on geometric elements. There are three specialized subclasses for the supported inspection types:

Scalar — inspects a single scalar property (e.g. a circle’s radius, a distance, an angle).
Surface — inspects point-wise deviations on a surface (one deviation value per surface point).
Curve — inspects point-wise deviations along a curve (one deviation value per curve point).

Each subclass inherits from CustomInspection and defines its own expected return value format from the compute() function. This base class defines the common properties shared by all inspection types: the element identity, dimension, abbreviation, and the target element concept.

Lifecycle overview

A custom inspection follows this lifecycle:

The class is registered via the @apicontribution decorator when the script is started as a service.
When the user creates a new inspection, dialog() is called to present the configuration UI.
After the dialog is confirmed, compute() (or compute_stages()) is called to calculate the inspection result for each measurement stage.
The framework stores the result and displays the inspection in labels, tables, reports, and the 3D view.
On recalculation, compute() / compute_stages() is called again for the affected stages.

The target element

Every custom inspection must reference a target element — the geometric element being inspected (e.g. a mesh, a curve, a circle). The compute() function must explicitly return this element in a key named "target_element". There is no automatic insertion of any selected element; the script is fully in control of which element is inspected.

Typically, the target element is selected by the user in the inspection’s dialog via a selection element widget, and then forwarded in the compute() return value:

def compute(self, context, values):
    return {
        "target_element": values['slct_element'],  # From a dialog selection widget
        "nominal": 1.0,
        "actual": 1.2,
    }

If the check should inspect the currently selected element in the 3D view instead, this must be coded explicitly:

import gom.api.selection

def compute(self, context, values):
    selected = gom.api.selection.get_selected_elements()
    if len(selected) != 1:
        raise ValueError("Please select exactly one element to inspect")

    return {
        "target_element": selected[0],
        "nominal": 1.0,
        "actual": 1.2,
    }

Optional custom data

All inspection types support an optional "data" key in the compute() return dictionary. This dictionary is stored with the element and can be used to persist arbitrary metadata, intermediate results, or configuration. See the CustomElement base class documentation for details on custom data access via element tokens.

return {
    "target_element": values['slct_element'],
    "nominal": 1.0,
    "actual": 1.2,
    "data": {"computation_method": "least_squares", "iteration_count": 5}
}

Element filter functions

When using a selection element widget in the dialog, an element filter function can be attached to restrict which elements the user can select. This is done by assigning a filter callable to the widget’s filter property:

def dialog(self, context, args):
    dlg = gom.api.dialog.create(context, '/dialogs/my_check.gdlg')
    dlg.slct_element.filter = self.element_filter
    self.initialize_dialog(context, dlg, args)
    return self.apply_dialog(dlg, gom.api.dialog.show(context, dlg))

def element_filter(self, element):
    # Only allow mesh elements to be selected
    return element.type == 'mesh'

Naming convention

The element name is typically composed of the target element’s name and the inspection’s abbreviation, e.g. "Circle 1.ScrSca". This can be set automatically in the event() handler when the target element selection changes.

gom.api.extensions.inspections.CustomInspection.init

gom.api.extensions.inspections.CustomInspection.__init__(self: Any, id: str, description: str, element_type: str, dimension: str, abbreviation: str, help_id: str): None

Parameters:

id (str) – Unique inspection id string (e.g. "mycompany.scalar_radius_check"). Must contain only lower case characters, dots, and underscores.
description (str) – Human readable name displayed in menus and element lists (e.g. "Radius Check").
element_type (str) – Type of the generated inspection element. Set automatically by subclasses ("inspection.scalar", "inspection.surface", "inspection.curve").
dimension (str) – Dimension of the inspection value (e.g. "length", "angle"). Determines the base unit for computation and the available display units in the user preferences. Use gom.api.customelements.get_dimensions() to query valid identifiers.
abbreviation (str) – Short abbreviation of the inspection type as shown in element names and labels (e.g. "ScrSca").
help_id (str) – Optional help page identifier for context-sensitive help. Pass None if not applicable.

Constructor

Initializes a custom inspection element with the given identity, dimension, and display properties. This constructor is not called directly — use one of the subclasses (Scalar, Surface, Curve) which set the element_type parameter automatically.

Units and dimensions

In principle, the term

‘dimension’ refers to a physical dimension which is measured, like ‘length’, ‘time’, ‘angle’, ‘force’, ‘pressure’, etc. while
‘unit’ refers to a specific unit to quantify that dimension, like the units ‘inch’, ‘mm’, ‘m’, … for the dimension ‘length’.

These two terms are often mixed up, but dimension describes the type of physical quantity, while unit describes the scale or standard used to measure it. When using custom inspections, it is important to understand that

the ‘dimension’ of an element must be set explicitly in the constructor while
all internal calculations are done in the base unit of that dimension (which is ‘mm’ for ‘length’, ‘s’ for ‘time’, ‘rad’ for ‘angle’, etc.) and
a setting in the ZEISS INSPECT preferences defines the displayed unit for that dimension, like ‘inch’ or ‘mm’ for ‘length’.

So, for example, if a custom inspection is computing a value with the dimension ‘angle’, the base unit of that dimension is always ‘radian’. The computed values must be in radians (e.g. in the range [0, 2*pi] for a full circle) and the framework will transform them to the currently configured display unit automatically. If the user has set the display unit to ‘degree’, the computed value is converted internally in labels, tables, reports etc. to the range [0, 360] and displayed as such.

Important: Always compute and return values in the base unit of the chosen dimension. Never pre-convert to display units — the framework handles this conversion automatically based on the user’s preference settings.

The available dimensions can change between ZEISS INSPECT versions. Use the gom.api.customelements.get_dimensions() function to query the list of valid dimension identifiers at runtime and choose one of the returned ids as the dimension parameter:

import gom.api.customelements

for id in gom.api.customelements.get_dimensions():
    info = gom.api.customelements.get_dimension_definition(id)
    print(f"Dimension id: {id}, name: {info['name']}, units: {info['units']}, default: {info['default']}")

Common dimension identifiers include (non-exhaustive, subject to change):

"length" — base unit: mm
"angle" — base unit: rad
"time" — base unit: s
"force" — base unit: N
"pressure" — base unit: MPa

Abbreviation

The abbreviation parameter is a short string (typically 3–6 characters) used to identify the inspection type in element names, labels, and menus. It is appended to the target element’s name to form the inspection element’s display name, for example "Circle 1.ScrSca" where "ScrSca" is the abbreviation. Choose a concise, descriptive abbreviation that helps users distinguish this inspection type from others.

Tolerances

Inspections support tolerances — limits that define whether the inspected deviation is within specification. Tolerances are configured by the user through a special "tolerance" dialog widget and are evaluated by the ZEISS INSPECT framework automatically. To support tolerances:

Add a tolerance widget (type "tolerances") named "tolerance" to the element’s dialog layout.
Forward the tolerance value in the apply_dialog() override:

def apply_dialog(self, dlg, result):
    params = super().apply_dialog(dlg, result)
    params['name'] = result['name']
    params['tolerance'] = result['tolerance']
    return params

The resulting parameter dictionary then has the following structure:

{
    'name': 'Circle 1.ScrSca',
    'tolerance': {'lower': -0.1, 'upper': 0.2},
    'values': {'slct_element': <gom.Item>, 'threshold': 0.5}
}

The 'name' and 'tolerance' keys are consumed by the framework; the 'values' dictionary is forwarded to the compute() function as the values parameter.

Help ID

The optional help_id parameter links this inspection type to a help page in the ZEISS INSPECT documentation system. When set, the framework can open context-sensitive help for the user. If not needed, pass None.

gom.api.extensions.inspections.Scalar

Custom scalar inspection

A scalar inspection computes a single nominal/actual value pair for a target element. This is the most common inspection type, used for checking individual scalar properties such as radii, distances, angles, positions, or any other single numeric measurement.

The deviation (actual − nominal) is computed automatically by the framework and can be evaluated against tolerances. The resulting inspection element is displayed with its deviation value in labels, tables, reports, and the 3D view.

Please see the base class CustomInspection for a discussion of the properties all custom inspection types have in common, including target element handling, dimensions, tolerances, and the element lifecycle.

Return value

The compute() function must return a dictionary with the following keys:

{
    "nominal": float,           # Nominal (expected) value in the base unit of the chosen dimension
    "actual": float,            # Actual (measured) value in the base unit of the chosen dimension
    "target_element": gom.Item, # The geometric element being inspected
    "data": {...}               # Optional: custom data stored with the element (see CustomElement docs)
}

"nominal" — The expected reference value. Must be a float (or int, which is auto-converted).
"actual" — The measured or computed value. Must be a float (or int, which is auto-converted).
"target_element" — The inspected geometric element (e.g. a mesh, circle, plane). Must be a gom.Item.
"data" — Optional dictionary for persisting custom metadata with the element.

The framework computes the deviation as actual - nominal automatically. All values must be in the base unit of the dimension specified in the constructor (e.g. mm for ‘length’, rad for ‘angle’).

Minimal example

import gom
import gom.api.extensions.inspections
from gom import apicontribution

@apicontribution
class RadiusCheck(gom.api.extensions.inspections.Scalar):

    def __init__(self):
        super().__init__(
            id='examples.radius_check',
            description='Radius Check',
            dimension='length',
            abbreviation='RadChk'
        )

    def dialog(self, context, args):
        return self.show_dialog(context, args, '/dialogs/radius_check.gdlg')

    def compute(self, context, values):
        target = values['slct_element']
        return {
            "nominal": values['nominal_radius'],
            "actual": target.radius,
            "target_element": target,
        }

gom.run_api()

gom.api.extensions.inspections.Scalar.init

gom.api.extensions.inspections.Scalar.__init__(self: Any, id: str, description: str, dimension: str, abbreviation: str, help_id: str): None

Parameters:

id (str) – Unique inspection id string (e.g. "mycompany.radius_check").
description (str) – Human readable name displayed in menus (e.g. "Radius Check").
dimension (str) – Physical dimension of the inspection value (e.g. "length", "angle"). Use gom.api.customelements.get_dimensions() to query valid identifiers.
abbreviation (str) – Short abbreviation for element names and labels (e.g. "RadChk").
help_id (str) – Optional help page identifier. Defaults to None.

Constructor for a custom scalar inspection

Creates a scalar inspection element type that computes a single nominal/actual value pair.

gom.api.extensions.inspections.ScriptedInspection

Deprecated alias for CustomInspection. Use CustomInspection instead.

gom.api.extensions.inspections.Surface

Custom surface inspection

A surface inspection computes point-wise deviation values on a surface element. Each point on the target surface receives an individual deviation value, enabling color-coded deviation maps in the 3D view. This inspection type is used for surface comparison checks, flatness analysis, or any measurement where deviations vary spatially across a surface.

The number of deviation values must match the number of points in the target surface element. The framework maps each value in the "deviation_values" list to the corresponding surface point by index. The order of points is determined by the target element’s internal tessellation; querying the element’s point data will reveal the expected count and order.

Please see the base class CustomInspection for a discussion of the properties all custom inspection types have in common, including target element handling, dimensions, tolerances, and the element lifecycle.

Return value

The compute() function must return a dictionary with the following keys:

{
    "deviation_values": [float, float, ...],  # Per-point deviations (one per surface point)
    "nominal": float,                         # Common nominal value (reference baseline)
    "target_element": gom.Item,               # The surface element being inspected
    "data": {...}                             # Optional: custom data stored with the element
}

"deviation_values" — A list or tuple of float values, one per point on the target surface. The length must match the number of points in the target element’s surface mesh. Each value represents the deviation at that point, in the base unit of the chosen dimension.
"nominal" — A single float representing the common nominal (reference) value for all points. Must be a float (or int, which is auto-converted).
"target_element" — The surface element being inspected. Must be a gom.Item.
"data" — Optional dictionary for persisting custom metadata with the element.

Minimal example

import gom
import gom.api.extensions.inspections
from gom import apicontribution

@apicontribution
class FlatnessCheck(gom.api.extensions.inspections.Surface):

    def __init__(self):
        super().__init__(
            id='examples.flatness_check',
            description='Flatness Check',
            dimension='length',
            abbreviation='Flat'
        )

    def dialog(self, context, args):
        return self.show_dialog(context, args, '/dialogs/flatness_check.gdlg')

    def compute(self, context, values):
        target = values['slct_element']
        # Compute per-point deviations from a reference plane
        deviations = [compute_deviation(point) for point in target.data.coordinate]
        return {
            "deviation_values": deviations,
            "nominal": 0.0,
            "target_element": target,
        }

gom.run_api()

Caveat: The deviation values list must have exactly as many entries as the target surface has points. A length mismatch will cause a runtime error. When implementing, always derive the list length from the target element’s actual point data rather than using hardcoded sizes.

gom.api.extensions.inspections.Surface.init

gom.api.extensions.inspections.Surface.__init__(self: Any, id: str, description: str, dimension: str, abbreviation: str, help_id: str): None

Parameters:

id (str) – Unique inspection id string (e.g. "mycompany.flatness_check").
description (str) – Human readable name displayed in menus (e.g. "Flatness Check").
dimension (str) – Physical dimension of the deviation values (e.g. "length"). Use gom.api.customelements.get_dimensions() to query valid identifiers.
abbreviation (str) – Short abbreviation for element names and labels (e.g. "Flat").
help_id (str) – Optional help page identifier. Defaults to None.

Constructor for a custom surface inspection

Creates a surface inspection element type that computes per-point deviation values on a surface.

gom.api.extensions.nominals

gom.api.extensions.nominals.Circle

Custom nominal circle element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "center"   : (x: float, y: float, z: float), // Centerpoint of the circle
    "direction": (x: float, y: float, z: float), // Direction/normal of the circle
    "radius"   : r: float,                       // Radius of the circle
    "data": {...}                                // Optional element data, stored with the element
}

gom.api.extensions.nominals.Cone

Custom nominal cone element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "point1": (x: float, y: float, z: float), // First point of the cone (circle center)
    "radius1": r1: float,                     // Radius of the first circle
    "point2": (x: float, y: float, z: float), // Second point of the cone (circle center)
    "radius2": r2: float,                     // Radius of the second circle
    "data": {...}                             // Optional element data, stored with the element
}

gom.api.extensions.nominals.Curve

Custom nominal curve element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "plane": p: Plane  // Plane of the curve (optional)
    "curves": [Curve], // List of curves
    "data": {...}      // Optional element data, stored with the element
}

The format of the Curve object is:

{
    "points": [(x: float, y: float, z: float), ...] // List of points
}

See the Plane element for the formats of the plane object.

gom.api.extensions.nominals.CustomNominal

This class is the base class for all custom nominals

gom.api.extensions.nominals.CustomNominal.init

gom.api.extensions.nominals.CustomNominal.__init__(self: Any, id: str, description: str, element_type: str, help_id: str): None

Parameters:

id (str) – Custom nominal id string
description (str) – Human readable name, will appear in menus
element_type (str) – Type of the generated element (point, line, …)

Constructor

gom.api.extensions.nominals.Cylinder

Custom nominal cylinder element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "center": (x: float, y: float, z: float),    // Base point of the cylinder
    "direction": (x: float, y: float, z: float), // Direction of the cylinder
    "radius": r: float,                          // Radius of the cylinder
    "data": {...}                                // Optional element data, stored with the element
}

gom.api.extensions.nominals.Distance

Custom nominal distance element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "point1": (x: float, y: float, z: float), // First point of the distance
    "point2": (x: float, y: float, z: float), // Second point of the distance
    "data": {...}                             // Optional element data, stored with the element
}

gom.api.extensions.nominals.Plane

Custom nominal plane element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "normal": (x: float, y: float, z: float), // Normal of the plane
    "point":  (x: float, y: float, z: float), // Base point of the plane
    "data": {...}                             // Optional element data, stored with the element
}

or

{
    "point1": (x: float, y: float, z: float),  // Point 1 of the plane
    "point2": (x: float, y: float, z: float),  // Point 2 of the plane
    "point3": (x: float, y: float, z: float),  // Point 3 of the plane
    "data": {...}                              // Optional element data, stored with the element
}

or

{
    "plane": Reference, // Reference to another plane element of coordinate system
    "data": {...}       // Optional element data, stored with the element
}

gom.api.extensions.nominals.Point

Custom nominal point element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "value": (x: float, y: float, z: float), // The point in 3D space.
    "data": {...}                            // Optional element data, stored with the element
}

gom.api.extensions.nominals.PointCloud

Custom nominal point cloud element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "points":  [(x: float, y: float, z: float), ...], // List of points
    "normals": [(x: float, y: float, z: float), ...], // List of normals for each point
    "data": {...}                                     // Optional element data, stored with the element
}

The points and normals lists must have the same length — each normal corresponds to the point at the same index.

gom.api.extensions.nominals.ScriptedNominal

Deprecated alias for CustomNominal. Use CustomNominal instead.

gom.api.extensions.nominals.ScriptedNominal.compute_stage

gom.api.extensions.nominals.ScriptedNominal.compute_stage(self: Any, context: Any, values: Any): None

Parameters:

context (Any) – Script context object for the current stage.
values (Any) – Dialog widget values dictionary.

Returns:

Result of compute(), forwarded unchanged.

Return type:

None

Delegate single-stage computation to the user-supplied compute() method.

Legacy add-ons that derive from ‘ScriptedNominal’ are expected to implement compute() only (the pre-rename contract). This implementation satisfies the abstract compute_stage() requirement of CustomCalculationElement while keeping the user-visible API unchanged.

gom.api.extensions.nominals.Section

Custom nominal section element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "curves": [Curve],
    "plane": Plane,       // Optional
    "cone": Cone,         // Optional
    "cylinder": Cylinder, // Optional
    "data": {...}         // Optional element data, stored with the element
}

The format of the Curve object is:

{
    "points":  [(x: float, y: float, z: float), ...] // List of points
    "normals": [(x: float, y: float, z: float), ...] // List of normals for each point
}

See the Plane, Cone and Cylinder element for the formats of the plane, cone and cylinder object.

gom.api.extensions.nominals.Surface

Custom nominal surface element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "vertices":  [(x: float, y: float, z: float), ...], // List of vertices
    "triangles": [(i1: int, i2: int, i3: int), ...],    // List of triangles (vertex indices, 0-based)
    "data": {...}                                       // Optional element data, stored with the element
}

The triangles list contains triplets of indices into the vertices list, defining the surface mesh.

Example

def compute (self, context, values):
    # A simple quad surface made of two triangles
    vertices = [
        (0.0, 0.0, 0.0),
        (10.0, 0.0, 0.0),
        (10.0, 10.0, 0.0),
        (0.0, 10.0, 0.0)
    ]
    triangles = [
        (0, 1, 2),
        (0, 2, 3)
    ]

    return {
        "vertices":  vertices,
        "triangles": triangles
    }

gom.api.extensions.nominals.SurfaceCurve

Custom nominal surface curve element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "curves": [Curve], // Curves
    "data": {...}      // Optional element data, stored with the element
}

The format of the Curve object is:

{
    "points":  [(x: float, y: float, z: float), ...] // List of points
    "normals": [(x: float, y: float, z: float), ...] // List of normals for each point
}

gom.api.extensions.nominals.ValueElement

Custom nominal value element

The expected parameters from the element’s compute () function is a map with the following format:

{
    "value": v: float, // Value of the element
    "data": {...}      // Optional element data, stored with the element
}

gom.api.extensions.sequence

Custom sequence elements

This module contains the base class for custom sequence elements.

What are custom sequence elements?

A custom sequence element is a framework for combining multiple ZEISS INSPECT creation commands into a single coordinated unit. Unlike custom actuals or custom nominals — which each define a single element that participates in the dependency graph by computing geometry in a compute() function — a custom sequence builds the dependency graph. It orchestrates the creation of multiple regular elements (points, distances, inspections, etc.) using the standard ZEISS INSPECT creation commands and groups them into a logical unit.

How do custom sequences differ from custom actuals and nominals?

Aspect	Custom Actuals / Nominals	Custom Sequences
Role in the dependency graph	Participate as individual elements. Each element computes its own geometry via a `compute()` function and is managed by the recalculation engine.	Build the dependency graph. They create multiple regular elements using standard creation commands. The created elements then participate in the graph independently.
What they create	A single element with computed values (point coordinates, surface mesh, etc.)	A sequence of regular elements grouped under a leading element
Computation	`compute()` / `compute_stage()` returns geometry data for one element	`create()` calls multiple `gom.script.*` creation commands and returns the list of created elements
Recalculation	Managed by the recalculation engine; `compute()` is called automatically when inputs change	Elements created by the sequence are regular elements and are recalculated individually by the standard engine
Editing	Re-opens the element’s dialog and calls `compute()` again	Re-opens the sequence dialog and calls `edit()` to adjust the existing elements

Lifecycle of a custom sequence

Dialog — The user opens the creation dialog (inherited from CustomElement). The dialog collects configuration parameters (e.g., a distance value, a mode selection).
Create — The create() method is called with the dialog parameters. It uses standard ZEISS INSPECT creation commands (gom.script.primitive.create_point(), gom.script.inspection.create_distance_by_2_points(), etc.) to create regular elements. It returns a dictionary identifying all created elements and which one is the leading element.
Elements live in the dependency graph — After creation, every element of the sequence is a regular ZEISS INSPECT element. They participate in the dependency graph like any other element: they have recalculation dependencies, can be inspected, appear in reports, etc. The custom sequence framework has no further involvement in their recalculation.
Edit (whole sequence) — When the user edits the leading element, the edit() method is called. It receives the current elements and the creation arguments and uses gom.script.sys.edit_creation_parameters() to adjust the existing elements.
Edit (single child) — When the user edits a child element individually (if edit_child_elements_separately is True), the child’s native edit dialog opens. After the edit, on_edited() is called so the sequence can react to the change and propagate new creation arguments back to edit().

Relationship to the CustomElement base class

CustomSequence inherits from CustomElement, which provides the dialog framework (dialog(), event(), is_visible(), show_dialog(), etc.). These methods work the same way as for custom actuals and nominals. See the CustomElement documentation for details on dialog definition, event handling, and custom data storage.

gom.api.extensions.sequence.CustomSequence

Base class for custom sequence elements

A custom sequence element is a framework for grouping multiple ZEISS INSPECT creation commands into a single coordinated unit. Instead of computing geometry like custom actuals or nominals, a custom sequence orchestrates the creation of regular elements using standard creation commands and manages them as a logical group.

Leading element and child elements

Every sequence consists of exactly one leading element and zero or more child elements:

The leading element is the representative of the entire sequence. Editing the leading element opens the sequence dialog (not the element’s native dialog). Deleting the leading element deletes the entire sequence. The leading element’s name is the “main” name of the sequence, typically set by the user in the creation dialog’s element name widget.
Child elements are the remaining elements of the sequence. They can optionally be edited individually if edit_child_elements_separately is set to True (the default). Their names should be generated via generate_element_name() to ensure uniqueness and visual grouping.

How elements become part of a sequence

The create() method uses standard ZEISS INSPECT creation commands (e.g., gom.script.primitive.create_point(), gom.script.inspection.create_distance_by_2_points()) to create elements. These are regular ZEISS INSPECT elements — they participate in the dependency graph, are recalculated by the standard engine, and can be inspected, reported, and queried like any built-in element. The sequence framework only manages the grouping and coordinated editing of these elements; it does not interfere with their individual recalculation.

Querying sequence structure

Since a sequence is not a special element type in ZEISS INSPECT but a grouping of regular elements, the sequence structure is queried via static methods of this class:

CustomSequence.get_sequence_elements(leading_element) — returns all elements of the sequence
CustomSequence.get_child_elements(leading_element) — returns only the child elements
CustomSequence.get_leading_element(child_element) — returns the leading element for a child

Example:

from gom.api.extensions.sequence import CustomSequence

# Given a leading element of a custom sequence...
leading_element = gom.app.project.actual_elements['Distance 1']

# ...get all elements of the sequence (in creation order)
elements = CustomSequence.get_sequence_elements(leading_element)

# ...get only child elements (excluding the leading element)
children = CustomSequence.get_child_elements(leading_element)

# Given a child element, find its leading element
child = gom.app.project.actual_elements['Distance 1 ● First point 1']
leading = CustomSequence.get_leading_element(child)

Complete example: A custom sequence creating a distance from two points

The following example shows a complete custom sequence implementation that creates two points and a distance element. The distance is the leading element, and the two points are child elements.

import gom
import gom.api.dialog
from gom.api.extensions.sequence import CustomSequence
from gom import apicontribution

@apicontribution
class DistanceSequence(CustomSequence):

    def __init__(self):
        super().__init__(
            id='example.distance_sequence',
            description='Distance from Two Points'
        )

    def dialog(self, context, args):
        return self.show_dialog(context, args, '/dialogs/distance_dialog.gdlg')

    def create(self, context, name, args):
        distance = args['distance']

        POINT_1 = gom.script.primitive.create_point(
            name=self.generate_element_name(name, 'First point'),
            point={'point': gom.Vec3d(0.0, 0.0, 0.0)})

        POINT_2 = gom.script.primitive.create_point(
            name=self.generate_element_name(name, 'Second point'),
            point={'point': gom.Vec3d(distance, 0.0, 0.0)})

        DISTANCE = gom.script.inspection.create_distance_by_2_points(
            name=name,
            point1=POINT_1,
            point2=POINT_2)

        return {'elements': [POINT_1, POINT_2, DISTANCE], 'leading': DISTANCE}

    def edit(self, context, elements, args):
        POINT_1, POINT_2, DISTANCE = elements
        distance = args['distance']

        gom.script.sys.edit_creation_parameters(
            element=POINT_2,
            point={'point': gom.Vec3d(distance, 0.0, 0.0)})

    def on_edited(self, context, args, parameters):
        POINT_1_PARAMS, POINT_2_PARAMS, DISTANCE_PARAMS = parameters

        if POINT_2_PARAMS:
            args['distance'] = POINT_2_PARAMS['point'].point.x

        return args

gom.run_api()

gom.api.extensions.sequence.CustomSequence.init

gom.api.extensions.sequence.CustomSequence.__init__(self: Any, id: str, description: str, properties: Dict[str, Any]): None

Parameters:

id (str) – Unique contribution id, like example.distance_sequence. The id may contain lower case characters, grouping dots and underscores.
description (str) – Human readable contribution description, displayed in menus
properties (Dict[str, Any]) – Optional configuration dictionary (see above)

Constructor

Configuration

The following properties are supported for custom sequence elements. They can be passed in the constructor via the properties dictionary and will be used to configure the behavior:

edit_child_elements_separately (bool): Controls whether child elements of the sequence can be edited individually.
- If True (the default), right-clicking a child element and choosing “Edit” opens that element’s native creation dialog. After the user confirms the edit, the on_edited() callback is invoked so the sequence can synchronize its creation arguments. This mode is useful when child elements have meaningful independent parameters.
- If False, editing any child element will open the sequence’s dialog instead, editing the entire sequence as a whole. This mode is useful when child element parameters are always derived from the sequence-level configuration and should not be modified independently.

gom.api.extensions.sequence.CustomSequence.create

gom.api.extensions.sequence.CustomSequence.create(self: Any, context: Any, name: Any, args: Any): None

Parameters:

context (Any) – Script context object containing execution-related parameters
name (Any) – Name for the leading element, as entered in the dialog’s element name widget
args (Any) – Creation arguments from the dialog (widget values)

Returns:

Dictionary with keys elements (list of all created elements) and leading (the leading element of the sequence)

Return type:

None

Called to create the initial sequence of elements

This is the central creation function of a custom sequence. It is invoked when the user confirms the creation dialog for the first time. The function must use standard ZEISS INSPECT creation commands (gom.script.primitive.*, gom.script.inspection.*, etc.) to create the elements that form the sequence, and return a dictionary identifying all created elements and the leading element.

Important: The elements created here are regular ZEISS INSPECT elements. After creation, they participate in the dependency graph like any built-in element and are recalculated by the standard engine. The custom sequence framework does not interfere with their recalculation — it only manages the grouping and coordinated editing.

Return value

The function must return a dictionary with two keys:

elements — A list of all created elements (including the leading element), in the order they were created. This order is preserved and used later in edit() and on_edited() to identify elements by position.
leading — The leading element of the sequence. This element represents the whole sequence: editing it opens the sequence dialog, deleting it removes the entire sequence.

Element naming

Element names must be unique within a project. Use generate_element_name() to create child element names that are visually grouped with the leading element. The leading element itself should use the name parameter directly (which comes from the dialog’s element name widget).

Example:

def create(self, context, name, args):

    distance = args['distance']

    # Create child elements with generated names
    POINT_1 = gom.script.primitive.create_point(
        name=self.generate_element_name(name, 'First point'),
        point={'point': gom.Vec3d(0.0, 0.0, 0.0)})

    POINT_2 = gom.script.primitive.create_point(
        name=self.generate_element_name(name, 'Second point'),
        point={'point': gom.Vec3d(distance, 0.0, 0.0)})

    # The leading element uses the 'name' parameter directly
    DISTANCE = gom.script.inspection.create_distance_by_2_points(
        name=name,
        point1=POINT_1,
        point2=POINT_2)

    # Return all elements and identify the leading element
    return {'elements': [POINT_1, POINT_2, DISTANCE], 'leading': DISTANCE}

gom.api.extensions.sequence.CustomSequence.edit

gom.api.extensions.sequence.CustomSequence.edit(self: Any, context: Any, elements: Any, args: Any): None

Parameters:

context (Any) – Script context object containing execution-related parameters
elements (Any) – List of current sequence elements, in the same order as returned by create()
args (Any) – Current creation arguments (from the dialog or from on_edited())

Called to edit an existing custom sequence

This function is invoked when the user edits the sequence — either by editing the leading element directly, or by editing a child element when edit_child_elements_separately is False. It also serves as the re-application function after on_edited() returns updated creation arguments.

The function receives the current sequence elements in the same order as originally returned by create(), together with the (possibly updated) creation arguments. It must reconfigure the existing elements accordingly using gom.script.sys.edit_creation_parameters().

Important: This function modifies existing elements — it does not create new ones. The elements are the same objects that were originally created by create(). Use gom.script.sys.edit_creation_parameters() to change their parameters.

Example:

def edit(self, context, elements, args):

    # Unpack elements in the same order as returned by create()
    POINT_1, POINT_2, DISTANCE = elements

    # Apply updated parameters
    distance = args['distance']

    gom.script.sys.edit_creation_parameters(
        element=POINT_2,
        point={'point': gom.Vec3d(distance, 0.0, 0.0)})

gom.api.extensions.sequence.CustomSequence.generate_element_name

gom.api.extensions.sequence.CustomSequence.generate_element_name(self: Any, leading_name: Any, basename: Any): None

Parameters:

leading_name (Any) – Name of the leading element (typically the name parameter from create())
basename (Any) – Descriptive base name for the child element (e.g., 'First point', 'Line')

Returns:

Generated name string in the format {leading_name} ● {basename}

Return type:

None

Generate a unique, visually grouped name for a child element of the sequence

Child elements of a custom sequence should have names that clearly identify them as belonging to the sequence. This function generates such names by combining the leading element’s name with a base name, separated by a ● character.

Naming pattern: {leading_name} ● {basename}

For example, for a sequence named Distance 1 with child elements using base names First point and Second point, the generated names will be:

Distance 1 ● First point
Distance 1 ● Second point

Usage: Call this function in create() when naming child elements. The leading element itself should use the name parameter from create() directly (not this function).

Example:

def create(self, context, name, args):
    # Child elements use generate_element_name()
    POINT_1 = gom.script.primitive.create_point(
        name=self.generate_element_name(name, 'First point'),
        point={'point': gom.Vec3d(0.0, 0.0, 0.0)})

    # The leading element uses 'name' directly
    DISTANCE = gom.script.inspection.create_distance_by_2_points(
        name=name, ...)

    return {'elements': [POINT_1, DISTANCE], 'leading': DISTANCE}

gom.api.extensions.sequence.CustomSequence.get_child_elements

gom.api.extensions.sequence.CustomSequence.get_child_elements(leading_element: Any): Any

Parameters:: leading_element (Any) – Leading element of the custom sequence
Returns:: List of child elements (excluding the leading element), in creation order
Return type:: Any

Return only the child elements of a custom sequence (excluding the leading element)

Returns a list of all elements belonging to the sequence identified by the given leading element, excluding the leading element itself. The elements are returned in creation order. Returns an empty list if the sequence has no child elements.

Example:

from gom.api.extensions.sequence import CustomSequence

leading = gom.app.project.actual_elements['Distance 1']
children = CustomSequence.get_child_elements(leading)
print(f'Sequence has {len(children)} child element(s)')

gom.api.extensions.sequence.CustomSequence.get_leading_element

gom.api.extensions.sequence.CustomSequence.get_leading_element(child_element: Any): Any

Parameters:: child_element (Any) – Child element of the custom sequence
Returns:: Leading element of the custom sequence, or None if not found
Return type:: Any

Return the leading element for a given child element

Given any child element that belongs to a custom sequence, this function returns the leading element of that sequence. Returns None if the element is not part of a sequence or if the leading element cannot be determined.

Example:

from gom.api.extensions.sequence import CustomSequence

child = gom.app.project.actual_elements['Distance 1 ● First point 1']
leading = CustomSequence.get_leading_element(child)
if leading:
    print(f'This element belongs to sequence: {leading.name}')

gom.api.extensions.sequence.CustomSequence.get_sequence_elements

gom.api.extensions.sequence.CustomSequence.get_sequence_elements(leading_element: Any): Any

Parameters:: leading_element (Any) – Leading element of the custom sequence
Returns:: List of all elements of the custom sequence, in creation order
Return type:: Any

Return all elements of the custom sequence for a given leading element

Returns the complete list of elements belonging to the sequence identified by the given leading element, in the same order as originally returned by create(). The list includes the leading element itself.

Example:

from gom.api.extensions.sequence import CustomSequence

leading = gom.app.project.actual_elements['Distance 1']
elements = CustomSequence.get_sequence_elements(leading)
for e in elements:
    print(e.name)

gom.api.extensions.sequence.CustomSequence.on_edited

gom.api.extensions.sequence.CustomSequence.on_edited(self: Any, context: Any, args: Any, parameters: Any): None

Parameters:

context (Any) – Script context object containing execution-related parameters
args (Any) – Current creation arguments of the sequence (as originally passed to create())
parameters (Any) – List of edited parameters for each sequence element (in creation order). Each entry is either None (element was not edited) or a dictionary of changed parameters.

Returns:

Updated creation arguments dictionary. These will be passed to edit() to re-apply the sequence.

Return type:

None

Called when a child element of the sequence has been edited individually

This callback is invoked when a child element is edited via its native dialog (only possible when edit_child_elements_separately is True). It allows the sequence to react to the change and update its creation arguments accordingly.

How it works:

The user edits a child element individually (e.g., moves a point).
ZEISS INSPECT calls on_edited() with the current sequence creation arguments and a list of edited parameters — one entry per sequence element, in creation order.
For each element, the corresponding entry in parameters is either None (if that element was not edited) or a dictionary of the changed parameters.
The function inspects the changed parameters, computes updated creation arguments, and returns them. These updated arguments are then passed to edit() to re-apply the sequence.

Default behavior: The base implementation does nothing (pass). If not overridden, the sequence creation arguments remain unchanged after a child element edit, and edit() is called with the original arguments.

Example:

def on_edited(self, context, args, parameters):
    # 'parameters' has one entry per element, in create() order.
    # An entry is None if that element was not edited.
    POINT_1_PARAMS, POINT_2_PARAMS, DISTANCE_PARAMS = parameters

    # If POINT_2 was moved, update the sequence's 'distance' argument
    if POINT_2_PARAMS:
        args['distance'] = POINT_2_PARAMS['point'].point.x

    return args

gom.api.extensions.sequence.ScriptedSequence

Deprecated alias for CustomSequence. Use CustomSequence instead.

gom.api.extensions.views

Custom views

The classes in this module enable the user to define custom views — native ZEISS INSPECT views whose content is rendered by a JavaScript front-end that communicates with a Python back-end service. The Python side acts as the model (data source and business logic), while the JavaScript side acts as the view (rendering and user interaction). A C++ bridge inside ZEISS INSPECT connects them via Qt QWebChannel over WebSocket-based JSON serialisation.

Architecture overview

Python service acts as the model (data source, business logic); JavaScript acts as the view (rendering, interaction). A C++ bridge (Qt QWebChannel) connects them via WebSocket-based JSON serialisation.

        flowchart LR
    subgraph ZEISS INSPECT Application
        CPP["C++ Host<br/>(Qt QWebChannel)"]
    end
    subgraph Python Service
        PY["Python Model<br/>(CustomView subclass)"]
    end
    subgraph Embedded Browser
        JS["JavaScript Renderer<br/>(HTML / Canvas / Bundle)"]
    end

    PY -- "registers functions<br/>& properties" --> CPP
    CPP -- "exposes gom.bridge<br/>& gom.emitEvent" --> JS
    JS -- "gom.bridge.func()" --> CPP
    CPP -- "dispatches call" --> PY
    PY -- "returns result" --> CPP
    CPP -- "resolves Promise" --> JS
    JS -- "gom.emitEvent(name, data)" --> CPP
    CPP -- "posts event to<br/>Qt event queue" --> PY
    CPP -- "system signals<br/>(data / selection / config)" --> JS

Three concrete view types are provided, each tailored to a different use case:

CustomCanvas — widget of a UserDefinedDialog, renders via a plain JavaScript render(canvas, ctx) function on an HTML5 <canvas> element.
CustomEditor — editor widget in the AppExplorer when selecting an AppContent item; backed by an NPM bundle with automatic loading and saving of App Content files.
CustomUtilityView — view in the main application window; backed by an NPM bundle without built-in content management. This concept is under development and might be subject to heavy changes in the future.

All three inherit from the abstract CustomView base class, which should not be instantiated directly.

Lifecycle

The user creates an App containing a service script (scripts/service.py).
The service script defines one or more @apicontribution-decorated classes that inherit from one of the three concrete view types above.
gom.run_api() is called at the end of the script, which instantiates each decorated class, extracts its metadata (id, category, functions, properties) and registers the contributions with the ZEISS INSPECT application.
When the user opens the custom view, the C++ host creates an embedded browser (Chromium-based), injects the JavaScript bridge infrastructure, and — depending on the view type — either loads a plain renderer script (Canvas) or an NPM bundle (Editor / Utility).
The JavaScript code can call any Python function exposed via functions through the gom.bridge object. All calls are asynchronous and return JavaScript Promises.
The Python service can receive events emitted by the JavaScript side via the event() method, and system signals (data changed, selection changed, config changed) are forwarded as DOM CustomEvents on window.

JavaScript bridge API (available inside the renderer)

gom.bridge.<function_name>(args) — call a Python function exposed via functions. Returns a Promise that resolves with the Python return value (dicts become JS objects, lists become arrays, etc.).
gom.emitEvent(name, data) — emit a custom event to be received by the Python event() method. The return value of event() is sent back to JavaScript as a <name>_response event.
window.addEventListener('<signal_name>', handler) — listen for system signals such as gom::event::data_changed, gom::event::selection_changed or gom::event::config_changed.

gom.api.extensions.views.CustomCanvas

Custom canvas view for 2D rendering

A CustomCanvas embeds an HTML5 <canvas> element into a native ZEISS INSPECT view. The rendering is driven by a plain JavaScript file that must export a global render(canvas, ctx) function. The function is called whenever the view needs to repaint (resize, signal, explicit invalidation).

        sequenceDiagram
    participant App as ZEISS INSPECT
    participant Py as Python Service
    participant JS as JavaScript Renderer

    App->>Py: Start service (gom.run_api)
    Py->>App: Register CustomCanvas contribution
    App->>JS: Load renderer script + optional bundle
    JS->>JS: Call render(canvas, ctx)
    JS->>Py: gom.bridge.get_data()
    Py-->>JS: { "text": "Hello World" }
    JS->>JS: Draw data on canvas
    JS->>Py: gom.emitEvent("my::event", payload)
    Py-->>JS: event() return → "my::event_response"

Identification

A custom view is identified by its id string. This string must be globally unique, as the custom view code can be part of an App which shares its id space with other Apps installed on the same system. It is advised to use a reverse domain name notation for the id, e.g. com.mycompany.myapp.myview.

Implementation

A minimal custom canvas requires:

A Python class decorated with @apicontribution inheriting from CustomCanvas.
A JavaScript renderer file with a global render(canvas, ctx) function.
A call to gom.run_api() at the end of the service script.

Minimal custom canvas (Python service script)

import gom
import gom.api.extensions.views

from gom import apicontribution

@apicontribution
class MyCanvasView(gom.api.extensions.views.CustomCanvas):

    def __init__(self):
        super().__init__(
            id='com.example.mycanvas',
            description='My Canvas View',
            renderer='renderers/my_renderer.js',
            functions=[self.get_data],
        )

    def get_data(self):
        return {'text': 'Hello World'}

gom.run_api()

JavaScript renderer (renderers/my_renderer.js)

async function render(canvas, ctx) {
    ctx.fillStyle = 'black';
    ctx.fillRect(0, 0, canvas.width, canvas.height);

    // Call Python function via the bridge
    let data = await gom.bridge.get_data();

    ctx.fillStyle = 'white';
    ctx.font = 'bold 24px Arial';
    ctx.fillText(data.text, 50, 50);
}

Event handling

The JavaScript renderer can emit events that are received by the Python event() method. There are a few built-in system events (see CustomView.Event), but any custom event name can be used. Override event() in your subclass to handle them:

Handling events in a custom canvas

@apicontribution
class MyCanvasView(gom.api.extensions.views.CustomCanvas):

    def __init__(self):
        super().__init__(
            id='com.example.mycanvas',
            description='My Canvas View',
            renderer='renderers/my_renderer.js',
            functions=[self.get_data],
        )

    def get_data(self):
        return {'text': 'Hello World'}

    def event(self, event, args):
        if event == self.Event.INITIALIZED:
            print('Canvas view initialized')
        elif event == 'my::custom::event':
            print(f'Custom event received: {args}')
            return {'status': 'ok'}

On the JavaScript side, events are emitted like this:

Emitting events from JavaScript

// Fire-and-forget event
gom.emitEvent('my::custom::event', { x: 42, y: 100 });

// Listen for the response from Python's event() return value
window.addEventListener('my::custom::event_response', (e) => {
    console.log('Python responded:', e.detail);
});

Reacting to system signals

To receive notifications when project data, explorer selection, or preferences change, pass the appropriate signal constants in the constructor. The signals are delivered as CustomEvents on the JavaScript window object:

Subscribing to system signals

class MySignalView(gom.api.extensions.views.CustomCanvas):

    def __init__(self):
        super().__init__(
            id='com.example.signal_demo',
            description='Signal Demo',
            renderer='renderers/signal_demo.js',
            signals=[
                self.Signal.DATA_CHANGED,
                self.Signal.SELECTION_CHANGED,
            ],
        )

Listening for signals in JavaScript

window.addEventListener('gom::event::data_changed', (e) => {
    // Project data changed — re-render
    render(document.getElementById('renderCanvas'),
           document.getElementById('renderCanvas').getContext('2d'));
});

window.addEventListener('gom::event::selection_changed', (e) => {
    // Explorer selection changed — update highlights
});

Using 3rd party modules

Caution

Please be aware of the relevant FOSS and copyright issues when using third-party modules in your Apps!

JavaScript is strongly related to 3rd party modules, for example from Node.js. The bundle property allows to specify an NPM bundle that is used by the JavaScript renderer. The bundle path is arbitrary and set via the bundle constructor parameter. If present, the bundle is injected into the JavaScript engine before the renderer script is loaded.

JavaScript bundles can be created in various ways, for example via a webpack build. The following example shows how to create a simple react module bundle using Node.js and webpack.

Example package.json for bundle creation

    "name": "app-module-bundle",
    "version": 1,
    "description": "App module bundle",
    "private": true,
    "scripts": {
        "build": "webpack --mode production"
    },
    "dependencies": {
        "react": "^18.2.0",
        "react-dom": "^18.2.0",
        "react-scripts": "^5.0.1"
    },
    "devDependencies": {
        "webpack": "^5.88.2",
        "webpack-cli": "^5.1.4"
    }

Example webpack.config.js for bundle creation

const path = require('path');

module.exports = {
    mode: process.env.NODE_ENV || 'production',
    entry: './src/index.js',
    output: {
        path: __dirname + '/dist',
        filename: 'bundle.js',
        library: {
            name: 'MyAppBundle',
            type: 'umd',
            export: 'default'
        },
        globalObject: 'this'
    },
    optimization: {
        minimize: true
    }
};

Please refer to the node.js and webpack documentation for more details on how to create a bundle. Additionally, have a look into the App examples for a more detailed example as a starting point for your own custom views.

gom.api.extensions.views.CustomCanvas.Event

Event types passed to the event () function

INITIALIZED: Sent when the view has been initialized

gom.api.extensions.views.CustomCanvas.init

gom.api.extensions.views.CustomCanvas.__init__(self: Any, id: str, description: str, renderer: str, functions: List[Any], properties: Dict[str, Any], bundle: str): None

Parameters:

id (str) – Globally unique custom view id string. (REQUIRED)
description (str) – Human readable name, will appear in menus etc. (REQUIRED)
renderer (str) – Path to the JavaScript renderer script. (REQUIRED)
functions (List[Any]) – List of functions that can be called by the JavaScript renderer. (OPTIONAL, default: []).
properties (Dict[str, Any]) – Additional properties. (OPTIONAL, default: {}) - custom_preload: Small JS file injected before the renderer starts (helpers / polyfills). - stylesheet: Path to the CSS stylesheet for the renderer.
bundle (str) – Packages NPM bundle this custom view related on. (OPTIONAL, default: None).

Constructor

gom.api.extensions.views.CustomEditor

Custom editor view for editing App Content

A CustomEditor provides a full-featured editor for App Content files (workflows, tables, tokens, or custom content categories). Unlike CustomCanvas, the editor uses an NPM bundle (required) for its UI and integrates automatic file loading and saving.

        sequenceDiagram
    participant App as ZEISS INSPECT
    participant Py as Python Service
    participant JS as Editor Bundle (JS)

    App->>Py: Open content for editing
    Py->>Py: get_data_types(content, files)
    App->>App: Load files with specified DataTypes
    App->>Py: prepare_data(content, data, readonly)
    Py-->>JS: Initial editor data (JSON)
    JS->>JS: User edits content
    Note over JS: Debounced save (save_timeout_ms)
    JS->>Py: extract_data(content, json)
    Py-->>App: [(filename, data, DataType)] to save

Data flow

The editor manages a bidirectional data pipeline through three overridable methods:

get_data_types(content, files) — Called first. For each file in the App Content, return the load strategy: DataTypes.JSON (parse as dict), DataTypes.STRING (read as text), DataTypes.BYTES (raw bytes), or DataTypes.NONE (skip).
prepare_data(content, data, readonly) — Transform the loaded raw data into the JSON structure expected by the JavaScript editor bundle.
extract_data(content, json) — Inverse of prepare_data(). Convert the editor’s output back to a list of (filename, data, DataType) tuples for saving.

Example

Custom JSON file editor

import gom
import gom.api.extensions.views

from gom import apicontribution

@apicontribution
class MyJsonEditor(gom.api.extensions.views.CustomEditor):

    def __init__(self):
        super().__init__(
            id='com.example.json_editor',
            content_category='my_custom_content',
            description='JSON Editor',
            bundle='npms/json_editor.js',
            stylesheet='styles/editor.css',
            signals=[self.Signal.DATA_CHANGED],
        )

    def get_data_types(self, content, files):
        return [
            (f, self.DataTypes.JSON if f.endswith('.json') else self.DataTypes.NONE)
            for f in files
        ]

    def prepare_data(self, content, data, readonly):
        return [{'data': entry, 'readonly': readonly} for (file, entry) in data]

    def extract_data(self, content, json):
        return [
            (f'data_{i}.json', entry, self.DataTypes.JSON)
            for i, entry in enumerate(json)
        ]

gom.run_api()

Event handling

The editor can emit and receive events via the same gom.emitEvent() and event() mechanism as CustomCanvas. In addition, the return value of event() is automatically sent back to the JavaScript side as a <event_name>_response DOM event, enabling request/response patterns between the editor bundle and the Python service.

Save behaviour

Changes in the editor are saved with a configurable debounce timeout. Pass save_timeout_ms in the properties dict to control the delay (default: 1000 ms).

gom.api.extensions.views.CustomEditor.DataTypes

Data types returned by get_data_types () that determine the load mechanism for each file in an app’s content

NONE: Do not load data from the file
JSON: Load data as JSON format, i.e., as a dict
STRING: Load data as plain string
BYTES: Load data as pure bytes array

gom.api.extensions.views.CustomEditor.init

gom.api.extensions.views.CustomEditor.__init__(self: Any, id: str, content_category: str, description: str, bundle: str, stylesheet: str, functions: List[Any], signals: List[str], properties: Dict[str, Any]): None

Parameters:

id (str) – Globally unique custom view id string. (REQUIRED)
content_category (str) – Category of App Content this editor is related to. (REQUIRED)
description (str) – Human readable name, will appear in menus etc. (REQUIRED)
bundle (str) – Packages NPM bundle this custom view related on. (REQUIRED)
stylesheet (str) – Path to the CSS stylesheet for this editor. (OPTIONAL, default: “”)
functions (List[Any]) – List of functions that can be called by the JavaScript renderer. (OPTIONAL, default: [])
signals (List[str]) – List of signals that can be emitted by the JavaScript renderer. (OPTIONAL, default: [])
properties (Dict[str, Any]) – Additional properties. (OPTIONAL, default: {}) - custom_preload: Small JS file injected before the renderer starts (helpers / polyfills). - save_timeout_ms: Editor save debounce timeout in milliseconds. (default: 1000ms)

Constructor

gom.api.extensions.views.CustomEditor.extract_data

gom.api.extensions.views.CustomEditor.extract_data(self: Any, content: str, json: List[Any]): None

Parameters:

content (str) – Name of App Content
json (List[Any]) – List of data created by the editor (one entry per file).

Returns:

List of tuples. Each tuples holds the filename, the processed data to save and the DataTypes of the file to save.

Return type:

None

Inverse of self.prepare_data()

This function processes the data generated by the editor and returns it in a format that can be saved to the files.

gom.api.extensions.views.CustomEditor.get_data_types

gom.api.extensions.views.CustomEditor.get_data_types(self: Any, content: str, files: List[str]): None

Parameters:

content (str) – Name of App Content
files (List[str]) – List of files belonging to this App Content

Returns:

List of tuples matching each filename to a DataTypes

Return type:

None

Determine the loading type for each app content file.

gom.api.extensions.views.CustomEditor.prepare_data

gom.api.extensions.views.CustomEditor.prepare_data(self: Any, content: str, data: List[tuple[str, Any]], readonly: bool): None

Parameters:

content (str) – Name of App Content
data (List[tuple[str, Any]]) – List of tuples. Each tuple holds the filename and the data in the format specified by get_data_types ().
readonly (bool) – Whether the editor is opened in read-only mode

Returns:

List of dictionaries (JSON style) for each initial file.

Return type:

None

Prepare JSON style data from app contents.

gom.api.extensions.views.CustomUtilityView

Custom utility view for general-purpose panels

A CustomUtilityView creates a generic utility panel — such as a dashboard, data inspector, image viewer, or any interactive widget — inside the ZEISS INSPECT application. Like CustomEditor, it is backed by an NPM bundle (required), but it does not provide built-in App Content file management. All data flow is manual, driven by the functions mechanism inherited from CustomView.

View types overview

View type	Placement in the application
`CustomCanvas`	Widget of a `UserDefinedDialog`
`CustomEditor`	Editor widget in the AppExplorer when selecting an AppContent item
`CustomUtilityView`	View in the main application window

Example

Plotly-based data visualization utility

import gom
import gom.api.extensions.views

from gom import apicontribution

@apicontribution
class PlotlyViewer(gom.api.extensions.views.CustomUtilityView):

    def __init__(self):
        super().__init__(
            id='com.example.plotly_viewer',
            description='Plotly Data Viewer',
            bundle='npms/plotly_viewer.js',
            stylesheet='styles/plotly.css',
            functions=[self.get_measurement_data],
            signals=[
                self.Signal.DATA_CHANGED,
                self.Signal.SELECTION_CHANGED,
            ],
        )

    def get_measurement_data(self):
        # Fetch data from ZEISS INSPECT project
        return {'x': [1, 2, 3], 'y': [10, 20, 30]}

gom.run_api()

The JavaScript bundle renders into a <div id="root"> element and can call gom.bridge.get_measurement_data() to fetch data from the Python service. System signals are received as CustomEvents on window just like in the other view types.

gom.api.extensions.views.CustomUtilityView.init

gom.api.extensions.views.CustomUtilityView.__init__(self: Any, id: str, description: str, bundle: str, stylesheet: str, functions: List[Any], signals: List[str], properties: Dict[str, Any]): None

Parameters:

id (str) – Globally unique custom view id string. (REQUIRED)
description (str) – Human readable name, will appear in menus etc. (REQUIRED)
bundle (str) – Packages NPM bundle this custom view related on. (REQUIRED)
stylesheet (str) – Path to the CSS stylesheet for this editor. (OPTIONAL, default: “”)
functions (List[Any]) – List of functions that can be called by the JavaScript renderer. (OPTIONAL, default: [])
signals (List[str]) – List of signals that can be emitted by the JavaScript renderer. (OPTIONAL, default: [])
properties (Dict[str, Any]) – Additional properties. (OPTIONAL, default: {}) - custom_preload: Small JS file injected before the renderer starts (helpers / polyfills).

Constructor

gom.api.extensions.views.CustomView

Abstract base class for all custom view types

CustomView defines the common interface shared by CustomCanvas, CustomEditor and CustomUtilityView. It manages the registration of the view with the ZEISS INSPECT contribution system, wires up callable Python functions for the JavaScript bridge, and connects system signals.

Do not instantiate this class directly. Derive from one of the concrete subclasses instead.

        classDiagram
    class CustomView {
        <<abstract>>
        +Event
        +Signal
        +event(event, args)
    }
    class CustomCanvas
    class CustomEditor
    class CustomUtilityView
    CustomView <|-- CustomCanvas
    CustomView <|-- CustomEditor
    CustomView <|-- CustomUtilityView

Events

The event() method is called whenever the JavaScript renderer emits an event via gom.emitEvent(name, data). Override it in your subclass to react to custom events or system events like Event.INITIALIZED. The return value of event() is automatically sent back to the JavaScript side as a <event_name>_response DOM event.

Signals

System signals allow a view to be notified when application-wide state changes. Pass the desired signal constants in the signals list of the constructor to subscribe. When a signal fires, it is forwarded to the JavaScript renderer as a CustomEvent on window:

window.addEventListener('gom::event::data_changed', (e) => {
    // Refresh view content
});

gom.api.extensions.views.CustomView.Event

Event types passed to the event () function

INITIALIZED: Sent when the view has been initialized

gom.api.extensions.views.CustomView.Signal

Identifier for SW signals that the view can be connected to

DATA_CHANGED: Emitted when any project related data changes
SELECTION_CHANGED: Emitted when the selection in the Project explorer changes
CONFIG_CHANGED: Emitted when the software preferences are applied

gom.api.extensions.views.CustomView.init

gom.api.extensions.views.CustomView.__init__(self: Any, id: str, viewtype: str, description: str, functions: List[Any], properties: Dict[str, Any], callables: Dict[str, Any], signals: List[str]): None

Parameters:

id (str) – Globally unique custom view id string (REQUIRED)
viewtype (str) – Type of the custom view. Supported values are ‘canvas’, ‘editor’ and ‘utility’. (REQUIRED)
description (str) – Human readable name, will appear in menus etc. (REQUIRED)
functions (List[Any]) – List of functions that can be called by the JavaScript renderer (OPTIONAL, default: []).
properties (Dict[str, Any]) – Additional properties (OPTIONAL, default: {}).
callables (Dict[str, Any]) – Dict of callables that can be called by the JavaScript renderer (OPTIONAL, default: {}).
signals (List[str]) – List of system signals the view wants to receive (e.g. ‘signal::data’) (OPTIONAL, default: []).

Constructor

gom.api.extensions.views.CustomView.event

gom.api.extensions.views.CustomView.event(self: Any, event: str, args: Any): None

Event handler

Parameters:

event (str) – Event name
args (Any) – Event arguments

This method is called by the JavaScript renderer when an event is triggered.

gom.api.extensions.views.ScriptedCanvas

Deprecated alias for CustomCanvas. Use CustomCanvas instead.

gom.api.extensions.views.ScriptedEditor

Deprecated alias for CustomEditor. Use CustomEditor instead.

gom.api.extensions.views.ScriptedView

Deprecated alias for CustomView. Use CustomView instead.

gom.api.imaging

Image point/pixel related functions

Image related functions can be used to query images from the measurements of a project. This is not done directly, but via an ‘image acquisition’ object which acts as a proxy between the image storing data structure and the functions which can be used to process the image data.

Terminology:

‘point’: 3D coordinate in the project.
‘pixel’: 2D coordinate in an image.

gom.api.imaging.Acquisition

Class representing a single acquisition

An acquisition describes a camera position and viewing direction of a measurement.

gom.api.imaging.Acquisition.get_angle

gom.api.imaging.Acquisition.get_angle(): gom.Vec3d: Return viewing angles of the camera during the measurement

gom.api.imaging.Acquisition.get_coordinate

gom.api.imaging.Acquisition.get_coordinate(): gom.Vec3d: Return 3d coordinate of the camera during the measurement

gom.api.imaging.compute_epipolar_line

gom.api.imaging.compute_epipolar_line(source: gom.api.imaging.Acquisition, traces: list[tuple[gom.Vec2d, gom.Object]], max_distance: float): list[list[gom.Vec2d]]

Compute epipolar line coordinates

API version:

1

Parameters:

source (gom.api.imaging.Acquisition) – Handle of the image acquisition the epipolar line should be found in.
traces (list[tuple[gom.Vec2d, gom.Object]]) – List of pairs where each entry describes a pixel image coordinate plus the image acquisition object which should be used to compute the matching point. The image acquisition object here is the “other” acquisition providing the pixels used to find the matching epipolar lines in the sources object.
max_distance (float) – Maximum search distance in mm.

Returns:

List of matching points

Return type:

list[list[gom.Vec2d]]

This function computes the parametrics of an epipolar line from pixels projected into images.

Example

stage = gom.app.project.stages['Stage 1']
point = gom.app.project.actual_elements['Point 1'].coordinate

left = gom.api.project.get_image_acquisition (measurement, 'left camera', [stage.index])[0]
right = gom.api.project.get_image_acquisition (measurement, 'right camera', [stage.index])[0]

l = gom.api.imaging.compute_epipolar_line (left, [(gom.Vec2d (1617, 819), right)], 10.0)

print (l)

[[gom.Vec2d (4.752311764226988, 813.7915394509045), gom.Vec2d (10.749371580282741, 813.748887458453), gom.Vec2d
(16.73347976996274, 813.706352662515), ...]]

gom.api.imaging.compute_pixels_from_point

gom.api.imaging.compute_pixels_from_point(point_and_image_acquisitions: list[tuple[gom.Vec3d, gom.Object]]): list[gom.Vec2d]

Compute pixel coordinates from point coordinates

API version:: 1
Parameters:: point_and_image_acquisitions (list[tuple[gom.Vec3d, gom.Object]]) – List of (point, acquisition) tuples
Returns:: List of matching points
Return type:: list[gom.Vec2d]

This function is used to compute the location of a 3d point in a 2d image. This is a photogrammetric operation which will return a precise result. The input parameter is a list of tuples where each tuple consists of a 3d point and and acquisition object. The acquisition object is then used to compute the location of the 3d point in the referenced image. This might lead to multiple pixels as a result, so the return value is again a list containing 0 to n entries of pixel matches.

Example

measurement = gom.app.project.measurement_series['Deformation series'].measurements['D1']
stage = gom.app.project.stages['Stage 1']
point = gom.app.project.actual_elements['Point 1'].coordinate

left = gom.api.project.get_image_acquisition (measurement, 'left camera', [stage.index])[0]
right = gom.api.project.get_image_acquisition (measurement, 'right camera', [stage.index])[0]

p = gom.api.imaging.compute_pixels_from_point ([(point, left), (point, right)])

print (p)

[gom.Vec2d (1031.582008690226, 1232.4155555222544), gom.Vec2d (1139.886626169376, 1217.975608783256)]

gom.api.imaging.compute_point_from_pixels

gom.api.imaging.compute_point_from_pixels(pixel_and_image_acquisitions: [list], use_calibration: bool): [list]

Compute 3d point coordinates from pixels in images

API version:

1

Parameters:

pixel_and_image_acquisitions ([list]) – List of (pixel, acquisition) tuples
use_calibration (bool) – If set, the information from the calibration is used to compute the point. Project must provide a calibration for that case.

Returns:

List of matching pixels and residuums

Return type:

[list]

This function is used to compute 3d points matching to 2d points in a set of images. The input parameter is a list containing a list of tuples where each tuple consists of a 2d pixel and the matching acquisition object. The acquisition object is then used to compute the location of the 3d point from the pixels in the referenced images. Usually at least two tuples with matching pixels from different images are needed to compute a 3d point. An exception are projects with 2d deformation measurement series. Only there it is sufficient to pass one tuple per point to the function.

The user has to make sure that the pixels from different tuples are matching, which means they correspond to the same location on the specimen. You can use the function gom.api.imaging.compute_epipolar_line() as a helper.

The returned value is a list of (point, residuum) where each entry is the result of intersecting rays cast from the camera positions through the given pixels. The pixel coordinate system center is located in the upper left corner.

Example

measurement = gom.app.project.measurement_series['Deformation 1'].measurements['D1']
stage = gom.app.project.stages[0]

img_left = gom.api.project.get_image_acquisition (measurement, 'left camera', [stage.index])[0]
img_right = gom.api.project.get_image_acquisition (measurement, 'right camera', [stage.index])[0]

pixel_pair_0 = [(gom.Vec2d(1587.74, 793.76), img_left), (gom.Vec2d(2040.22, 789.53), img_right)]
pixel_pair_1 = [(gom.Vec2d(1617.47, 819.67), img_left), (gom.Vec2d(2069.42, 804.69), img_right)]

tuples = [pixel_pair_0, pixel_pair_1]
points = gom.api.imaging.compute_point_from_pixels(tuples, False)

print (points)

[[gom.Vec3d (-702.53, 1690.84, -22.37), 0.121], [gom.Vec3d (-638.25, 1627.62, -27.13), 0.137]]

gom.api.infoitem

API for creating, configuring, and displaying info items

This API provides functions and classes to create, configure, and display info items within the application’s graphical user interface. Info items can be shown as simple text or as structured content with headings, descriptions, and keyboard/mouse shortcuts. The API supports querying available categories and alignments, and allows dynamic control over the visibility, warning state, and content of each info item. Both plain text and structured info item types are supported, enabling flexible presentation of contextual information to the user.

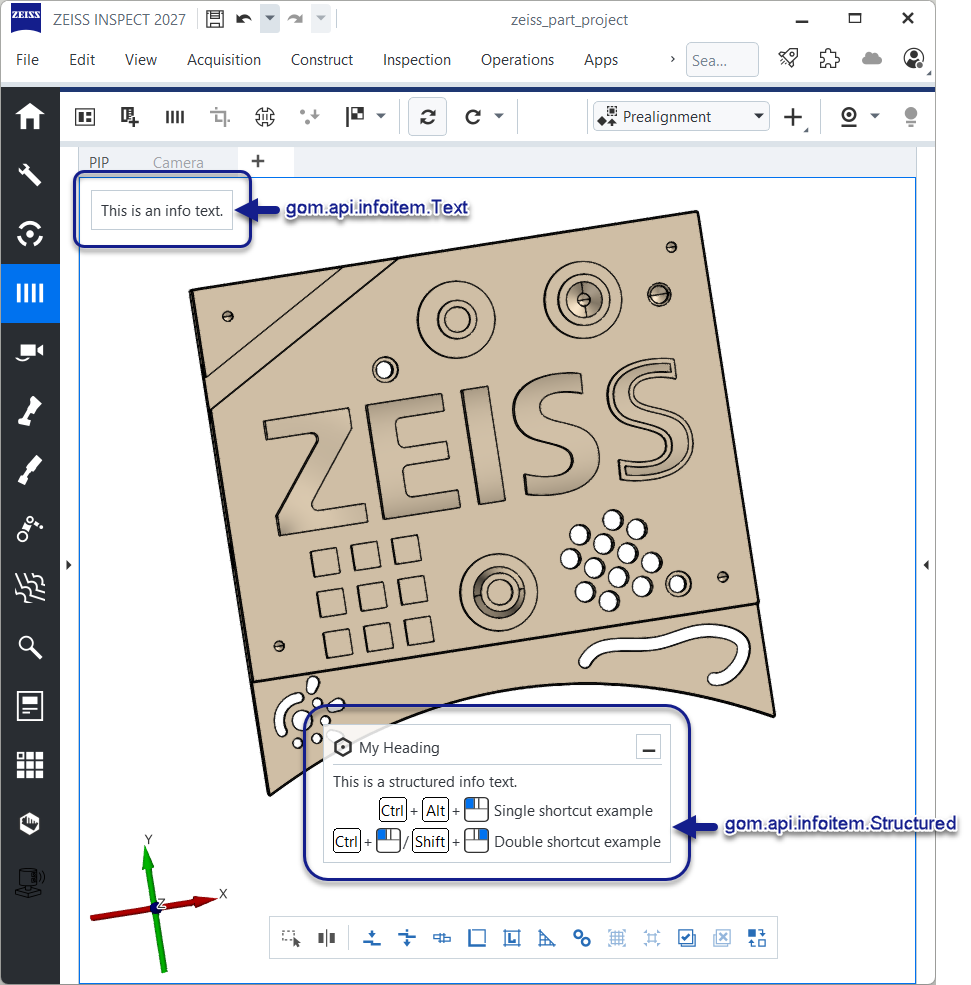

Info Item Example

Info items can be positioned in five different alignments: top, center, bottom, top_right, and top_left.

gom.api.infoitem.Structured

Class for displaying structured info items

This class represents an info item that displays structured content within the application’s graphical user interface. Structured info items can include a heading (with optional icon and help id), a description, and one or more keyboard/mouse shortcuts. The class provides methods to set and update each of these fields, as well as to control visibility and warning state. Structured info items can be aligned in various positions and can use a larger font if specified.

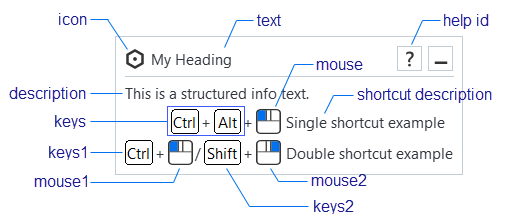

Info Item Structured Example

Example:

import gom
import gom.api.infoitem

item_structured = gom.api.infoitem.create_structured('INFO_GENERAL', 'bottom')
item_structured.set_heading(text="My Heading")
item_structured.set_description("Description text")
item_structured.add_single_shortcut(keys="ctrl+alt", mouse="left_button", description="Shortcut description")
item_structured.show()

gom.api.infoitem.Structured.add_double_shortcut

gom.api.infoitem.Structured.add_double_shortcut(keys1: str='', mouse1: str='', keys2: str='', mouse2: str='', description: str=''): None

Add a double shortcut to this structured info item

Parameters:

keys1 (str='') – The first key sequence
mouse1 (str='') – The first mouse button
keys2 (str='') – The second key sequence
mouse2 (str='') – The second mouse button
description (str='') – The description of the shortcut

Adds a shortcut consisting of two key sequence and/or mouse combinations, with an optional description.

For detailed information about the format and rules for keys1, keys2, mouse1, and mouse2, see the documentation for add_single_shortcut.

Example:

item_structured.add_double_shortcut(keys1="ctrl", mouse1="left_button", keys2="shift", mouse2="right_button", description="Double shortcut example")

gom.api.infoitem.Structured.add_single_shortcut

gom.api.infoitem.Structured.add_single_shortcut(keys: str='', mouse: str='', description: str=''): None

Add a single shortcut to this structured info item

Parameters:

keys (str='') – The key sequence
mouse (str='') – The mouse button
description (str='') – The description of the shortcut

Adds a shortcut consisting of a key sequence and/or mouse button, with an optional description.

The format and rules for the keys parameter are as follows:

It may consist of zero or more modifier keys (Ctrl, Shift, Alt) and at most one regular key.
For the complete list of keys, see the Qt::Key enum documentation. Use the string after “Key_”, e.g., "Key_F1" → "F1", "Key_A" → "A".
Modifiers and the regular key are combined with +, e.g., "Ctrl+Alt+S".
Key names are case-insensitive.
You may specify only modifiers (e.g., "Ctrl+Alt"), or leave keys empty to use only a mouse button.

The list of available mouse buttons can be obtained using item_structured.get_mouse_buttons().

Example:

item_structured.add_single_shortcut(keys="ctrl+alt", mouse="left_button", description="Single shortcut example")

gom.api.infoitem.Structured.clear

gom.api.infoitem.Structured.clear(): None: Clear the content and hide this structured info item

Removes the content from the info item and hides it from the user interface.

gom.api.infoitem.Structured.get_configuration

gom.api.infoitem.Structured.get_configuration(): dict

Return the current configuration of this structured info item as a dictionary

Returns:: Dictionary containing the configuration of the structured info item
Return type:: dict

This method returns the current configuration and state of the structured info item as a dictionary. The configuration includes properties such as category, alignment, font size, warning state, always-visible state, heading, description, and shortcuts. This is mainly intended for debugging or inspection purposes.

gom.api.infoitem.Structured.get_mouse_buttons

gom.api.infoitem.Structured.get_mouse_buttons(): list[str]

Return the list of all available mouse buttons

Returns:: List of info category names as strings
Return type:: list[str]

The structured info item supports the following mouse buttons: left_button, right_button, middle_button, and mouse_wheel. Info Item Structured Example

Example:

import gom
import gom.api.infoitem

item_structured = gom.api.infoitem.create_structured('INFO_GENERAL', 'bottom')
print(item_structured.get_mouse_buttons())

gom.api.infoitem.Structured.set_always_visible

gom.api.infoitem.Structured.set_always_visible(state: bool): None

Set the always-visible state for this structured info item

Parameters:: state (bool) – If true, the item is always visible; otherwise, it follows normal visibility rules.

Sets whether this info item should always be visible, regardless of its priority or other conditions. When set to true, the item will remain visible in the user interface at all times.

gom.api.infoitem.Structured.set_description

gom.api.infoitem.Structured.set_description(description: str): None

Set the description for this structured info item

Parameters:: description (str) – The description text to display

Sets the description text for the structured info item.

Example:

item_structured.set_description("Description text")

gom.api.infoitem.Structured.set_heading

gom.api.infoitem.Structured.set_heading(icon: str='', text: str='', help_id: str=''): None

Set the heading for this structured info item

Parameters:

icon (str='') – The icon to display in the heading
text (str='') – The heading text
help_id (str='') – The help id associated with the heading

Sets the heading icon, text, and help id for the structured info item.

The icon parameter supports multiple input formats

Internal icon identifier from GIcon::Cache
Complete AddOnUrl pointing to an icon file
Path to an external file
Base64-encoded QImage or QPixmap string

Examples:

# Use an internal icon name
item_structured.set_heading(icon="zui_holy_placeholder", text="My Heading")

# Use an AddOnUrl
icon = "acp:///<addon_uuid>/.../testicon.svg"
item_structured.set_heading(icon=icon, text="My Heading")

# Use an external file path
icon = "C:/icons/myicon.png"
item_structured.set_heading(icon=icon, text="My Heading")

# Use a base64-encoded string
icon = "iVBORw0KG....AAAAAK7QJANhcmnoAAAAAElFTkSuQmCC"
item_structured.set_heading(icon=icon, text="My Heading")

gom.api.infoitem.Structured.set_warning

gom.api.infoitem.Structured.set_warning(state: bool): None

Set the warning state for this structured info item

Parameters:: state (bool) – If true, the item is marked as a warning; otherwise, it is shown normally.

Sets whether this info item should be displayed in a warning state. When set to true, the item will be visually highlighted as a warning in the user interface.

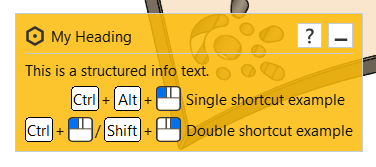

Info Item Structured Example

gom.api.infoitem.Structured.show

gom.api.infoitem.Structured.show(): None: Show this structured info item in the user interface

Displays the structured info item in the application’s graphical user interface using the current content.

gom.api.infoitem.Text

Class for displaying simple text info items

This class represents an info item that displays plain text within the application’s graphical user interface. It provides methods to set the text content, control visibility, configure warning and always-visible states, and retrieve the current configuration. The text info item can be aligned in various positions and can use a larger font if specified.

Example:

import gom
import gom.api.infoitem

item_text = gom.api.infoitem.create_text('INFO_WARNING', 'top_left')
item_text.set_text("Hello World")
item_text.set_always_visible(True)
item_text.show()

gom.api.infoitem.Text.clear

gom.api.infoitem.Text.clear(): None: Clear the content and hide this text info item

Removes the text content from the info item and hides it from the user interface.

gom.api.infoitem.Text.get_configuration

gom.api.infoitem.Text.get_configuration(): dict

Return the current configuration of this text info item as a dictionary

Returns:: Dictionary containing the configuration of the text info item
Return type:: dict

This method returns the current configuration and state of the text info item as a dictionary. The configuration includes properties such as category, alignment, font size, warning state, always-visible state, and the current text content. This is mainly intended for debugging or inspection purposes.

gom.api.infoitem.Text.set_always_visible

gom.api.infoitem.Text.set_always_visible(state: bool): None

Set the always-visible state for this text info item

Parameters:: state (bool) – If true, the item is always visible; otherwise, it follows normal visibility rules.

Sets whether this info item should always be visible, regardless of its priority or other conditions. When set to true, the item will remain visible in the user interface at all times.

gom.api.infoitem.Text.set_text

gom.api.infoitem.Text.set_text(text: str): None

Set the text content for this info item

Parameters:: text (str) – The new text to display in the info item

Sets the text that will be displayed by this info item. If the item is currently visible, the displayed content is updated immediately.

Example:

item_text.set_text("New message")

gom.api.infoitem.Text.set_warning

gom.api.infoitem.Text.set_warning(state: bool): None

Set the warning state for this text info item

Parameters:: state (bool) – If true, the item is marked as a warning; otherwise, it is shown normally.

Sets whether this info item should be displayed in a warning state. When set to true, the item will be visually highlighted as a warning in the user interface.

Info Item Structured Example

gom.api.infoitem.Text.show

gom.api.infoitem.Text.show(): None: Show this text info item in the user interface

Displays the text info item in the application’s graphical user interface using the current text content.

gom.api.infoitem.create_structured

gom.api.infoitem.create_structured(category: str, alignment: str='', large_font: bool=False): gom.api.infoitem.Structured

Create a new structured info item

Parameters:

category (str) – The info category for the item (required)
alignment (str='') – The alignment for the item (optional, default: ‘bottom’)
large_font (bool=False) – Whether to use a large font (optional, default: False)

Returns:

The created structured info item

Return type:

gom.api.infoitem.Structured

Creates and returns a new info item that displays structured content which can include a heading, description, and shortcuts.

Example:

import gom
import gom.api.infoitem

item_structured = gom.api.infoitem.create_structured('INFO_GENERAL', 'bottom')

The list of available categories can be obtained using gom.api.infoitem.get_categories, and the list of available alignments can be obtained using gom.api.infoitem.get_alignments.

gom.api.infoitem.create_text

gom.api.infoitem.create_text(category: str, alignment: str='', large_font: bool=False): gom.api.infoitem.Text

Create a new text info item

Parameters:

category (str) – The info category for the item (required)
alignment (str='') – The alignment for the item (optional, default: ‘bottom’)
large_font (bool=False) – Whether to use a large font (optional, default: False)

Returns:

The created text info item

Return type:

gom.api.infoitem.Text

Creates and returns a new info item that displays plain text.

Example:

import gom
import gom.api.infoitem

item_text = gom.api.infoitem.create_text('INFO_WARNING', 'top_left')

The list of available categories can be obtained using gom.api.infoitem.get_categories, and the list of available alignments can be obtained using gom.api.infoitem.get_alignments.

gom.api.infoitem.get_alignments

gom.api.infoitem.get_alignments(): list[str]

Return the list of all available info alignments

Returns:: List of alignment names as strings
Return type:: list[str]

Example:

import gom
import gom.api.infoitem

print(gom.api.infoitem.get_alignments())

gom.api.infoitem.get_categories

gom.api.infoitem.get_categories(): list[str]

Return the list of all available info categories

Returns:: List of info category names as strings
Return type:: list[str]

Example:

import gom
import gom.api.infoitem

print(gom.api.infoitem.get_categories())

gom.api.interpreter

API for accessing python script interpreter properties

This API can access properties and states of the python script interpreters. It is used mainly for internal debugging and introspection scenarios.

gom.api.interpreter.enter_multi_element_creation_scope

gom.api.interpreter.__enter_multi_element_creation_scope__(): None: Mark the start of a multi element creation block

Warning

Do not use these internal functions directly ! Use the with statement format as described in the documentation below instead for an exception safe syntax.

This internal function can be used to disable the signal generation which usually triggers a full ZEISS INSPECT synchronization after each element creation. This is useful when creating multiple elements in a row to avoid unnecessary overhead. The block has to be closed with the ‘exit_multi_creation_block’ function, which is done automatically if the corresponding with statement syntax as explained in the example below is used. Please be aware that disabling full synchronization points can lead to side effects - use this feature with case and well considered !

Example

with gom.api.tools.MultiElementCreationScope ():
    for _ in range (1000):
        gom.script.sys.create_some_simple_point (...)

# Synchronization signal is emitted here. Application is sync'ed and valid afterwards again.

gom.script.sys.continue_with_some_other_stuff (...)

gom.api.interpreter.exit_multi_element_creation_scope

gom.api.interpreter.__exit_multi_element_creation_scope__(): None: Mark the end of a multi element creation block

See gom.api.interpreter.__enter_multi_element_creation_scope__ for details.

gom.api.interpreter.get_info

gom.api.interpreter.get_info(): dict

Query internal interpreter state for debugging purposed

Returns:: JSON formatted string containing various information about the running interpreters
Return type:: dict

Caution

This function is for debugging purposes only ! Its content format may change arbitrarily !

gom.api.interpreter.get_pid

gom.api.interpreter.get_pid(): int

Return the process id (PID) of the API handling application

Returns:: Application process id
Return type:: int

This function returns the process id of the application the script is connected with.

gom.api.introspection

Introspection API for accessing the available API modules, functions and classes

This API enables access to the API structure in general. It is meant to be mainly for debugging and testing purposes.

gom.api.introspection.Class

Introspection interface for a class

This interface can be used to query various information about a class definition

gom.api.introspection.Class.description

gom.api.introspection.Class.description(): str

Returns and optional class description

API version:: 1
Returns:: Class description
Return type:: str

gom.api.introspection.Class.methods

gom.api.introspection.Class.methods(): list[gom.api.introspection.Method]

Returns all class methods

API version:: 1
Returns:: List of class methods
Return type:: list[gom.api.introspection.Method]

gom.api.introspection.Class.name

gom.api.introspection.Class.name(): str

Returns the name of the class

API version:: 1
Returns:: Class name
Return type:: str

gom.api.introspection.Class.type

gom.api.introspection.Class.type(): str

Returns the unique internal type name of the class

API version:: 1
Returns:: Type name
Return type:: str

gom.api.introspection.Function

Introspection interface for a function

This interface can be used to query various information about a function

gom.api.introspection.Function.arguments

gom.api.introspection.Function.arguments(): list[[str, str, str]]

Returns detailed information about the function arguments

API version:: 1
Returns:: Function arguments information
Return type:: list[[str, str, str]]

gom.api.introspection.Function.description

gom.api.introspection.Function.description(): str

Returns the optional function description

API version:: 1
Returns:: Function description
Return type:: str

gom.api.introspection.Function.name

gom.api.introspection.Function.name(): str

Returns the name of the function

API version:: 1
Returns:: Function name
Return type:: str

gom.api.introspection.Function.returns

gom.api.introspection.Function.returns(): [str, str]

Returns detailed information about the function returned value

API version:: 1
Returns:: Function returned value information
Return type:: [str, str]

gom.api.introspection.Function.signature

gom.api.introspection.Function.signature(): list[str]

Returns the function signature

API version:: 1
Returns:: Function signature
Return type:: list[str]

The first type in the returned list is the function return value.

gom.api.introspection.Method

Introspection interface for a method

This interface can be used to query various information about a method

gom.api.introspection.Method.arguments

gom.api.introspection.Method.arguments(): list[[str, str, str]]

Returns detailed information about the method arguments

API version:: 1
Returns:: Method argument information
Return type:: list[[str, str, str]]

gom.api.introspection.Method.description

gom.api.introspection.Method.description(): str

Returns the optional method description

API version:: 1
Returns:: Method description
Return type:: str

gom.api.introspection.Method.name

gom.api.introspection.Method.name(): str

Returns the name of the method

API version:: 1
Returns:: Method name
Return type:: str

gom.api.introspection.Method.returns

gom.api.introspection.Method.returns(): [str, str]

Returns detailed information about the return value

API version:: 1
Returns:: Return value information
Return type:: [str, str]

gom.api.introspection.Method.signature

gom.api.introspection.Method.signature(): list[str]

Returns the method signature

API version:: 1
Returns:: Method signature in form of list
Return type:: list[str]

This function returns the signature. The first type in the list is the expected return value

gom.api.introspection.Module

Introspection interface for a module

This interface can be used to query various information about a module

gom.api.introspection.Module.description

gom.api.introspection.Module.description(): str

Returns the optional module description

API version:: 1
Returns:: Module description
Return type:: str

gom.api.introspection.Module.functions

gom.api.introspection.Module.functions(): list[gom.api.introspection.Function]

Returns all available function of the module

API version:: 1
Returns:: Module functions
Return type:: list[gom.api.introspection.Function]

gom.api.introspection.Module.name

gom.api.introspection.Module.name(): str

Returns the name of the module

API version:: 1
Returns:: Module name
Return type:: str

gom.api.introspection.Module.tags

gom.api.introspection.Module.tags(): list[str]

Returns the tags of the module

API version:: 1
Returns:: Module tags
Return type:: list[str]

Each module can have a set of tags classifying it or its properties.

gom.api.introspection.Module.version

gom.api.introspection.Module.version(): int

Returns the version of the module

API version:: 1
Returns:: Module version
Return type:: int

gom.api.introspection.classes

gom.api.introspection.classes(): gom.api.introspection.Class

Return introspection interface for a class instance

API version:: 1
Parameters:: instance – ‘Class’ instance to inspect
Returns:: Introspection object
Return type:: gom.api.introspection.Class

gom.api.introspection.modules

gom.api.introspection.modules(): list[gom.api.introspection.Module]

Return a list of available modules

API version:: 1
Returns:: List of ‘Module’ objects.
Return type:: list[gom.api.introspection.Module]

This function can be used to query the modules of the API

Example:

for m in gom.api.introspection.modules ():
  print (m.name ())

gom.api.license

API for checking license availability

This API enables secure license checking using a nonce-based verification scheme. The license check result includes a cryptographically signed nonce that can be verified by the caller using the corresponding public key.

gom.api.license.LicenseCheckResult

Result of a license availability check

This class contains the result of a license check operation, including the availability status and a cryptographically signed nonce for verification.

gom.api.license.LicenseCheckResult.get_encrypted_nonce

gom.api.license.LicenseCheckResult.get_encrypted_nonce(): str

Get the encrypted/signed nonce

API version:: 1
Returns:: The nonce encrypted/signed with the software’s private key (only valid if the license is available), or an
Return type:: str

This function returns the nonce that was provided during the check, encrypted (signed) with the software’s private key. The caller can verify this signature using the corresponding public key to ensure the response authenticity.

The nonce is only valid if the license is available; otherwise, an empty string is returned.

Example (Python)

import gom
import secrets
import base64
from cryptography.hazmat.primitives import hashes, serialization
from cryptography.hazmat.primitives.asymmetric import padding
from cryptography.hazmat.backends import default_backend

# Load the public key (PEM format)
public_key_pem = """-----BEGIN RSA PUBLIC KEY-----
MIIBCgKCAQEAx1Z8PLdYxZ/hdYXrPqMDc5tx+ZbXuDMt1pHjVByg0gEhHDQBhync
EReWMC6nNlQJcH4LzOH+WblnuTKK/myaXroO35v0UM6F9MmjpCM4Dj2SZOS+nG0z
RoCJ/g1BgiKtyrgrDNXtbObRxuN4tNZW3jxhKalidZxCTzLGvimh90v4M9/Qtym9
8OFaDFfB4ULZXXtsGvOhcukmKqaVsJOekCybQ2o9OuqXcuVCKoCGmPp31cmrxCfS
JBTeXe5NoDxjdeQJA2rcnfb5/KjoHSnsrulx0n9P6q0L9Pq6/G7ZLU2a8jYOAuGk
IVnaIx1OXhkmjpx9maUpp0kZeJmj5txPlwIDAQAB
-----END RSA PUBLIC KEY-----"""

public_key = serialization.load_pem_public_key(
    public_key_pem.encode(),
    backend=default_backend()
)

# Generate a random nonce
nonce = str(secrets.randbits(128))

# Check license
result = gom.api.license.check_license('MyLicenseFeature', nonce)

if result.is_available():
    # Get the signed nonce
    signed_nonce = result.get_encrypted_nonce()

    # Verify the signature
    try:
        public_key.verify(
            base64.b64decode(signed_nonce),
            nonce.encode('utf-8'),
            padding.PKCS1v15(),
            hashes.SHA256()
        )
        print('License available and signature verified')
    except Exception as e:
        print(f'Signature verification failed: {e}')
else:
    print('License not available')

empty string if the license is not available

gom.api.license.LicenseCheckResult.is_available

gom.api.license.LicenseCheckResult.is_available(): bool

Check if the requested license is available

API version:: 1
Returns:: True if the license is available, False otherwise
Return type:: bool

This function returns whether the requested license is currently available in the system.

gom.api.license.check_license

gom.api.license.check_license(license_name: str, nonce: str): gom.api.license.LicenseCheckResult

Check if a specific license is available

API version:

1

Parameters:

license_name (str) – Name of the license feature to check
nonce (str) – Random number (used once) for verification purposes

Returns:

LicenseCheckResult object containing availability status and signed nonce if license is available

Return type:

gom.api.license.LicenseCheckResult

This function checks whether a specified license is currently available in the system. To ensure the authenticity of the response, the function requires a nonce (random number used once) which is returned encrypted/signed with the software’s private key. The caller can verify this signature using the corresponding public key. This verification needs to be implemented by the caller to ensure the authenticity of the response and prevent spoofing.

This implements a challenge-response authentication scheme to prevent replay attacks and ensure that the license check result is genuine.

Example

import gom
import secrets

# Generate a cryptographically secure random nonce
nonce = str(secrets.randbits(128))

# Check if license 'AdvancedMeasurement' is available
result = gom.api.license.check_license('AdvancedMeasurement', nonce)

if result.is_available():
    print('License is available')
    # For signature verification, see get_encrypted_nonce() documentation
else:
    print('License not available')

gom.api.license.check_product_code

gom.api.license.check_product_code(product_code_id: str, product_code_name: str, nonce: str): None

Check if a specific product code is available

API version:

1

Parameters:

product_code_id (str) – ID of the product code to check
product_code_name (str) – Name of the product code to check
nonce (str) – Random number (used once) for verification purposes

Returns:

LicenseCheckResult object containing availability status and signed nonce if product code is available

gom.api.license.LicenseCheckResult

This function checks whether a specified product code is currently available in the system. To ensure the authenticity of the response, the function requires a nonce (random number used once) which is returned encrypted/signed with the software’s private key. The caller can verify this signature using the corresponding public key. This verification needs to be implemented by the caller to ensure the authenticity of the response and prevent spoofing.

This implements a challenge-response authentication scheme to prevent replay attacks and ensure that the product code check result is genuine.

Example

import gom
import secrets

# Generate a cryptographically secure random nonce
nonce = str(secrets.randbits(128))

# Check if product code is available
result = gom.api.license.check_product_code('12345', 'ProductName', nonce)

if result.is_available():
    print('Product code is available')
    # For signature verification, see get_encrypted_nonce() documentation
else:
    print('Product code not available')

gom.api.progress

API for accessing the progress bar in the main window

This API provides basic access to the progress bar in the main window

gom.api.progress.ProgressBar

Class representing the ProgressBar

This class is meant to be used with the Python ‘with’ statement

Example

import gom.api.progress

with gom.api.progress.ProgressBar() as bar:
    bar.set_message('Calculation in progress')
    for i in range(100):
        # Do some calculations
        foo()
        # Increase the progress
        bar.set_progress(i)

# Progress bar entry gets removed automatically after leaving the 'with' statement

gom.api.progress.ProgressBar.finish_progress

gom.api.progress.ProgressBar.finish_progress(self: Any): None

Finishes the progress and removes this from the progress bar

API version:: 1
Returns:: nothing
Return type:: None

This object CANNOT be used for further progress reporting after calling this method

Can be used if the progress bar should disappear but the with statement cannot be left yet

gom.api.progress.ProgressBar.set_message

gom.api.progress.ProgressBar.set_message(self: Any, message: str): None

Sets a message in the main window progress bar

API version:: 1
Parameters:: message (str) – the message to display
Returns:: nothing
Return type:: None

gom.api.progress.ProgressBar.set_progress

gom.api.progress.ProgressBar.set_progress(self: Any, progress: int): None

Sets the progress in the main window progress bar

API version:: 1
Parameters:: progress (int) – in percent, given as an integer from 0 to 100
Returns:: nothing
Return type:: None

gom.api.project

Access to project relevant structures

This module contains functions for accessing project relevant data

gom.api.project.ProgressInformation

deprecated:: Please use gom.api.progress.ProgressBar instead

Auxiliary class allowing to set progress information

This class is used to access the progress bar and progress message widgets of the application.

gom.api.project.ProgressInformation.set_message

gom.api.project.ProgressInformation.set_message(text: str): None

Deprecated:: Please use gom.api.progress.ProgressBar instead

Set progress message

API version:: 1
Parameters:: text (str) – Message to be displayed in the progress displaying widget

gom.api.project.ProgressInformation.set_percent

gom.api.project.ProgressInformation.set_percent(percent: float): None

Deprecated:: Please use gom.api.progress.ProgressBar instead

Set progress value from 0 to 100 percent

API version:: 1
Parameters:: percent (float) – Progress bar value in percent (0…100)

gom.api.project.create_progress_information

gom.api.project.create_progress_information(): gom.api.project.ProgressInformation

Deprecated:: Please use gom.api.progress.ProgressBar instead

Retrieve a progress information object which can be used to query/control progress status information

API version:: 1
Returns:: Progress information object
Return type:: gom.api.project.ProgressInformation

This function returns an internal object which can be used to query/control the progress status widget of the main application window. It can be used to display progress information of long running processes.

gom.api.project.get_image_acquisition

gom.api.project.get_image_acquisition(measurement: object, camera: str, stage: int): object

Generate an of image acquisition object which can be used to query images from the application

API version:

1

Parameters:

measurement (object) – Measurement the image is to be queried from.
camera (str) – Identifier for the camera which contributed to the measurement. See above for valid values.
stage (int) – Id of the stage for which the image acquisition object will access.

Returns:

Image acquisition object which can be used to fetch the images.

Return type:

object

This function returns an image acquisition object, which in turn can then be used to query the application for various image variants.

Valid valid for the camera parameter are:

left camera: Left camera in a two camera system or the only existing camera in a single camera system
right camera: Right camera in a two camera system
photogrammetry: Photogrammetry (TRITOP) camera

Example

measurement = gom.app.project.measurement_series['Deformation series'].measurements['D1']
stage = gom.app.project.stages['Stage 1']

left = gom.api.project.get_image_acquisition (measurement, 'left camera', [stage.index])[0]
right = gom.api.project.get_image_acquisition (measurement, 'right camera', [stage.index])[0]

gom.api.project.get_image_acquisitions

gom.api.project.get_image_acquisitions(measurement_list: object, camera: str, stage: int): object

Generate a list of image acquisition objects which can be used to query images from the application

API version:

1

Parameters:

measurement – Measurement the image is to be queried from.
camera (str) – Identifier for the camera which contributed to the measurement. See above for valid values.
stage (int) – Id of the stage for which the image acquisition object will access.

Returns:

Image acquisition object which can be used to fetch the images.

Return type:

object

This function returns a list of image acquisition objects, which in turn can then be used to query the application for various image variants.

Valid valid for the camera parameter are:

left camera: Left camera in a two camera system or the only existing camera in a single camera system
right camera: Right camera in a two camera system
photogrammetry: Photogrammetry (TRITOP) camera

Example

measurements = list (gom.app.project.measurement_series['Deformation series'].measurements)
stage = gom.app.project.stages['Stage 1']
point = gom.app.project.actual_elements['Point 1'].coordinate

all_left_images = gom.api.project.get_image_acquisitions (measurements, 'left camera', [stage.index])
all_right_images = gom.api.project.get_image_acquisitions (measurements, 'right camera', [stage.index])

gom.api.script_resources

API for the ResourceDataLoader

gom.api.script_resources.create

gom.api.script_resources.create(path: str): bool

Create a new resource under the root folder of a given script, if not already present.

Parameters:: path (str) – Resource path
Returns:: true if a valid resource was found or created.
Return type:: bool

gom.api.script_resources.exists

gom.api.script_resources.exists(path: str): bool

Check if the resource with the given path exists

Parameters:: path (str) – Resource path
Returns:: ‘True’ if a resource with that path exists
Return type:: bool

gom.api.script_resources.list

gom.api.script_resources.list(): list[str]

Return the list of existing resources

Returns:: List of existing resources
Return type:: list[str]

gom.api.script_resources.load

gom.api.script_resources.load(path: str, size: int): str

Load resource into shared memory

Parameters:

path (str) – Resource path
size (int) – Buffer size

Returns:

Shared memory key of the loaded resource

Return type:

str

gom.api.script_resources.mem_size

gom.api.script_resources.mem_size(path: str): int

Return size of the resource shared memory segment

Parameters:: path (str) – Resource path
Returns:: Shared memory segment size
Return type:: int

gom.api.script_resources.save

gom.api.script_resources.save(path: str, size: int): bool

Save resource changes from shared memory

Parameters:

path (str) – Resource path
size (int) – Buffer size

Returns:

‘True’ if the data could be written

Return type:

bool

gom.api.script_resources.save_as

gom.api.script_resources.save_as(old_path: str, new_path: str, overwrite: bool): bool

Save resource changes from shared memory at new path

Parameters:

old_path (str) – Old resource path
new_path (str) – New resource path
size – Buffer size

Returns:

‘True’ if the data could be written

Return type:

bool

gom.api.script_resources.unload

gom.api.script_resources.unload(path: str): bool

Unload resource from shared memory

Parameters:: path (str) – Resource path
Returns:: ‘True’ if the unloading succeeded
Return type:: bool

gom.api.selection

API for handling explorer selection

This API defines functions for accessing and manipulating the current selection in the explorer.

gom.api.selection.get_selected_elements

gom.api.selection.get_selected_elements(): Any

Returns the list of currently selected elements in the explorer

Returns:: List of selected elements
Return type:: Any

This function returns the resolved list of single elements which are currently selected in the explorer. The selection mechanism as such is more complicated and selection of categories, groups, tags etc. is also possible. So the function is covering the very basic per element selection only.

gom.api.services

API for accessing the script based API extensions (services)

This API enables access to the script based API endpoint implementations, called ‘services’. Each service is a script which is started in a server mode and adds various functions and endpoints to the ZEISS Inspect API.

Setting up a service script (decorator-based)

Decorate functions you want to export with @apifunction and define contributions for specific subsystems with @apicontribution, e.g., definitions for custom elements. Both are discovered automatically when gom.run_api() is called.

Service script (service.py):

import gom
import gom.api.extensions.actuals
from gom import apifunction, apicontribution

@apifunction
def multiply(value: float, factor: float) -> float:
    return value * factor

@apicontribution
class MyPointContribution(gom.api.extensions.actuals.Point):

    def __init__(self):
        super ().__init__ (id='examples.custom_actual_point', description='Custom Actual Point')

    def dialog (self, context, args):
     return self.show_dialog (context, args, '/dialogs/Custom_Point.gdlg')

    def compute (self, context, values):
        return {
            "value": (
                float(values['point_x']),
                float(values['point_y']),
                float(values['point_z'])
            )
        }

gom.run_api()

Calling the service from another script:

import gom
import gom.api.my_service

result = gom.api.my_service.multiply(6.0, 7.0)
# result == 42.0

Setting up a service script (explicit registration)

When a service imports functions or contribution classes from other modules, those imports would generally be picked up by the decorator scan and registered unintentionally. Pass the functions and contributions lists directly to gom.run_api() to register only the intended items explicitly. If functions or contributions are registered explicitly, the decorator-based discovery is skipped entirely for the respective items.

import gom
import gom.api.extensions.actuals
from my_other_script import other_multiply

class MyPointContribution(gom.api.extensions.actuals.Point):

    def __init__(self):
        super ().__init__ (id='examples.custom_actual_point', description='Custom Actual Point')

    def dialog (self, context, args):
     return self.show_dialog (context, args, '/dialogs/Custom_Point.gdlg')

    def compute (self, context, values):
        return {
            "value": (
                float(values['point_x']),
                float(values['point_y']),
                float(values['point_z'])
            )
        }

gom.run_api(functions=[other_multiply], contributions=[MyPointContribution])

gom.api.services.Service

Class representing a single API service

This class represents an API service. The properties of that service can be read and the service can be administered (started, stopped, …) via that handle.

gom.api.services.Service.get_autostart

gom.api.services.Service.get_autostart(): bool

Return autostart status of the service

Returns:: ‘true’ if the service is started automatically at application startup
Return type:: bool

This function returns if the service is started automatically at application startup. This status can only be set manually by the user either during service installation or afterwards in the service management dialog.

gom.api.services.Service.get_endpoint

gom.api.services.Service.get_endpoint(): str

Return the API endpoint name of this service

API version:: 1
Returns:: Service endpoint if the service is initialized
Return type:: str

This function returns the endpoint identifier this service is covering, like ‘gom.api.services’.

gom.api.services.Service.get_name

gom.api.services.Service.get_name(): str

Return the human readable name of this service

API version:: 1
Returns:: Service name if the service is initialized
Return type:: str

gom.api.services.Service.get_number_of_instances

gom.api.services.Service.get_number_of_instances(): int

Get the number of API instances (processes) the service runs in parallel

Returns:: Number of API instances which are run in parallel when the service is started.
Return type:: int

Return the number of API processes instances which are running in parallel. A service can be configured to start more than one API process for parallelization.

gom.api.services.Service.get_status

gom.api.services.Service.get_status(): str

Return the current service status

API version:: 1
Returns:: Service status
Return type:: str

This function returns the status the service is currently in. Possible values are

STOPPED: Service is not running.
STARTED: Service has been started and is currently initializing. This can include both the general service process startup or running the global service initialization code (model loading, …).
RUNNING: Service is running and ready to process API requests. If there are multiple service instances configured per service, the service counts as RUNNING not before all of these instances have been initialized !
STOPPING: Service is currently shutting down,

gom.api.services.Service.set_number_of_instances

gom.api.services.Service.set_number_of_instances(number_of_instances: int): None

Set the number of API instances (processes) the service runs in parallel

API version:: 1
Parameters:: number_of_instances (int) – Number of API process instances to run in parallel (minimum: 1)

This function sets the number of API process instances which will be started in parallel when the service is started. A higher number of instances allows the service to process multiple requests simultaneously, which can improve performance for computationally intensive tasks.

The configured value is persisted in the application configuration and will be used the next time the service is started. If the service is already running, you need to stop and restart it for the new setting to take effect.

gom.api.services.Service.start

gom.api.services.Service.start(): None

Start service

API version:: 1

This function will start a script interpreter executing the service script as an API endpoint.

Caution

The function will return immediately, the service instances are starting in the background afterwards. The get_status () function can be used to poll the status until the service has been started.

gom.api.services.Service.start_and_wait

gom.api.services.Service.start_and_wait(timeout: int = 30000): bool

Start service and wait until it is running

API version:: 1
Parameters:: timeout (int = 30000) – Timeout in milliseconds. If the service does not reach RUNNING state within this time, the function returns false. Defaults to 30000 (30 seconds) if omitted or negative.
Returns:: true if the service has been started successfully, false if a timeout occurred.
Return type:: bool
Throws:: Exception if the service cannot be started (e.g. no script set, already running)

This function will start a script interpreter executing the service script as an API endpoint and block until the service reaches the RUNNING state or a timeout occurs.

Unlike start (), this function does not return immediately. Instead it enters a local event loop and waits for all service runner instances to report back their configuration. This is useful for scripts which need to call service functions right after starting the service.

Example:

service = gom.api.services.get_service ('gom.api.my_service')
if service.start_and_wait (timeout=10000):
  print ('Service is running')
else:
  print ('Service startup timed out')

gom.api.services.Service.stop

gom.api.services.Service.stop(): None

Stop service

API version:: 1

Stop service. The service can be restarted afterwards via the ‘start ()’ function if needed.

Caution

The function will return immediately, the service instances will be stopped asynchronously. The ‘get_status ()’ function can be used to poll the service status until all service instances have been stopped.

gom.api.services.get_service

gom.api.services.get_service(endpoint: str): gom.api.services.Service

Return the service registered for the given endpoint

API version:: 1
Parameters:: endpoint (str) – API endpoint of the service to retrieve, e.g. ‘gom.api.my_service’
Returns:: Service object for that endpoint
Return type:: gom.api.services.Service
Throws:: Exception if no service with the given endpoint is registered

This function returns the service object for the given API endpoint. An exception is thrown if no service with that endpoint is registered.

Example:

service = gom.api.services.get_service ('gom.api.my_service')
if service.start_and_wait (timeout=10000):
  print ('Service is running')
else:
  print ('Service startup timed out')

gom.api.services.get_services

gom.api.services.get_services(): [gom.api.services.Service]

Return the list of all running and not running services

API version:: 1
Returns:: The list of all registered services
Return type:: [gom.api.services.Service]

This function returns the list of registered services

Example:

for s in gom.api.services.get_services ():
  print (s.get_name ())
> 'Advanced fitting algorithms'
> 'Tube inspection diagrams'
> ...

gom.api.settings

API for storing app related settings persistently

This API allows reading/writing values into the application configuration permanently. The configuration is persistent and will survive application restarts. Also, it can be accessed via the applications preferences dialog.

The configuration entries must be defined in the app’s metainfo.json file. This configuration defined the available keys, the entry types and the entry properties. If the entry type can be represented by some widget, the setting entry will also be present in the application’s ‘preferences’ dialog and can be adapted interactively there.

Example

{
  "title": "Settings API example",
  "description": "Example app demonstrating usage of the settings API",
  "uuid": "3b515488-aa7b-4035-85e1-b9509db8af4f",
  "version": "1.0.2",
  "settings": [
   {
      "name": "dialog",
      "description": "Dialog configuration"
   },
   {
     "name": "dialog.size",
     "description": "Size of the dialog"
   },
   {
     "name": "dialog.size.width",
     "description": "Dialog width",
     "value": 640,
     "digits": 0
   },
   {
     "name": "dialog.size.height",
     "description": "Dialog height",
     "value": 480,
     "digits": 0
   },
   {
     "name": "dialog.threshold",
     "description": "Threshold",
     "value": 1.0,
     "minimum": 0.0,
     "maximum": 10.0,
     "digits": 2,
     "step": 0.01
   },
   {
     "name": "dialog.magic",
     "description": "Magic Key",
     "value": "Default text",
     "visible": false
   },
   {
     "name": "enable",
     "description": "Enable size storage",
     "value": true,
     "visible": true
   },
   {
     "name": "dialog.file",
     "description": "Selected file",
     "value": "",
     "type": "file",
     "mode": "any",
     "visible": true
   },
   {
     "name": "dialog.color",
     "description": "Default RGBA color",
     "value": "#FF0000FF",
     "type": "color",
     "visible": true
   },
   {
     "name": "dialog.rgb",
     "description": "Default RGB color",
     "value": "#00aaaa",
     "type": "color",
     "visible": true
   }
  ]
 }

This will lead to configuration entries in the application’s preferences. Given that the metainfo.json is part of an app called ‘Settings API Example’, the application preferences will contain the following items (visible setting entries only):

Settings level 1

Settings level 2

Types

See the examples above for how to configure the different settings type. Usually, the value field determines the type of the setting. For example, a 23 indicates that an integer is requested. A 23.0 with digits greater than 0 will lead to a float settings type.

Special non basic types are specified via the type field explicitly. For example, the file selector is configured if the type field has been set to file.

File selector

The file selector provides a mode attribute in addition to the standard settings entry attributes. The mode attribute determines what kind of files or directories can be selected.

any: Any file
new: Any file not yet existing in a writable directory
load_file: Existing file with reading permissions
load_files: Multi existing files with reading permissions
save_file: Existing or new file with writing permissions
load_dir: Existing directory with reading permissions
save_dir: Existing directory with writing permissions
exec: Existing executable file

gom.api.settings.get

gom.api.settings.get(key: str): Any

Read value from application settings

API version:: 1
Parameters:: key (str) – Configuration key. Must be a key as defined in the app’s metainfo.json file.
Returns:: Configuration value for that key
Return type:: Any

This function reads a value from the application settings. The value is referenced by a key. Supported value types are integer, double, string and bool.

Example

w = gom.api.settings.get ('dialog.width')
h = gom.api.settings.get ('dialog.height')

gom.api.settings.get_description

gom.api.settings.get_description(key: str): str

Read the description of an application settings entry

API version:: 1
Parameters:: key (str) – Configuration key. Must be a key as defined in the app’s metainfo.json file.
Returns:: Description string of the settings entry
Return type:: str

This function returns the description of the settings entry identified by the given key. The description is defined in the app’s metainfo.json file.

Example

desc = gom.api.settings.get_description ('dialog.width')

gom.api.settings.list

gom.api.settings.list(): list[str]

List all available keys for the current app

API version:: 1
Returns:: List of all the keys in the settings which belong to the current app
Return type:: list[str]

This function returns a list of all available keys in the settings for the current app. These keys are the same configuration keys are used in the metainfo.json file of that app.

gom.api.settings.set

gom.api.settings.set(key: str, value: Any): None

Write value into application settings

API version:

1

Parameters:

key (str) – Configuration key. Must be a key as defined in the app’s metainfo.json file.
value (Any) – Value to be written

This function writes a value into the application settings. The value is referenced by a key. Supported value types are integer, double, string and bool.

Example

gom.api.settings.set ('dialog.width', 640)
gom.api.settings.set ('dialog.height', 480)

gom.api.smart_principle

API for script based functionality of Smart Principle

gom.api.smart_principle.CustomEditDialog

This class is used to define a custom edit dialog for Smart Principle.

Implementation

A very simple example for a custom view API contribution can look like this:

Example of a simple custom edit dialog

import gom
import gom.api.experimental
import gom.api.smart_principle

from gom import apicontribution

@apicontribution
class MyCustomEditDialog (gom.api.smart_principle.CustomEditDialog):

    def __init__(self):
        super().__init__(id='com.zeiss.my.customdialog')

    def create_dialog(self, ctx):
        dlg = gom.api.experimental.create_dialog("my_dialog.gdlg")
        ...
        return dlg

gom.run_api ()

gom.api.smart_principle.CustomEditDialog.init

gom.api.smart_principle.CustomEditDialog.__init__(self: Any, id: str, callables: dict, properties: dict): None

Parameters:

id (str) – Unique contribution id, like my.custom.dialog
callables (dict) – Additional callables for this contribution (optional)
properties (dict) – Additional properties for this contribution (optional)

Constructor

gom.api.smart_principle.CustomEditDialog.create_dialog

gom.api.smart_principle.CustomEditDialog.create_dialog(self: Any, ctx: gom.SmartPrincipleScriptedWidgetContext): None

Parameters:: ctx (gom.SmartPrincipleScriptedWidgetContext) – A context object that provides all functions for getting and setting of sequence step parameters.
Returns:: The handle of the dialog.
Return type:: None

Creates and initializes the dialog instance.

gom.api.smart_principle.StrategyTemplate

This class is used to define a Smart Principle strategy template.

Concept

A strategy template contributes one selectable strategy entry to the Smart Principle dialog. It defines when the strategy is visible, when it can be applied, and how the creation sequence is extended once selected.

Services that use the prefix ‘gom.api.smart_principle.strategy_templates.’ in their endpoint name are automatically started when Smart Principle is used.

gom.api.smart_principle.StrategyTemplate.init

gom.api.smart_principle.StrategyTemplate.__init__(self: Any, strategy_id: str, strategy_icon: str, strategy_name: str, strategy_description: str, default_element_name: str, signature: dict, licensing: dict, callables: dict, properties: dict): None

Parameters:

strategy_id (str) – Unique strategy identifier suffix used to build the contribution id.
strategy_icon (str) – Icon resource id shown in the Smart Principle dialog.
strategy_name (str) – Localized strategy name shown in the Smart Principle dialog.
strategy_description (str) – Localized strategy description shown in the Smart Principle dialog.
default_element_name (str) – Default naming template used for newly created strategy elements.
signature (dict) – Signature metadata used by Smart Principle to match existing sequence commands and command arguments to this strategy template.
licensing (dict) – Licensing metadata declaring required products/licenses. This uses the same format as already used in app licenses.
callables (dict) – Additional callable contribution entries merged with the default strategy callables.
properties (dict) – Additional contribution properties merged with the default strategy properties.

Constructor

The constructor registers the strategy contribution and merges optional callable and property extensions with the default strategy interface.

gom.api.smart_principle.StrategyTemplate.add_strategy

gom.api.smart_principle.StrategyTemplate.add_strategy(self: Any, nominal_element: Any, old_creation_sequence: list): list

Parameters:

nominal_element (Any) – Selected nominal element for which the strategy is applied.
old_creation_sequence (list) – Existing creation sequence to be extended.

Returns:

Updated creation sequence.

Return type:

list

Function called to add strategy-specific commands to the sequence.

This function receives the current sequence and must return the updated sequence containing all commands required for this strategy.

gom.api.smart_principle.StrategyTemplate.is_enabled

gom.api.smart_principle.StrategyTemplate.is_enabled(self: Any, nominal_element: Any, creation_sequence: list): bool

Parameters:

nominal_element (Any) – Selected nominal element in Smart Principle.
creation_sequence (list) – Current creation sequence state.

Returns:

True if the strategy can be applied, otherwise False.

Return type:

bool

Function called to check if the strategy is enabled.

This function is used to evaluate whether the strategy can currently be applied for the selected nominal element and creation sequence state.

gom.api.smart_principle.StrategyTemplate.is_visible

gom.api.smart_principle.StrategyTemplate.is_visible(self: Any, nominal_element: Any): bool

Parameters:: nominal_element (Any) – Selected nominal element in Smart Principle.
Returns:: True if the strategy is visible, otherwise False.
Return type:: bool

Function called to check if the strategy is visible.

This function is used by Smart Principle to determine whether the strategy should be listed for the selected nominal element.

gom.api.table

API for table template editing and rendering

This module provides entry points for accessing and modifying ZEISS INSPECT table templates. It allows you to generate render-ready table data from XML templates and create interactive content editors.

Expression-language metadata (symbols, functions, element tokens) has been moved to gom.api.expressions, which exposes the same data independently of table structure.

Typical workflow:

import gom.api.table

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
data    = adapter.get_render_data()       # Initial table structure (headers + rows + cells)
adapter.edit_cell(0, 1, 'result_dimension')
updated = adapter.get_render_data()       # Updated table structure
saved   = adapter.get_properties()        # Serialized XML for persistence

gom.api.table.ContentEditor

ContentEditorDataAdapter class for managing table render data

The ContentEditorDataAdapter is designed to manage the render data for the table content editor. It communicates with the frontend, and ensures that edits are properly synchronized and validated.

Example:

import gom
import gom.api.table

properties = ...  # JSON string with initial properties and XML template
adapter = gom.api.table.create_content_editor_data_adapter(properties, mode="inspection")
adapter.get_render_data()  # Get initial render data for rendering
adapter.edit_cell(0, 1, "New Expression")
adapter.get_render_data()  # Get updated render data for rendering

gom.api.table.ContentEditor.delete_column

gom.api.table.ContentEditor.delete_column(col: int): None

Delete the column at the specified index

Parameters:: col (int) – Column index (0-based)

Removes the column from all element templates and the header row. Raises an exception if only a single column remains.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.delete_column(2)
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.delete_row

gom.api.table.ContentEditor.delete_row(row: int): None

Delete an extra row within an element group

Parameters:: row (int) – Row index (0-based, as in the current render data)

Only rows marked with _is_extra_row = True in the render data can be deleted. The base row of each element group — the original data row for the inspection element — cannot be deleted. Raises an exception when attempting to delete a base row or the last remaining row in an element’s template.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
# Check render data to find rows where _is_extra_row is True
adapter.delete_row(3)
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.edit_cell

gom.api.table.ContentEditor.edit_cell(row: int, col: int, expression: str): None

Update a cell’s expression and regenerate the table render data

Parameters:

row (int) – Row index (0-based, as in the current render data)
col (int) – Column index (0-based)
expression (str) – New expression text to set for the cell

Sets the expression text of the cell at the given row and column, then regenerates the full table render data to reflect the change.

Note: The entire table is regenerated after each call because expression changes can affect other cells through cross-cell references and expression-based background colors. For bulk edits, group all edit_cell() calls before reading the render data again. Changes are not persisted until get_properties() is called and the result is saved.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.edit_cell(0, 1, 'result_dimension')
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.edit_header

gom.api.table.ContentEditor.edit_header(col: int, expression: str): None

Update a header’s display text and regenerate render data

Parameters:

col (int) – Column index (0-based)
expression (str) – New text/expression to set for the header

Modifies the header at the given column index in the active template container, then regenerates the entire table render data to reflect the change.

Note: Changes are NOT saved to file until the host calls save.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.edit_header(0, 'New Header Name')
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.get_background_color_types

gom.api.table.ContentEditor.get_background_color_types(row: int, col: int): dict

Return the list of color choices available for the given data cell.

Parameters:

row (int) – Display-row index (0-based, as in the current sort order).
col (int) – Column index (0-based).

Returns:

Dict with key “color_entries” → list of dicts, each with: - “label” (str) — human-readable description, e.g. “Worst-case (result_worst_case)” - “color_type” (str) — raw token name, e.g. “result_worst_case”

Return type:

dict

The color choices are derived from the element’s token interface. Only tokens whose trait type is a tolerance type (or a MinMaxValue attribute that is a tolerance type) are returned, because those are the only ones that carry a meaningful color encoding.

Each entry in the returned list is a dict:

“label” (str) — human-readable description, e.g. “Worst-case (result_worst_case)”
“color_type” (str) — raw token name for set_background_color_expression() and get_colorbar_preview(), e.g. “result_worst_case”

Returns an empty “color_entries” list when the cell element has no applicable tokens.

gom.api.table.ContentEditor.get_colorbar_preview

gom.api.table.ContentEditor.get_colorbar_preview(row: int, color_type: str, direction: str, width: int, height: int): dict

Render a preview image of a color bar expression and return it as a base64-encoded PNG.

Parameters:

row (int) – Display-row index (0-based, current sort order).
color_type (str) – Raw token name as returned by the “color_type” field of get_background_color_types(), e.g. “result_worst_case”. The colorbar() expression is constructed internally.
direction (str) – “horizontal” or “vertical”.
width (int) – Desired width in pixels (0 = automatic).
height (int) – Desired height in pixels (0 = automatic).

Returns:

Dict with key “image” → base64 PNG data-URI string, or empty string on failure.

Return type:

dict

Mirrors the approach used by the C++ formula-bar editor (TextReplacements::generateImage):

Legend2::ColorBarParser::parse() extracts the ColorBar structure (direction, size) from the expression without going through the full expression-evaluation pipeline.
Expression::ExpressionCache resolves the raw token name against the element’s TokenSource to obtain the actual ToleranceTokenData (measurement result + tolerance limits).
The tolerance data — if available — is applied to the ColorBar so the preview reflects the element’s real measurement state; unmeasured elements render the colorbar frame only.
GFigure2::Tools::generateColorBarImage rasterises the result and it is returned as a base64 PNG data-URI for display in the JS ColorBarDialog preview area.

gom.api.table.ContentEditor.get_data_id

gom.api.table.ContentEditor.get_data_id(): str

Get the unique data ID for this ContentEditorDataAdapter instance

Returns:: Unique data ID as a string
Return type:: str

gom.api.table.ContentEditor.get_element_at_row

gom.api.table.ContentEditor.get_element_at_row(row: int): Any

Return the project-element reference for the inspection element at the given table row.

Parameters:: row (int) – Display-row index (0-based, as in the current render data).
Returns:: Project element reference suitable for gom.api.expressions.get_tokens().
Return type:: Any
Throws:: Exception if row is out of range.

Encodes the inspection element displayed at row as a project element reference that can be passed directly to gom.api.expressions.get_tokens(). This allows callers to decouple token enumeration from the table adapter — the token list is always computed by the canonical expression API rather than by the adapter itself.

Example usage in Python:

import gom.api.expressions
import gom.api.table

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
element_ref = adapter.get_element_at_row(0)
tokens = gom.api.expressions.get_tokens(element_ref)

gom.api.table.ContentEditor.get_properties

gom.api.table.ContentEditor.get_properties(): dict

Get the properties with the current XML data

Returns:: A dictionary of properties with the latest XML data in the “data” field.
Return type:: dict

This method returns the properties of the current table content, including the updated “data” field which contains the current XML data as a string.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties, mode="inspection")
properties = adapter.get_properties()
# properties is: {"data": "<xml>...</xml>", "version": "1.0", ...}

gom.api.table.ContentEditor.get_render_data

gom.api.table.ContentEditor.get_render_data(): dict

Get the current table render data

Returns:: Dict with keys “headers”, “rows”, and “data_id”. See gom.api.table.get_render_data_from_xml() for the full structure of headers and rows.
Return type:: dict

Returns the table render data last computed by the adapter. The returned dict has the same structure as gom.api.table.get_render_data_from_xml() and additionally contains a data_id key with the unique identifier of this adapter instance.

gom.api.table.ContentEditor.get_well_known_color_types

gom.api.table.ContentEditor.get_well_known_color_types(): list

Return the well-known token names for expression-based coloring.

Returns:: Ordered list of well-known token name strings: ["result_worst_case", "result_nominal", "result_deviation"].
Return type:: list

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')

color_types = adapter.get_well_known_color_types()
# color_types == ['result_worst_case', 'result_nominal', 'result_deviation']

adapter.set_background_color_expression(0, 1, color_types[0])
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.insert_column

gom.api.table.ContentEditor.insert_column(col: int, position: str): None

Insert a new empty column before or after the specified column index

Parameters:

col (int) – Column index (0-based)
position (str) – 'before' to insert to the left, 'after' to insert to the right

Inserts a blank column into all element templates and the header row. After insertion the entire table render data is regenerated.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.insert_column(1, 'before')   # Insert a blank column to the left of column 1
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.insert_row

gom.api.table.ContentEditor.insert_row(row: int, position: str): None

Insert a new empty row before or after the specified view row

Parameters:

row (int) – Row index (0-based, as in the current render data)
position (str) – 'before' to insert above, 'after' to insert below

Inserts a new blank row adjacent to the given view row within the same element group. An element group contains all view rows that belong to the same inspection element; they share the same _element_group_id value in the render data.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.insert_row(2, 'after')    # Insert a blank row after view row 2
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.merge_cells

gom.api.table.ContentEditor.merge_cells(row_start: int, col_start: int, row_end: int, col_end: int): None

Merge a rectangular block of cells

Parameters:

row_start (int) – First view row of the merge block (0-based)
col_start (int) – First column of the merge block (0-based)
row_end (int) – Last view row of the merge block (inclusive)
col_end (int) – Last column of the merge block (inclusive)

Merges the cells spanning [row_start, row_end] × [col_start, col_end] into a single cell. All view rows in the range must belong to the same element (same _element_group_id in the render data). The top-left cell retains its content; all other cells in the block are cleared.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
# Merge a 2x2 block: rows 0-1, columns 0-1 (all rows must share the same element)
adapter.merge_cells(0, 0, 1, 1)
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.refresh_render_data

gom.api.table.ContentEditor.refresh_render_data(): None: Re-evaluate all rows against the current project state and update the internal cache

Unlike get_render_data() which returns the last cached snapshot, this method re-runs generateRenderDataFromContainer so that subsequent calls to get_render_data() reflect changes to the project (elements added, removed, or modified; project loaded or closed).

The internal render-data cache (_current_render_data) and the element cache are updated in place, keeping the adapter consistent for subsequent edit and read operations.

Example usage in Python:

adapter = gom.api.table.get_content_editor_data_adapter(data_id)
adapter.refresh_render_data()   # Update cache to reflect current project state
fresh_data = adapter.get_render_data()  # Retrieve the refreshed data

gom.api.table.ContentEditor.revert

gom.api.table.ContentEditor.revert(): None: Discard all in-memory edits and restore the template to its initial state

Restores the XML template and render data to exactly the state they were in when this adapter was created, discarding any changes made via edit_cell(), edit_header(), insert_row(), delete_row(), and other mutation methods.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.edit_cell(0, 1, 'result_dimension')  # Make a change
adapter.revert()                             # Discard the change
data = adapter.get_render_data()             # Returns original state

gom.api.table.ContentEditor.set_alignment

gom.api.table.ContentEditor.set_alignment(row: int, col: int, alignment: str): None

Apply an alignment setting to a single data cell.

Parameters:

row (int) – Data row index (0-based, as in the current render data).
col (int) – Column index (0-based).
alignment (str) – One of “left”, “center”, or “right”.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.set_alignment(0, 1, 'center')
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.set_alignment_header

gom.api.table.ContentEditor.set_alignment_header(col: int, alignment: str): None

Apply an alignment setting to a single header cell.

Parameters:

col (int) – Column index (0-based).
alignment (str) – One of “left”, “center”, or “right”.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.set_alignment_header(1, 'center')
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.set_background_color

gom.api.table.ContentEditor.set_background_color(row: int, col: int, color: str): None

Apply a fixed background color (or clear it) on a single data cell.

Parameters:

row (int) – Data row index (0-based).
col (int) – Column index (0-based).
color (str) – CSS color string (e.g. “#rrggbb” or “rgba(r,g,b,a)”). An empty string clears the background color.

Only non-header data cells are supported. Background color on header cells is intentionally excluded to match the behaviour of the traditional table cell editor dialog.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.set_background_color(0, 1, '#ff0000')  # Set red background
adapter.set_background_color(2, 0, '')           # Clear background
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.set_background_color_expression

gom.api.table.ContentEditor.set_background_color_expression(row: int, col: int, color_type: str): None

Apply an expression-based (dynamic) background color to a single data cell.

Parameters:

row (int) – Data row index (0-based, as in the current render data).
col (int) – Column index (0-based).
color_type (str) – Raw token name (e.g. "result_worst_case"). An empty string clears the background color.

Accepts a plain token name as the color type (e.g. "result_worst_case") and constructs the required color(...) expression internally. Callers must pass a raw token name only — full color(...) strings are NOT accepted.

Use the compile-time constants in Tom::MCADScript::TableAPI::ToleranceColorType for the most commonly available token names, or call get_background_color_types() to discover every valid token name for the element at a specific row at runtime.

Example usage in Python:

import gom.api.table

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')

# Use a well-known token name directly:
adapter.set_background_color_expression(0, 1, 'result_worst_case')

# Or discover available token names at runtime first:
color_types = adapter.get_background_color_types(0, 1)
if color_types:
    adapter.set_background_color_expression(0, 1, color_types[0].get('color_type', ''))

updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.set_font_style

gom.api.table.ContentEditor.set_font_style(row: int, col: int, bold: bool, italic: bool, underline: bool): None

Apply a font-style setting to a single data cell.

Parameters:

row (int) – Data row index (0-based, as in the current render data).
col (int) – Column index (0-based).
bold (bool) – Apply bold formatting.
italic (bool) – Apply italic formatting.
underline (bool) – Apply underline formatting.

Applies the specified combination of bold, italic, and underline to the cell at (row, col) in the adapter’s in-memory template and regenerates the cached render data.

Notes for callers:

The API mutates the in-memory template only; persisting changes to disk or the host’s storage must be handled by the host application.
Out-of-range indices raise an Exception from the underlying helper.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.set_font_style(0, 1, True, False, False)  # Bold, not italic, not underline
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.set_font_style_header

gom.api.table.ContentEditor.set_font_style_header(col: int, bold: bool, italic: bool, underline: bool): None

Apply a font-style setting to a single header cell.

Parameters:

col (int) – Column index (0-based).
bold (bool) – Apply bold formatting.
italic (bool) – Apply italic formatting.
underline (bool) – Apply underline formatting.

Applies the specified combination of bold, italic, and underline to the header at column @p col and regenerates the cached render data.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.set_font_style_header(1, True, False, False)  # Bold header at column 1
updated_data = adapter.get_render_data()

gom.api.table.ContentEditor.split_cell

gom.api.table.ContentEditor.split_cell(row: int, col: int): None

Split a previously merged cell back into individual cells

Parameters:

row (int) – View row index (0-based)
col (int) – Column index (0-based)

Resets the row span and column span of the cell at the given view row and column to 1, undoing a previous merge_cells() call. The cells that were covered by the merge remain empty but regain their individual positions in the layout. Raises an exception when the target cell is not merged.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
adapter.merge_cells(0, 0, 1, 1)  # Merge first
adapter.split_cell(0, 0)         # Then split
updated_data = adapter.get_render_data()

gom.api.table.create_content_editor_data_adapter

gom.api.table.create_content_editor_data_adapter(properties_json: str, mode: str='inspection'): gom.api.table.ContentEditor

Create a render data adapter instance for the table content editor

Parameters:

properties_json (str) – JSON string containing table template properties and XML data
mode (str='inspection') – Table mode: ‘inspection’, ‘measurements’, or ‘alignments’

Returns:

ContentEditorDataAdapter instance initialized with the provided properties and mode

Return type:

gom.api.table.ContentEditor

Throws:

Exception if callback registration fails or properties are invalid.

Creates and returns a ContentEditorDataAdapter object. The adapter can be used to manage the render data for the table content editor.

Example usage in Python:

adapter = gom.api.table.create_content_editor_data_adapter(properties_json, 'inspection')
data_id = adapter.get_data_id()
data = adapter.get_render_data()

gom.api.table.get_content_editor_data_adapter

gom.api.table.get_content_editor_data_adapter(data_id: str): gom.api.table.ContentEditor

Get the render data adapter instance for the table content editor by data ID

Parameters:: data_id (str) – The data ID
Returns:: ContentEditorDataAdapter instance associated with the data ID
Return type:: gom.api.table.ContentEditor
Throws:: Exception if the data_id does not exist in the registry.

gom.api.table.get_render_data_from_xml

gom.api.table.get_render_data_from_xml(xml_data: str, mode: str): dict

Generate table render data from an XML table template

Parameters:

xml_data (str) – XML string containing the table template definition
mode (str) – Content mode: ‘inspection’, ‘measurements’, or ‘alignments’

Returns:

JSON formatted dictionary for rendering the table view

Return type:

dict

Returns a GUI-ready table representation built from a table XML template and the active project. Call this API when you need a serializable table describing inspection elements for display in the UI. The result contains headers and rows; each row contains cells with resolved text and token data (icons, numbers, text, etc). Use the returned maps directly in JavaScript or UI code.

Token order and whitespace are preserved.
Icons are returned as data-uris (PNG) when available.
HTML-like fragments in cell text are sanitized.
When the template contains a dynamic check column, the function collects all scalar-check elements related to an inspection parent and expands the last header into one column per unique check type, filling missing values with empty cells.

Example of return value:

{
   "headers": [ {"text":"Name", "alignment":"left", "font_style":{"family":"Arial","size":12}}, "...":"" ],
   "rows": [ {
      "cells": [ {
         "text":"Bolt A",
         "values":[
           {"type":"text","value":"Bolt A"}
         ],
         "alignment":"left",
         "background_color":"#ffffff",
         "font_style":{"family":"Arial","size":10}
      }, "...":"" ]
   }, "...":"" ]
 }

gom.api.testing

API with testing and verification functions

Caution

This API is for internal debugging purposes ! Its content format may change arbitrarily !

This API provides various functions which can be of use when testing and developing API features.

gom.api.testing.TestObject

Simple object which can be passed around the API for testing purpose

This object is used by various test setups to test object handling in the API

gom.api.testing.TestObject.get_id

gom.api.testing.TestObject.get_id(): UUID

Return the unique id (uuid) of this object

API version:: 1
Returns:: Object uuid
Return type:: UUID

This function returns the uuid associated with this object. The id is generated randomly when the object is generated.

gom.api.testing.TestObject.get_name

gom.api.testing.TestObject.get_name(): str

Return the name of this object

API version:: 1
Returns:: Object name
Return type:: str

This function returns the name of this object.

gom.api.testing.generate_test_object

gom.api.testing.generate_test_object(content: str): gom.api.testing.TestObject

Generate test object

API version:: 1
Parameters:: name – Name of the test object
Returns:: Test object instance
Return type:: gom.api.testing.TestObject

This function is used for API testing. It generates a simple test object which can then be passed around the API.

Example:

obj = gom.api.testing.generate_test_object('test1')

gom.api.testing.get_env

gom.api.testing.get_env(name: str): str

Return main process environment variable value

API version:: 1
Parameters:: name (str) – Name of the environment variable to read
Returns:: Environment variable value
Return type:: str

Return the value of the environment variable with the given name. If the variable does not exist, an empty string is returned. The function is used for testing of the environment variable sharing properties between ZEISS INSPECT and its python processes. Please use the native python functions for environment variable access instead.

Example:

value = gom.api.testing.get_env('MY_ENVIRONMENT_VARIABLE')

gom.api.testing.reflect

gom.api.testing.reflect(content: Any): Any

Send value to the API and return an echo

API version:: 1
Parameters:: value – The value to be reflected
Returns:: Reflected value
Return type:: Any

This function is used for API testing. It just reflects the given value, so some conversions back and forth will be performed.

Example:

result = gom.api.testing.reflect ({'a': [1, 2, 3], 'b':('foo', 'bar')})

gom.api.testing.set_env

gom.api.testing.set_env(name: str, value: str): str

Set main process environment variable value

API version:

1

Parameters:

name (str) – Name of the environment variable to set
value (str) – New value of the environment variable

Set the value of the environment variable with the given name. The function is used for testing of the environment variable sharing properties between ZEISS INSPECT and its python processes. Please use the native python functions for environment variable manipulation instead.

Example:

gom.api.testing.set_env('MY_ENVIRONMENT_VARIABLE', 'some_value')

gom.api.tools

API providing a general set of scripting tools

This API contains a collection of tools that are useful for scripting purposes.

gom.api.tools.MultiElementCreationScope

Context manager for creating multiple elements in a single step

This class can be used in a with statement to prohibid the full application synchronization step between commands. Usually, the ZEISS INSPECT software synchronizes the application after each command being executed. This can be very time consuming, if a large number of elements are created in a single step. By using this scope, the synchronization is only done once after all elements have been created, as soon as this scope is left.

Caution

Disabling the full application synchronization can lead to various side effects, so use this with caution ! Also, the UI update will be locked during the time the scope is active. So the user will not see any changes in the UI until the scope is left again.

Example

import gom.api.tools

with gom.api.tools.MultiElementCreationScope():
    for _ in range(10000):
        # Will not lead to a full application synchronization
        gom.script.inspection.create_some_simple_point(...)

# Full application synchronization is done here, we are safe again

gom.script.inspection.create_some_complex_element_based_on_these_points (...)
