Wizard widget control

Abstract: Enabling completion of a wizard step has been shown as a fundamental feature in Dialog widgets – Wizard widget. More functions for controlling the presentation and sequence of wizard steps are introduced in this section.

Hint

A complete example can be found in ZEISS INSPECT App Examples – Workflow Assistants.

Step complete

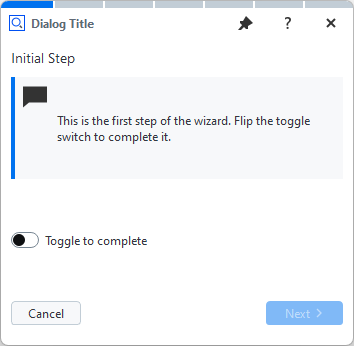

../../_images/wizard_step1_complete_false.png

Step complete: False

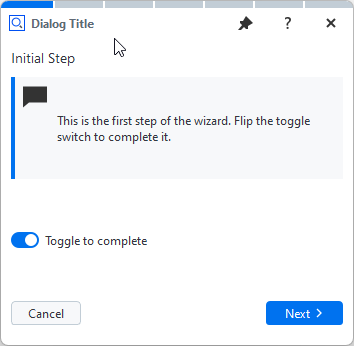

../../_images/wizard_step1_complete_true.png

Step complete: True

DIALOG.wizard.step_set_complete(step_id, condition)

Enable completion of step step_id.

Step optional

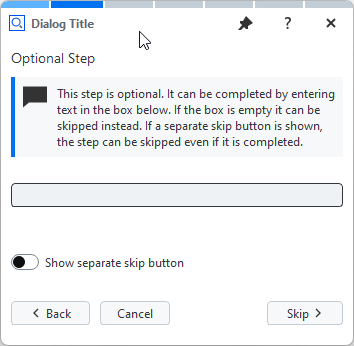

../../_images/wizard_step2_optional.png

Step optional, complete: False

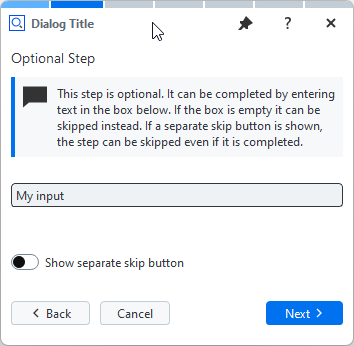

../../_images/wizard_step2_complete.png

Step optional, complete: True

DIALOG.wizard.step_set_optional(step_id, condition)

Set step step_id as optional.

Skip button separate

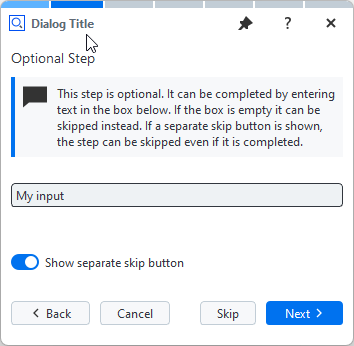

../../_images/wizard_step2_skip_button_separate.png

Separate skip-button

DIALOG.wizard.step_set_skip_button_separate(step_id, condition)

Enable a separate skip-button in addition to the next-button.

Next step

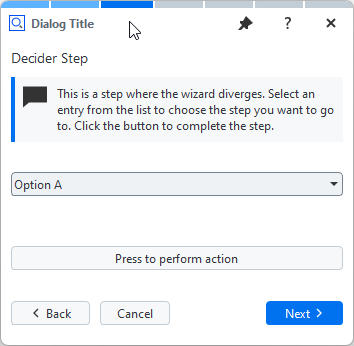

../../_images/wizard_step3_next_id.png

Set ID of next step

DIALOG.wizard.step_set_next_id(step_id, next_id)

Set ID of next step – allows out-of sequence execution of steps.

Branch

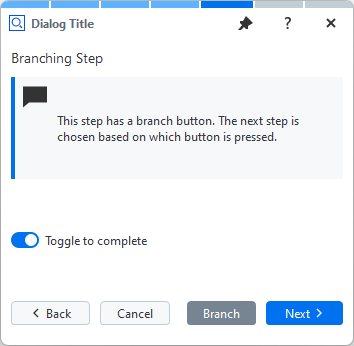

../../_images/wizard_step5_branch.png

Wizard step with a branch-button

DIALOG.wizard.step_set_branch_button_visible(step_id, condition)

Enable the branch-button.

DIALOG.wizard.step_set_branch_button_text(step_id, text)

Set the branch-button text to text (e.g. “Branch”).

DIALOG.wizard.step_set_branch_id(step_id, branch_step_id)

Set the branch target step ID.

Next button text

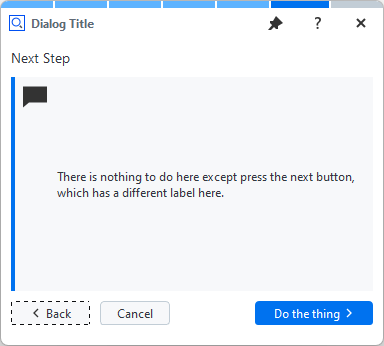

../../_images/wizard_step6_next_button_text.png

Wizard step with alternative next-button text

DIALOG.wizard.step_set_next_button_text(step_id, text)

Set text of the next-button.

Final step

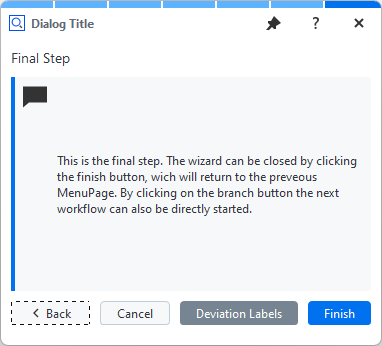

../../_images/wizard_step7_finish.png

Step with finish-button

DIALOG.wizard.step_set_final(step_id, condition)

Set step step_id to a final step with finish-button. By default, the last step in the list is the final step.

Wizard events

Note

A dedicated event handler function for the Wizard widget is recommended.

The argument of the Wizard widget event is a dict with the following keys:

widget

The wizard widget

step

Current wizard step

type

Event type

  • "initialized" – A new step has been reached.

    Do setup for the new wizard step here, e.g. change the selection.

  • "discarded" – The current step has been discarded, either by the user navigating to the previous step or aborting the whole dialog. In the latter case a "discarded" event for all previously completed steps will be emitted in reversed order.

    Do cleanup here, e.g., delete temporary elements or restore some selection.

  • "committed"– The current step has been committed by the user.

    Finalize actions relevant to the step, e.g., create some (intermediate) element based on the current Dialog parameters.

  • "skipped" – The current step has been skipped by the user.

    This can also be used to clean up, which may or may not be the same as for the discarded event.

  • "branched" – The user has pressed the branch button.

    This may be the same as the committed event, but it may also trigger a different action especially if there is no branch ID set.

  • "id_changed" – This is a general event when a the wizard step changes.

    This can be reacted to in place of the more detailed events above, e.g., if only the current id is needed to adjust your workflow.
