User-defined Dialogs

You can add a GUI to your App by creating user-defined dialogs, which are based on the Qt framework.

Creating dialogs

Dialog Editor

  • User defined Dialogs can be inserted into the script using RMB ► Insert ► Dialog… in the App Editor.

  • When a new dialog is inserted, a dialog Template, the target location of the dialog configuration and the dialog Type can be selected.

  • Some dialog Templates are provided by the system. Additional templates can be created by the user.

  • The options for placing a dialog configuration (see section Create as in the window above) are

    • Separate dialog file - default (recommeded)

    • Embedded into script

    The base filename of a dialog file is dialog.gdlg, it can be renamed later. A dialog is stored as a JSON document internally.

    Example: Script with separate dialog file
    RESULT=gom.script.sys.execute_user_defined_dialog (file='dialog.gdlg')

    Example: Script with embedded dialog
    RESULT=gom.script.sys.execute_user_defined_dialog (dialog={
        "content": [
            [
                {
                    ...
                }
            ]
        ],
        "control": {
            "id": "OkCancel"
        },

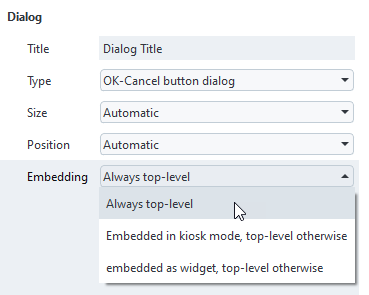

        "embedding": "always_toplevel",
        "position": "automatic",
        "size": {
            "height": 155,
            "width": 198
        },
        "sizemode": "automatic",
        "style": "",
        "title": {
            "id": "",
            "text": "Message",
            "translatable":     True
        }
    })

  • The options for the dialog Type are

    • Break dialog (script is blocked) - default

    • Extendable break dialog (script is blocked)

    • Info dialog (script continues)

    The dialog type is explained in section Executing dialogs

  • Dialogs are designed using the GUI based Dialog Editor.

Note

The Dialog Editor is opened from the App Editor by

  • Selecting a dialog file (*.gdlg) in the App Explorer

  • Selecting a dialog definition embedded in a Python script

  • Using right mouse button → Insert → Dialog… in the script editor

Dialog layout

  • The Dialog Editor is using a grid based layout.

  • Elements can be inserted into the grid via drag and drop.

Editing the grid

Note

Editing the layout means changing the underlying grid.

  • Because the underlying layout is a grid, the following actions are possible:

    • Adding and removing rows and columns.

    • Merging and splitting rows and columns.

    Tool button

    Function

    Split selected cells vertically

    Split selected cells horizontally

    Merge selected cells

  • Selected cells are marked with a red overlay.

Spacers

Note

Spacers are empty spaces extending in either horizontal or vertical direction.

  • If a spacer is inserted into a cell, the cell claims the maximum available space in spacer direction.

  • All other cells share the remaining space.

Layout widgets

See Dialog widgets – Layout for additional layout features.

Widgets

Inserting and removing widgets

  • The list of available widgets resides at the left of the Dialog Editor in the section Dialog Elements.

  • Widgets are inserted via drag and drop.

  • Newly dropped widgets overwrite existing widgets at the drop target cells.

  • A unique object name is assigned during insertion of a widget. This name is used to access the widget in the Python script.

  • Because each cell has to be filled with a widget, widgets can not be removed from the grid. To get rid of a widget

    • Another widget can be dragged and dropped onto the existing widget or

    • The widget cell can be merged with another cell.

Note

Removing widgets from the grid is not possible. Instead, they can be overwritten by other widgets.

Configuring widgets

  • The properties of selected widgets can be edited in the Property Editor at the right side of the Dialog Editor.

  • Every widget has at least a unique Object name.

  • Additionally, various parameters depending on the widget type can be edited.

The definition of the dialog can be found in scriptingEditorExampleDialog.py

Editing already created dialogs

  • Creating a dialog leads to a script command with a dialog representation as JSON code, which can either be embedded or stored in an external dialog file (*.gdlg).

  • Double clicking onto the embedded dialog or the dialog file opens the Dialog Editor again.
