New in Version 2025

Selecting a file or folder

Python scripts for ZEISS INSPECT often require reading or writing files. The command choose_file() provides a simple solution for selecting a file path interactively.

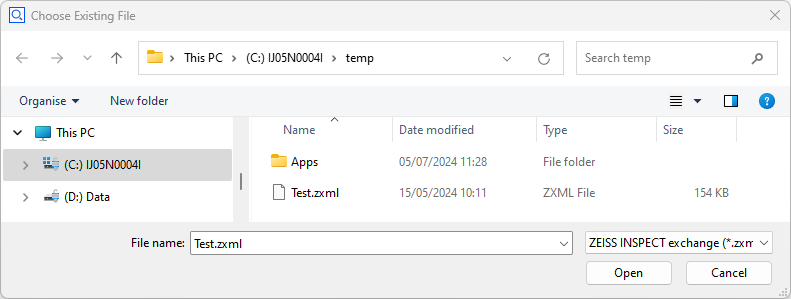

Choose file dialog

Interactive configuration of choose_file()

You insert the command choose_file() into your script by using RMB ► Insert ► File… in the script editor. A configuration dialog is shown:

Configure File Selection

Type

Allows to customize the selection. The following options are available:

  • Any file

  • New file

  • Existing file

  • Multiple existing files

  • Existing folder

Default folder (optional)

The folder shown when the file selection is opened

Default file (optional)

The default file proposed by the dialog

File types

Allows to filter files by file extension pattern

Use custom title (optional)

Allows to set a custom dialog window title

After completing the configuration dialog, choose_file() is inserted into the source code. You change its configuration by clicking on the command choose_file() again.

Scripting choose_file()

Setting the parameters directly in the source code is possible, too:

Parameters:

Name

Description

Type

file_types

file types

QVariantList

file_types_default

default file type

QString

folder

base folder

QString

file

default selected file

QString

selection_type

selection type

QString

title

dialog title

QString

Return value

Depending on the selection type, the command choose_file() returns

  • A single file path,

  • A list of file paths,

  • Or a folder path.

If the dialog is cancelled, a RequestError exception is thrown.

Example

file=gom.script.sys.choose_file (
    file_types=[['*.zxml', 'ZEISS INSPECT exchange'], ['*.gxml', 'ZEISS INSPECT exchange']],
    file_types_default='*.zxml',
    file='C:/temp/Test.zxml',
    folder='C:/temp/',
    selection_type='load file',
    title="Import data from exchange file")

print(f'{file=}')
# Output: file=C:/temp/Test.gxml

See also

A user-defined dialog is used if the file selection must be combined with other widgets or if additional functionality is needed:
