New in Version 2027

Using Custom Diagrams

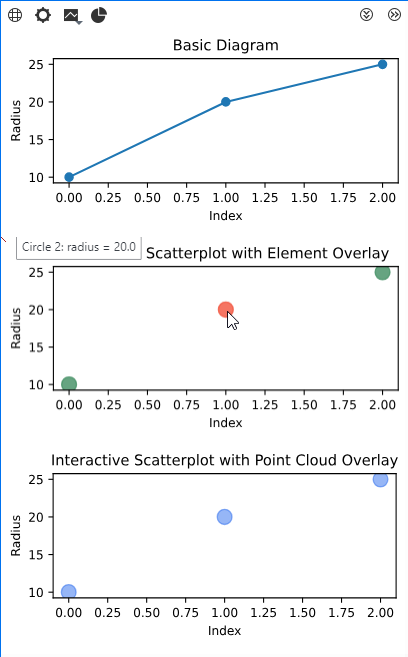

Inspection details Custom diagrams example

General

Custom diagrams are the successor of Scripted diagrams. In comparison, Custom diagrams offer greater flexibility and interactivity.

Custom diagrams require Custom actual/nominal elements as diagram data sources.

See also

Prerequisite: Implement custom element payloads first.

See Custom elements, especially Custom actual/nominal elements.

Overview

Use Cases & Applications

  1. Quality Control Dashboards

    • Visualize inspection results across multiple measurements

    • Interactive elements link to detailed check information

    • Real-time updates as new measurements are processed

  2. Measurement Analysis

    • Custom scatter plots, trend analysis, statistical distributions

    • Link plot points directly to 3D measurement data

    • Filter and partition data by measurement series or stages

  3. Process Monitoring

    • Time-series charts of measurement results

    • Interactive timeline with drill-down capabilities

    • Custom alerts and threshold visualization

  4. Custom Reporting

    • Generate interactive reports with embedded diagrams

    • Export capabilities for external documentation

    • Custom styling and branding options

Custom Diagram System Architecture

        ---
title: Architecture Overview
---
graph TB
    ZEISS["ZEISS INSPECT<br/>Application Layer"]
    API["Diagram API<br/>(ZEISS)"]
    RENDER["Rendering Layer<br/>(JavaScript)"]
    MPL["Matplotlib<br/>(Optional)"]

    ZEISS --> API
    API --> RENDER
    API -.-> MPL
    MPL -.-> RENDER

    %% Styling
    classDef zeissApp fill:#e3f2fd,stroke:#1565c0,stroke-width:3px,color:#000000
    classDef diagramAPI fill:#f3e5f5,stroke:#7b1fa2,stroke-width:3px,color:#000000
    classDef rendering fill:#e8f5e8,stroke:#2e7d32,stroke-width:3px,color:#000000
    classDef matplotlib fill:#fff3e0,stroke:#f57c00,stroke-width:3px,color:#000000

    class ZEISS zeissApp
    class API diagramAPI
    class RENDER rendering
    class MPL matplotlib

The Application Layer provides raw data from Custom nominal/actual elements for displaying in a diagram. The Diagram API allows to create diagram data structures (e.g. SVG), optionally by using the Matplotlib Python library. The Rendering Layer displays the diagram and handles user input for interactive diagrams.

        ---
title: ZEISS INSPECT Application Layer
---
graph TB
    subgraph "Data Sources"
        PROJECT[Project<br/>Complete measurement project]
        ELEMENTS[Elements<br/>Geometry, checks, measurements]
        STAGES[Stages<br/>Data snapshots for multi-state analysis]
    end

    subgraph "User Interface"
        DIAGRAM_VIEW[Diagram View<br/>UI panel for display]
        SELECTION[Element Selection<br/>User-chosen elements]
        EXPLORER[Project Explorer<br/>Element browser]
    end

    PROJECT --> ELEMENTS
    ELEMENTS --> SELECTION
    EXPLORER --> SELECTION
    SELECTION --> DIAGRAM_VIEW

    classDef dataSource fill:#bbdefb,stroke:#1976d2,stroke-width:2px,color:#000000
    classDef ui fill:#c8e6c9,stroke:#388e3c,stroke-width:2px,color:#000000

    class PROJECT,ELEMENTS,STAGES dataSource
    class DIAGRAM_VIEW,SELECTION,EXPLORER ui

The ZEISS INSPECT Application Layer provides the current project’s element data and the user interface with a diagram view, which also allows user interaction.

        ---
title: Diagram API Layer (ZEISS)
---
graph TB
    subgraph "Data Processing"
        ELEMENT_DATA["Element Data<br/>Input: element, data, type"]
        PARTITIONS["Partitions<br/>Data subsets for rendering"]
        VIEW_PARAMS["View Parameters<br/>Canvas properties"]
    end

    subgraph "Base Classes"
        SCRIPTED["CustomDiagram<br/>Generic base class"]
        SVG["SVGDiagram<br/>SVG specialization"]
    end

    subgraph "Interaction"
        OVERLAY["Overlay<br/>Interactive mapping"]
        EVENTS["Events<br/>User interactions"]
        CALLBACKS["Callbacks<br/>Response scripts"]
    end

    ELEMENT_DATA --> PARTITIONS
    PARTITIONS --> VIEW_PARAMS
    VIEW_PARAMS --> SCRIPTED
    VIEW_PARAMS --> SVG

    SVG --> OVERLAY
    OVERLAY --> EVENTS
    EVENTS --> CALLBACKS

    classDef dataProc fill:#e1bee7,stroke:#8e24aa,stroke-width:2px,color:#000000
    classDef coreClass fill:#f8bbd9,stroke:#c2185b,stroke-width:2px,color:#000000
    classDef interaction fill:#dcedc8,stroke:#689f38,stroke-width:2px,color:#000000

    class ELEMENT_DATA,PARTITIONS,VIEW_PARAMS dataProc
    class SCRIPTED,SVG coreClass
    class OVERLAY,EVENTS,CALLBACKS interaction

The Diagram API Layer (ZEISS) creates a diagram data structure by using either

CustomDiagram

A generic base class (which requires a user-defined renderer).

or

SVGDiagram

A specialized base class for using the SVGDiagram renderer provided by the INSPECT App.

Interactions are implemented via

Overlay

Mapping diagram view coordinates to diagram plot coordinates, providing a tooltip (optional) or an event function (optional).

Events

Linking interactions with the diagram to callbacks.

Callbacks

Functions / scripts which are executed when triggered by events.

        ---
title: Rendering Layer (JavaScript)
---
graph TB
    subgraph "Renderers"
        SVG_RENDERER["SVGDiagram Renderer<br/>Built-in SVG + interaction"]
        CUSTOM_RENDERER["Custom Renderers<br/>User-defined logic"]
    end

    subgraph "Drawing Environment"
        CANVAS["Canvas<br/>Drawing surface"]
        VIEWPORT["Viewport<br/>Visible area"]
        HITBOXES["Hitboxes<br/>Click regions"]
    end

    subgraph "User Interaction"
        MOUSE["Mouse Events<br/>Click, hover, drag"]
        TOOLTIPS["Tooltips<br/>Information display"]
        NAVIGATION["Navigation<br/>Zoom, pan"]
    end

    SVG_RENDERER --> CANVAS
    CUSTOM_RENDERER --> CANVAS
    CANVAS --> VIEWPORT
    VIEWPORT --> HITBOXES

    HITBOXES --> MOUSE
    MOUSE --> TOOLTIPS
    VIEWPORT --> NAVIGATION

    classDef renderer fill:#ffcdd2,stroke:#d32f2f,stroke-width:2px,color:#000000
    classDef browser fill:#e0f2f1,stroke:#00695c,stroke-width:2px,color:#000000
    classDef userInt fill:#f3e5f5,stroke:#7b1fa2,stroke-width:2px,color:#000000

    class SVG_RENDERER,CUSTOM_RENDERER renderer
    class CANVAS,VIEWPORT,HITBOXES browser
    class MOUSE,TOOLTIPS,NAVIGATION userInt

The Rendering Layer (JavaScript) is handled by the GUI framework. It provides the drawing environment for displaying the diagram and features for user interactions.

        ---
title: Matplotlib Integration (Optional)
---
graph TB
    subgraph "Matplotlib Hierarchy"
        FIGURE["Figure<br/>Top-level container"]
        AXES["Axes<br/>Plot coordinate system"]
        SUBPLOT["Subplot<br/>Grid arrangement"]
        PLOT["Plot Objects<br/>Lines, scatter, bars"]
        ARTIST["Artist Objects<br/>Text, patches, annotations"]
    end

    subgraph "Integration Points"
        SVG_OUTPUT["SVG Output<br/>fig.savefig(format='svg')"]
        COORD_TRANSFORM["Coordinate Transform<br/>Matplotlib → SVG coords"]
        DATA_PREP["Data Preparation<br/>ZEISS elements → plot data"]
    end

    FIGURE --> AXES
    AXES --> SUBPLOT
    AXES --> PLOT
    AXES --> ARTIST

    FIGURE --> SVG_OUTPUT
    PLOT --> COORD_TRANSFORM
    SVG_OUTPUT --> DATA_PREP

    classDef mplCore fill:#fff8e1,stroke:#f57c00,stroke-width:2px,color:#000000
    classDef integration fill:#e8eaf6,stroke:#3f51b5,stroke-width:2px,color:#000000

    class FIGURE,AXES,SUBPLOT,PLOT,ARTIST mplCore
    class SVG_OUTPUT,COORD_TRANSFORM,DATA_PREP integration

Matplotlib is a comprehensive library for creating huge variety of diagram types allowing customization.

Core Terminology by Layer

ZEISS INSPECT Layer:

  • Project: Complete measurement project with all data

  • Element: Individual geometry/inspection objects (points, surfaces, dimensions)

  • Stage: Data snapshot for multi-state analysis (same nominal, different actual data)

  • Diagram View: UI panel displaying diagrams within ZEISS INSPECT

Diagram API Layer:

  • Element Data: Input structure [{'element': obj, 'data': dict, 'type': str}]

  • Partitions: Data subsets for separate rendering (large dataset handling)

  • View Parameters: Canvas properties (width, height, DPI, font, subplot index)

  • Overlay: Interactive mapping (Element UUIDs → coordinates + tooltips; optional custom_interaction flag)

Rendering Layer:

  • SVGDiagram Renderer: Built-in SVG renderer with interaction support

  • Canvas: Drawing surface for diagram display

  • Hitboxes: Clickable regions generated from overlay coordinates

Matplotlib Integration (Optional):

  • Figure: Top-level matplotlib container

  • Axes: Plot coordinate system and drawing area

  • Plot Objects: Lines, scatter plots, bars, etc.

  • Subplot: Multiple plots in grid arrangement

  • Artist Objects: Text, patches, annotations for customization

Data Flow & Interaction Pattern

        sequenceDiagram
    participant UI as ZEISS INSPECT UI
    participant DV as Diagram View
    participant SD as CustomDiagram
    participant JS as JavaScript Renderer
    participant User as User

    Note over UI,User: Diagram Creation & Display

    UI->>SD: Initialize with element data
    SD->>SD: partitions(element_data)
    Note right of SD: Optional: Split data into partitions

    loop For each partition
        SD->>SD: plot(view, element_data)
        Note right of SD: Transform data for renderer
        SD->>JS: Return plot data
        JS->>DV: Render diagram
    end

    DV->>UI: Display complete diagram

    Note over UI,User: User Interaction

    User->>DV: Click/hover on element
    DV->>SD: event(element_name, element_uuid, event_data)
    SD->>SD: Process interaction
    SD->>SD: finish_event(cmd_script, params)
    SD->>UI: Execute follow-up script
    UI->>User: Update interface/selection

Implementation

Custom diagrams require Custom nominal/actual elements for data input.

Suggested Learning Path

If you are new to custom diagrams, use this order:

  1. Start with Basic Custom Diagram to verify plotting and service setup.

  2. Continue with Custom Diagram with Element Overlay when you need full element-level hit detection and renderer tuning.

  3. Use Custom Diagram with Point Cloud Overlay for point-based interaction mapping.

In the following sections, you find

Custom Element

The method finish() is implemented to assign element data to diagrams. The helper function ‘add_diagram_data’ can be used to map diagram IDs to data entries. It is possible to add multiple data entries to any number of diagram ids.

Custom Element Example – Actual Circle Element
@apicontribution
class MyActualCircle (gom.api.extensions.actuals.Circle):

    def __init__ (self):
        """Register the custom actual circle contribution."""
        super ().__init__ (id='examples.custom_diagrams.actual_circle', description='Custom Actual Circle for Diagram Examples')

    def dialog (self, context, args):
        """Open the input dialog for center, direction, and radius."""
        return self.show_dialog (context, args, '/Custom_Circle.gdlg')

    def compute (self, context, values):
        """Compute circle geometry and payload from dialog values."""
        # ... parse values and return center/direction/radius payload ...
        return {'center': (...), 'direction': (...), 'radius': values['radius']}

    def finish (self, context , results_states):
        """Map stage-0 element results to diagram services via contribution IDs."""
        diagram_data = []
        # All examples in this App use the SVGDiagram renderer.
        self.add_diagram_data(
            diagram_data = diagram_data,
            diagram_id = 'SVGDiagram',
            service_id = 'com.zeiss.example.custom_diagrams.basic',
            element_data = results_states["results"][0]
        )
        self.add_diagram_data(
            diagram_data = diagram_data,
            diagram_id = 'SVGDiagram',
            service_id = 'com.zeiss.example.custom_diagrams.element_overlay',
            element_data = results_states["results"][0]
        )
        self.add_diagram_data(
            diagram_data = diagram_data,
            diagram_id = 'SVGDiagram',
            service_id = 'com.zeiss.example.custom_diagrams.point_cloud_overlay',
            element_data = results_states["results"][0]
        )
        results_states["diagram_data"] = diagram_data
        return results_states

    gom.run_api()

Full source in example App:

  • https://github.com/ZEISS/zeiss-inspect-app-examples/blob/main/AppExamples/custom_diagrams/CustomDiagramExamples/scripts/Custom_Circle.py

Note

With Scripted diagrams you would implement a service function to convert element data into diagram data.

See Custom nominal/actual elements for more information.

Custom Diagrams

Custom diagrams are based on the Extensions, specifically gom.api.extensions.diagrams.

For rendering diagrams as SVG (Scalable Vector Graphics), a Custom Diagram class is created by using SVGDiagram as the base class and implementing the plot() method. This base class provides additional methods for customization, like the event function to enable custom interactions.

For implementing static diagrams, using Matplotlib and converting the plot to an SVG string is sufficient (see Basic Custom Diagram).

Caution

Custom diagrams are executed as services in ZEISS INSPECT. Therefore, the App containing a diagram must configure the diagram script as a service in its metainfo.json file and the service has to be started (see Using Services for more information).

Caution

Open the tab ‘Inspection Details’ in the ZEISS INSPECT 3D View to see the custom diagram.

Note

Instead of using the SVGDiagram base class, it is possible to create a custom diagram/renderer pair.

The base class would then be CustomDiagram and a corresponding JavaScript renderer must be implemented in the App.

Basic Custom Diagram

This is a minimal example of a custom diagram using Matplotlib to create a static SVG plot without interactivity.

Note

Quick prerequisites:

  1. The diagram script is configured as a service in metainfo.json and the service is started.

  2. Matplotlib is available in the App environment.

  3. Your custom element returns diagram_data via finish() as shown above.

Basic Custom Diagram Example
 1import gom
 2from gom import apicontribution
 3import gom.api.extensions.diagrams
 4import gom.api.extensions.diagrams.matplotlib_tools as mpltools
 5import matplotlib.pyplot as plt
 6
 7@apicontribution
 8class MyBasicDiagram(gom.api.extensions.diagrams.SVGDiagram):
 9
10    def __init__(self):
11        """Initialize service metadata for the basic diagram."""
12        super().__init__(
13            id='com.zeiss.example.custom_diagrams.basic',
14            description='Basic Custom Diagram'
15        )
16
17    def plot(self, view, element_data):
18        """Render a radius-over-index line plot as SVG."""
19        # Helper methods omitted for clarity:
20        # _normalized_view(view), _export_svg(fig, safe_view)
21        safe_view = self._normalized_view(view)
22        fig = mpltools.setup_plot(plt, safe_view)
23        ax = fig.gca()
24
25        x = list(range(len(element_data)))
26        y = [element_entry['data']['radius'] for element_entry in element_data]
27
28        ax.plot(x, y, marker='o', linestyle='-', linewidth=1.5)
29        ax.set_title('Basic Diagram')
30        ax.set_xlabel('Index')
31        ax.set_ylabel('Radius')
32
33        svg_string = self._export_svg(fig, safe_view)
34        plt.close(fig)
35
36        return svg_string
37
38    gom.run_api()

Full source in example App:
AppExamples/custom_diagrams/CustomDiagramExamples/scripts/basic_custom_diagram.py

Custom Diagram with Element Overlay

This example shows how to create an interactive custom diagram using an element overlay. This type of overlay covers each mapped element completely, precisely mapping clicks to an element.

Additionally, this example demonstrates customization options to make rendering more accessible without implementing a custom JavaScript diagram.

Note

Quick prerequisites:

  1. The service is started and visible in the service manager.

  2. The custom element data entries provide element references.

  3. A follow-up script named testscript.py exists in the App (or adjust event() accordingly).

Interactive Custom Diagram Example with Element Overlay
 1import gom
 2from gom import apicontribution
 3import gom.api.extensions.diagrams.matplotlib_tools as mpltools
 4import matplotlib.pyplot as plt
 5
 6@apicontribution
 7class DiagramWithElementOverlay (gom.api.extensions.diagrams.SVGDiagram):
 8
 9    RENDER_CONFIG = {'auto_generated_overlay_use': True}
10    DEFAULT_MARKER_COLOR = '#4c956c'
11    SELECTED_MARKER_COLOR = '#f45d48'
12    MARKER_SIZE = 120
13
14    def __init__(self):
15        """Initialize service metadata and interaction state."""
16        super().__init__(id='com.zeiss.example.custom_diagrams.element_overlay',
17                        description='Interactive Custom Diagram with Element Overlay')
18        self.last_clicked_uuid = None
19
20    # Helper methods omitted for clarity:
21    # _element_metadata(...), _marker_color(...), _export_svg(...)
22
23    def add_all_overlay_data(self, element_data, overlay):
24        """Auto-generated element overlay: each element maps to a full hitbox."""
25        for element_entry in element_data:
26            element_uuid, element_name = self._element_metadata(element_entry)
27            self.add_element_to_overlay(
28                overlay,
29                element_uuid,
30                (0, 0),
31                element_name=element_name,
32                tooltip=f"{element_name}: radius = {element_entry['data']['radius']}",
33                custom_interaction=True
34            )
35
36    def event(self, element_name, element_uuid, event_data):
37        """Handle overlay click events and forward callback arguments."""
38        self.last_clicked_uuid = element_uuid
39        return self.finish_event(
40            "testscript",
41            {
42                "name" : "testname",
43                "testval": 17.00351334,
44                "element_name": element_name,
45                "element_uuid": element_uuid,
46                "mouse": event_data
47            }
48        )
49
50    def plot(self, view, element_data):
51        """Render scatter markers with gid-based element overlay mapping."""
52        # _normalized_view(...) omitted for clarity.
53        fig = mpltools.setup_plot(plt, view)
54        ax = fig.gca()
55        overlay = {}
56
57        x, y = [], []
58        for index, element_entry in enumerate(element_data):
59            radius = element_entry['data']['radius']
60            x.append(index)
61            y.append(radius)
62
63        # Key concept: gid tag links plotted markers to element UUIDs.
64        for x_value, y_value, element_entry in zip(x, y, element_data):
65            element_uuid, _element_name = self._element_metadata(element_entry)
66            scatter_kwargs = {
67                's': self.MARKER_SIZE,
68                'c': self._marker_color(element_uuid),
69                'alpha': 0.85
70            }
71            if element_uuid:
72                scatter_kwargs['gid'] = self.get_overlay_tag(element_uuid)
73
74            ax.scatter(
75                x_value,
76                y_value,
77                **scatter_kwargs
78            )
79
80        ax.set_title('Interactive Scatterplot with Element Overlay')
81        ax.set_xlabel('Index')
82        ax.set_ylabel('Radius')
83
84        svg_string = self._export_svg(fig, view)
85        self.add_all_overlay_data(element_data, overlay)
86        plt.close(fig)
87
88        return self.finish_plot(svg_string, overlay, self.RENDER_CONFIG)
89
90    gom.run_api()

Full source in example App:
AppExamples/custom_diagrams/CustomDiagramExamples/scripts/element_overlay_custom_diagram.py

Note

Optional: Extended renderer tuning (see RenderConfigToken)

Use this render_config if you want additional marker/debug/filter behavior:

from gom.api.extensions import diagrams

RCT = diagrams.SVGDiagram.RenderConfigToken

render_config = {
    RCT.CUSTOM_HASH: str(hash((tuple(x), tuple(y)))),
    RCT.DISABLE_MOUSE_EVENTS: False,
    RCT.DISABLE_TOOLTIPS: False,
    RCT.NEAREST_MARKER_SHAPE: "circle",
    RCT.NEAREST_MARKER_SIZE: 3,
    RCT.AUTO_GENERATED_OVERLAY_USE: True,
    RCT.OVERLAY_FILTER_METHOD: "string-parser",
    RCT.OVERLAY_ELEMENT_COUNT: len(x),
    RCT.OVERLAY_USE_MOUSE_POSITION: True,
    RCT.OVERLAY_EXPAND_HITBOXES: 10
}

Custom Diagram with Point Cloud Overlay

This example shows how to create an interactive custom diagram using a point cloud overlay. The advantage of this overlay type is a reduced computation time as compared to the element overlay.

This option is limited in flexibility and is only suitable for simple plots such as scatter plots, curves and polar plots, because it can only map individual points in the diagram (plus a configurable hitbox size) to an element.

Note

Quick prerequisites:

  1. The service is started and receives diagram data from custom elements.

  2. The plotted points and element_data order match one-to-one.

  3. For custom click behavior, keep custom_interaction=True on selected overlay points.

  4. In this example, only the first point uses custom_interaction=True; all other points are added without custom interaction.

Interactive Custom Diagram Example with Point Cloud Overlay
 1import gom
 2from gom import apicontribution
 3import gom.api.extensions.diagrams
 4import gom.api.extensions.diagrams.matplotlib_tools as mpltools
 5import matplotlib.pyplot as plt
 6
 7@apicontribution
 8class DiagramWithPointCloudOverlay (gom.api.extensions.diagrams.SVGDiagram):
 9
10    INTERACTION_SCRIPT = 'testscript'
11    INTERACTION_ARGS = {'name': 'testname', 'testval': 17.00351334}
12    MARKER_SIZE = 120
13    MARKER_COLOR = '#2f6fed'
14    MARKER_ALPHA = 0.5
15
16    def __init__(self):
17        """Initialize service metadata for point-cloud overlay rendering."""
18        super().__init__(id='com.zeiss.example.custom_diagrams.point_cloud_overlay',
19                         description='Interactive Custom Diagram with Point Cloud Overlay')
20
21    # Helper methods omitted for clarity:
22    # _normalized_view(...), _normalize_overlay_point(...), _export_svg(...)
23
24    def add_all_overlay_data(self, element_data, display_coords, view, overlay):
25        """Populate point-cloud overlay entries using display coordinates."""
26
27        for index, (element_entry, point_coords) in enumerate(zip(element_data, display_coords)):
28            interaction_point = self._normalize_overlay_point(point_coords, view)
29            if index == 0:
30                self.add_element_to_overlay(
31                    overlay,
32                    element_entry['uuid'],
33                    interaction_point,
34                    tooltip = element_entry['element'],
35                    # Keep custom interaction on the first point only.
36                    custom_interaction = True
37                )
38            else:
39                self.add_element_to_overlay(
40                    overlay,
41                    element_entry['uuid'],
42                    interaction_point,
43                    tooltip = element_entry['element']
44                )
45
46    def event(self, element_name, element_uuid, event_data):
47        """Handle point-overlay click events and forward callback arguments."""
48        callback_args = dict(self.INTERACTION_ARGS)
49        callback_args.update({
50            'element_name': element_name,
51            'element_uuid': element_uuid,
52            'mouse': event_data
53        })
54        return self.finish_event(self.INTERACTION_SCRIPT, callback_args)
55
56    def plot(self, view, element_data):
57        """Render scatter markers and map overlay points by display coordinates."""
58        # Key concept: use display coordinates for point-based overlay mapping.
59        fig = mpltools.setup_plot(plt, view)
60        ax = fig.gca()
61        overlay = {}
62
63        x = []
64        y = []
65        for index, element_entry in enumerate(element_data):
66            radius = element_entry['data']['radius']
67            x.append(index)
68            y.append(radius)
69
70        points = list(zip(x, y))
71        display_coords = mpltools.get_display_coords(ax, points, view)
72
73        # No gid mapping here. Overlay points are matched by display coordinates.
74        for x_value, y_value in points:
75            ax.scatter(
76                x_value,
77                y_value,
78                s=self.MARKER_SIZE,
79                c=self.MARKER_COLOR,
80                alpha=self.MARKER_ALPHA
81            )
82        ax.set_title('Interactive Scatterplot with Point Cloud Overlay')
83        ax.set_xlabel('Index')
84        ax.set_ylabel('Radius')
85
86        svg_string = self._export_svg(fig, view)
87
88        self.add_all_overlay_data(
89            element_data,
90            display_coords,
91            view,
92            overlay
93        )
94        plt.close(fig)
95
96        return self.finish_plot(svg_string, overlay)
97
98    gom.run_api()

Full source in example App:
AppExamples/custom_diagrams/CustomDiagramExamples/scripts/point_cloud_overlay_custom_diagram.py

Data Structure Examples

Element Data Structure

element_data = [
    {
        'element': gom.app.project.actual_elements['Circle 1'],                           # ZEISS INSPECT element object
        'data': {'center': [1.0, 1.0, 2.0], 'direction': [1.0, 0.0, 0.0], 'radius': 3.0}, # Element-specific data
        'type': 'SVGDiagram'                                                              # Element type identifier
    },
    {
        'element': gom.app.project.actual_elements['Circle 2'],
        'data': {'center': [2.0, 2.0, 3.0], 'direction': [0.0, 1.0, 0.0], 'radius': 4.0},
        'type': 'SVGDiagram'
    }
]

View Parameters Structure

view = {
    'width': 800,        # Canvas width in pixels
    'height': 600,       # Canvas height in pixels
    'dpi': 96.0,         # Display DPI for scaling
    'font': 12,          # Base font size
    'subplot': 0         # Partition/subplot index (0-based)
}

SVG Overlay Structure (Simplified)

overlay = {
    'element-uuid-123': {
        'element_name': 'Circle 1',
        'coordinates': [
            {
                'x': 0.0805,
                'y': 0.8900,
                'custom_interaction': True
            }
        ],
        'tooltip': 'Circle 1: radius = 3.0'
    },
    'element-uuid-456': {
        'element_name': 'Circle 2',
        'coordinates': [
            {
                'x': 0.9485,
                'y': 0.0835
            }
        ],
        'tooltip': 'Circle 2: radius = 4.0'
    }
}

In the point-cloud overlay example, custom_interaction is intentionally enabled for the first point only.

References
