Valid-Pixel Mask Concept

Valid-Pixel Mask Concept#

Introduction#

The term valid-pixel mask (or simply mask) refers to a binary bitmap that marks which pixels are in a sub-block are valid and which are not. A sub-block in a CZI document is always rectangular and cannot directly indicate invalid pixels within the rectangle. Therefore, it is not possible to represent non-rectangular images directly. The valid-pixel mask overcomes this limitation.

The concept is:

  • An additional bitonal (i.e., 1 bit per pixel) bitmap is stored with each sub-block.

  • A zero in this mask bitmap marks the corresponding pixel in the sub-block as not valid; a one marks the pixel as valid.

  • For a multi-tile composition, non-valid pixels are not rendered.

Mask in pyramids#

The immediate use case for this mask is with pyramids. In CZI, pyramids are constructed per scene, and the axis-aligned bounding boxes of scenes may overlap—as shown here:

overlapping scenes

Although tiles of different scenes do not overlap, the scenes’ axis-aligned bounding boxes do. This means the pyramid tiles overlap, and it is impossible to render a scene composite that contains the complete image data. The result looks like this:

composition without mask

Provide each scene’s pyramid tiles with a valid-pixel mask, and the composition then looks like this:

composition with mask

Data layout of the mask in CZI#

In CZI, the mask is stored in the sub-block attachment. A sub-block consists of three parts: pixel data, metadata, and an attachment (the latter two are optional). The attachment is a binary blob that can contain arbitrary data. Its format is specified in the metadata of the sub-block.

The attachment format used for the mask is called CHUNKCONTAINER. It subdivides the attachment into chunks; each chunk has a type (GUID) and a length (Int). The mask is stored in a chunk of type VALIDPIXELMASK.

The memory layout of a CHUNKCONTAINER is as follows:

Offset

Type

Purpose

0

GUID

Identifies the type of the payload

16

Int

Size of payload

20 ... 20+size

Byte[]

The first chunk (payload)

20+size

GUID

(Optionally) identifies the type of the next payload

20+size+16

Int

Size of payload

20+size+20

Byte[]

The second chunk (payload)

A chunk starts with a GUID that identifies the payload type, followed by an integer giving the size of the immediately following payload. If there is a second chunk, it follows directly after the first payload (again: GUID, size, payload).

The size of the container is implicitly known (the container occupies the attachment), and the total size is used to terminate chunk enumeration. The last chunk has been reached when the computed offset of the next chunk is greater than or equal to the attachment size. Enumeration proceeds as follows (assuming the total size is known):

  1. Read chunk header (GUID + Int size).

  2. Compute the offset of the next chunk (current offset + 20 + payload size).

  3. If the next offset ≥ total size of the attachment → stop.

  4. Go to step 1.

The GUID that identifies the ValidPixelMask is {CBE3EA67-5BFC-492B-A16A-ECE378031448}.

The payload layout of a ValidPixelMask chunk is:

Offset

Type

Name

Comment

0

Int

width

Width, in pixels.

4

Int

height

Height, in pixels.

8

Int

representation_type = 0

The following layout applies only when representation_type = 0.

12

Int

stride

Line length in bytes.

16 ... 16+stride-1

Byte[]

First line of mask data (bitonal bitmap)

(16+stride) ... (16 + stride * height - 1)

Byte[]

Remaining lines of mask (up to height)

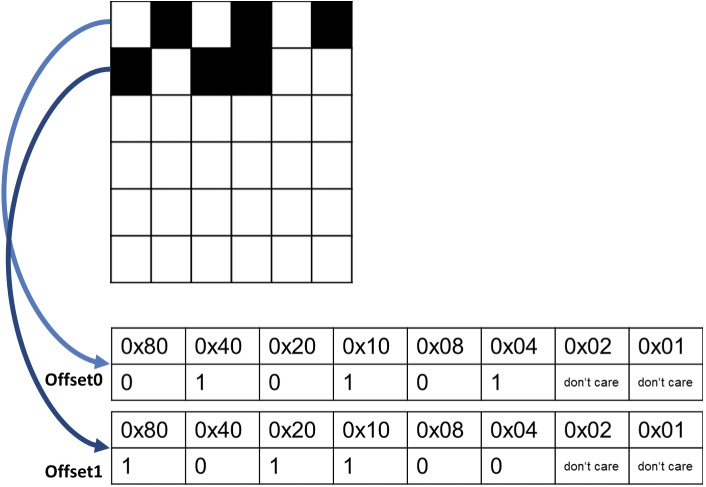

In the bitonal bitmap representation, the leftmost pixel in each byte is the most significant bit, as depicted here:

memory layout of a bitonal bitmap

Defining the attachment format in metadata#

In the sub-block metadata, the attachment format is defined using the DataFormat element inside the AttachmentSchema section. For a chunk container (which may contain a valid-pixel mask), the value must be CHUNKCONTAINER (case-sensitive):

<METADATA>
  <AttachmentSchema>
    <DataFormat>CHUNKCONTAINER</DataFormat>
  </AttachmentSchema>
</METADATA>

Mask-support in libCZI#

libCZI has support for accessing the valid-pixel mask of a sub-block. And the compositors are capable of using the mask when rendering multi-tile compositions.

E.g., for the ISingleChannelTileAccessor interface, in the respective Options structure, mask support can be enabled by setting the maskAware member to true. If the sub-blocks have a valid-pixel mask, it will be used when rendering the tile. Note that maskAware is false by default, so mask support must be explicitly enabled. Operation with a sub-block cache is also supported. However, there is one subtlety: If a sub-block is cached (by a render-operation of the accessor), the mask is only cached if maskAware is true (for this operation). If maskAware is false, the sub-block is cached without the mask. If later a render-operation is performed with maskAware set to true, the sub-block (from cache) is treated as if it has no mask.

Resolution protocol for ill-formed masks#

The mask has to have the same width and height as the sub-block it belongs to. If this is not the case, libCZI applies the following protocol:

  1. Mask is larger than bitmap: The surplus pixels are ignored (cropped).

  2. Mask is smaller than bitmap: The mask is expanded by adding non-valid pixels (zeros) to the right and/or bottom.

Note that a mask is strictly optional. If no mask is present, the sub-block is treated as “all pixels are valid”.
