binary layout of the blob

For the blob which ends up in blob-storage, the enum "DataTypes" is determing the binary layout. There following types are defined:

DataType enumeration	type	description
ZERO=0	special case: no blob	this data type is indicating: there is no blob, this tile is to be regarded as "all black"
UNCOMPRESSED_BITMAP=1	uncompressed 2D-bitmap
JPGXRCOMPRESSED_BITMAP=2	JPG-XR-compressed 2D-bitmap
ZSTD0COMPRESSED_BITMAP	2D-bitmap compressed with 'zstd0' method	(to be done)
ZSTD1COMPRESSED_BITMAP	2D-bitmap compressed with 'zstd1' method	(to be done)
UNCOMPRESSED_BRICK=32	uncompressed 3D-bitmap	(to be done)

The bitmap is sufficiently described with the structure 'TileBlobInfo'. This information must be sufficient to reconstruct the bitmap from the blob.

Uncompressed Bitmap

An uncompressed bitmap is stored with the following conventions:

The lines are stored from top to bottom.
The stride is exactly equal to pixelWidth times size-of-a-pixel in bytes. I.e. between consecutive lines, there is not unused data.
The correct size of the blob is therefore size-of-line times pixelHeight. If the blob is larger, then the surplus data is to be ignored. If it is shorter, then the missing data is to treated as zeroes.

JPGXR compressed Bitmap

The blob contaings a valid Jpeg-XR aka HDP-file (ISO/IEC 29199-2). The blob is suitable for being decompressed using the Windows WIC-WmpImageCodec.

Uncompressed Brick

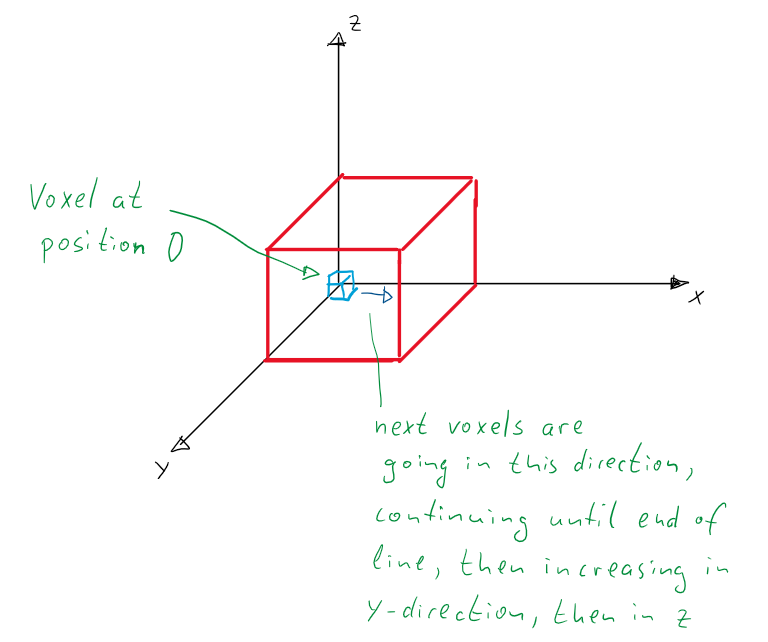

The binary layout of an uncompressed brick is as depicted here:

binary layout of brick

The first voxel is at the left-front-lower position, the next is then to the right of it. At the end of the line, the next voxel is then at the left side and adds one unit in y-direction. If the last line is reached, it starts again at the left-front-lower position and adds one unit in z-direction.
